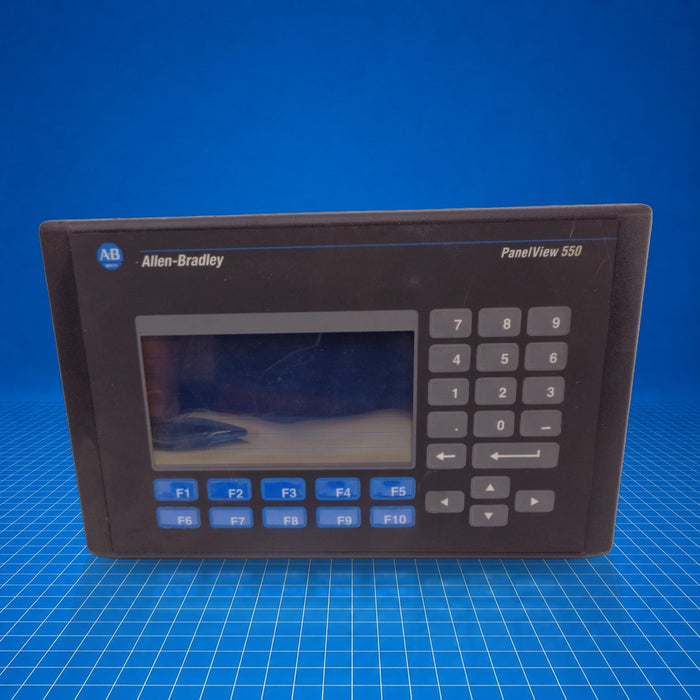

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2711-B5A1 Allen-Bradley
Original price
$2,860.00
-
Original price
$3,135.00
Original price
$3,135.00
$2,860.00
-
$3,135.00
Current price
$3,135.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2711-B5A1 is a key/model in the Allen-Bradley PanelView Standard 550 HMI family. It combines a 5.5-inch monochrome LCD display with both keypad and touchscreen input and provides Remote I/O communication plus an RS-232 printer port. Commonly deployed in small-scale automation systems, it enables machine operators, maintenance technicians, and control engineers to monitor and control local processes with basic graphical feedback. Being part of the PanelView 550 series, the 2711-B5A1 fits into legacy industrial control architectures where simple human-machine interaction is required.
Best Suited For
- Local machine-level monitoring and control
- Small process visualization with minimalist graphics
- Retrofit installations using Remote I/O networks
- Printer output for alarm or event logging via RS-232
Display size
5.5 in.
Display resolution
256 × 128
Memory (Runtime / Non-volatile)
170 KB / 240 KB
Comm ports
Remote I/O; RS-232 (printer)
Power input
85-264 V AC (47-63 Hz); 24 V DC option (L1 series)
Technical Specifications
I/O & Electrical
Memory - non-volatile
240 KB
Memory - runtime (RAM)
170 KB
Communication & Power
Communication ports
Remote I/O; RS-232 (printer)
Input voltage range
85-264 V AC, 47-63 Hz (AC)
DC input option (L1)
24 V DC only
Physical & Environmental
Display type
Monochrome LCD (blue-mode)
Display area
120 × 60 mm (4.75 × 2.38 in.)
Touch cells
128; 1 million actuations
Function keys
10 (F1-F10)
Dimensions - cut-out (H×W)
144 × 243 mm (5.66 × 9.55 in.)
Dimensions - overall (H×W×D)
167 × 266 × 106 mm (6.57 × 10.47 × 4.17 in.)
Weight
2.7 lb (1.25 kg)
Operating temperature
0 to 55 °C
Non-operating temperature
-20 to 70 °C
Relative humidity
5-95 % non-condensing (0-30 °C)
Operating shock
30 g
Non-operating shock
50 g
Operating vibration
2 g to 2000 Hz
Altitude
to 2000 m
