2711-B5A5 Allen-Bradley

Name: 2711-B5A5 Allen-Bradley
Brand: Allen Bradley
SKU: 2711-B5A5
Price: 1372.5 USD
Availability: InStock

$1,372.50 - $2,792.23

$1,372.50

$1,372.50 - $2,792.23

$1,372.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

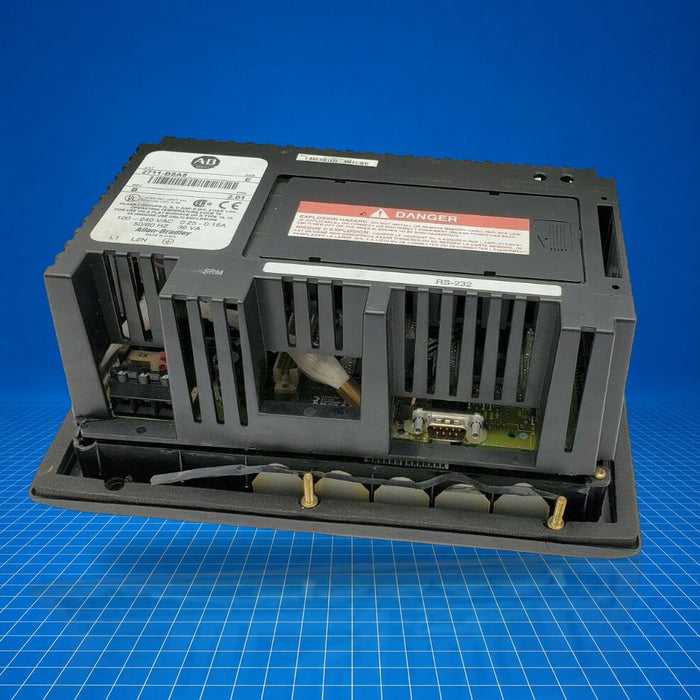

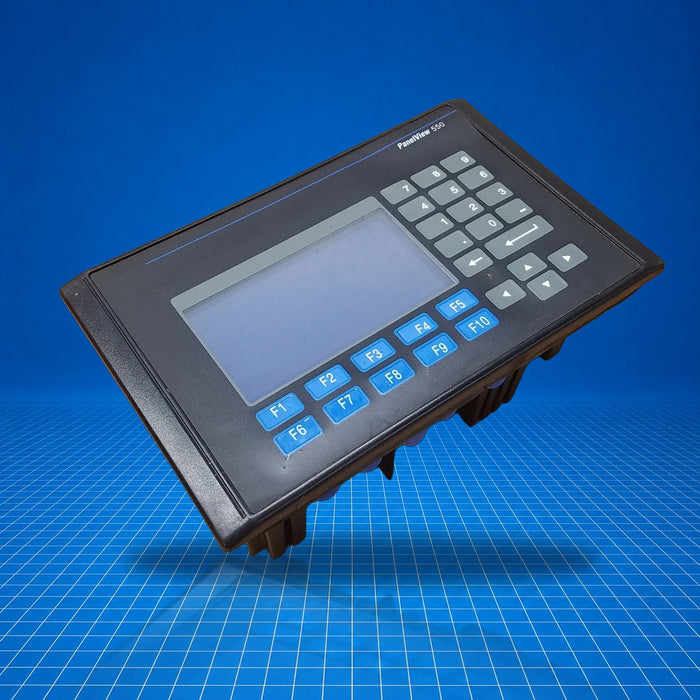

The 2711-B5A5 is a PanelView 550 Standard operator terminal from Allen-Bradley, used to provide operator interface in industrial control systems. Featuring a 5.5-inch monochrome blue-mode LCD with both keypad and touchscreen input, it executes HMI applications using SLC-500 or PLC controllers via embedded DH-485 and RS-232 (DF1) serial communications. The terminal is typically panel-mounted and suits applications such as machine/operator interaction, alarm and recipe handling, and data monitoring in factory automation environments. Part number 2711-B5A5 is discontinued but remains in use for maintenance and legacy support.

Best Suited For

Panel-mount machine control interface
Legacy DH-485/RS-232 systems
Alarm, recipe, trend display in small HMI applications
Replacement in existing PanelView 550 installations

Display

5.5-in monochrome LCD (blue mode)

Input

Keypad (10 F-keys) + touchscreen

Memory

170 KB runtime RAM; 240 KB non-volatile

Comm ports

DH-485 and RS-232 (DF1)

Power input

85-264 V AC, 47-63 Hz

Technical Specifications

I/O & Electrical

Display resolution

256 × 128 pixels

Input voltage

85-264 V AC, 47-63 Hz

Power dissipation

≈20 W (≈69 BTU/h)

Application memory RAM

170 KB

Non-volatile memory

240 KB (supports ATA card expansion 2 MB-32 MB)

Communication & Power

Communication ports

DH-485 and RS-232 (DF1)

Backlight

LED, 100 000 h life

Physical & Environmental

Display area

120 × 60 mm (4.75 × 2.38 in)

Keypad function keys

10 (F1-F10), touchscreen 1 million actuations

Operating temperature

≈32 to 131 °F (0 to 55 °C)

Storage temperature

≈-4 to 158 °F (-20 to 70 °C)

Relative humidity

5-95 % up to 30 °C

Mounting altitude max

200 m

Enclosure types

NEMA 12, 13, 4X; IEC IP54 or IP65

Weight

2.50 lbs (1.13 kg)

Certifications

CSA Class 1 Div 2UL508UL1604

Certifications include CSA 22.2 No. 142 & No. 213 Class 1 Div 2 (Groups A-D, T4), and UL508 and UL1604 Class 1 Div 2 (Groups A-D, T4) per distributor listing.
