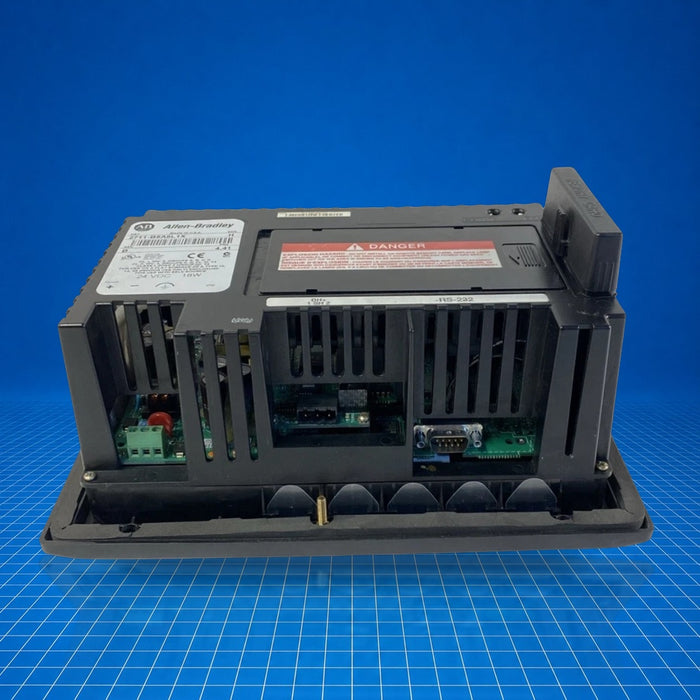

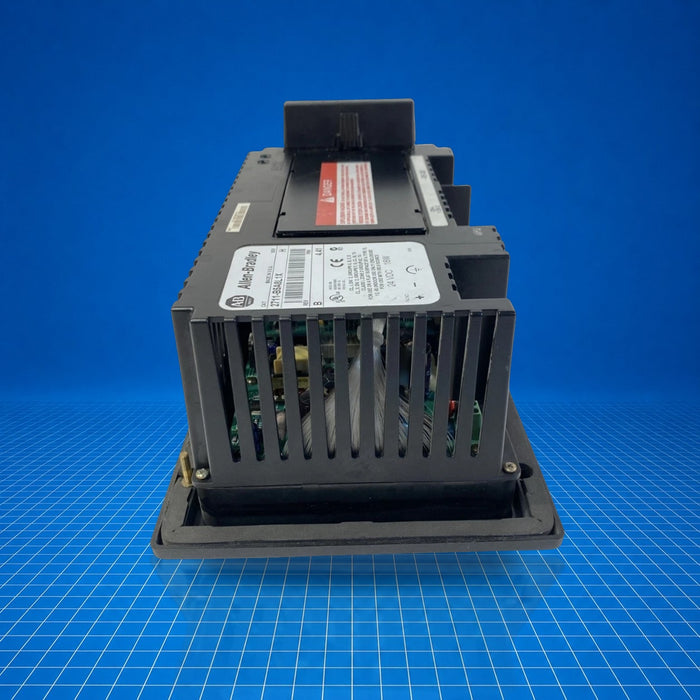

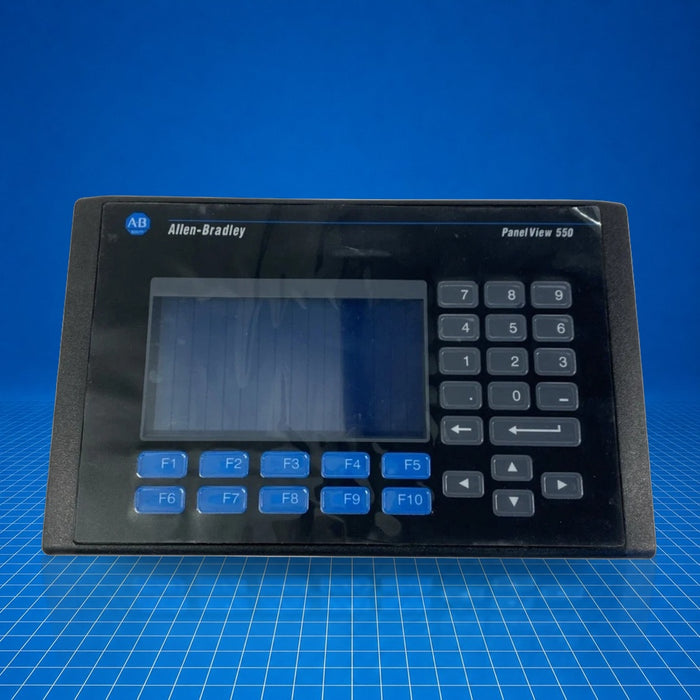

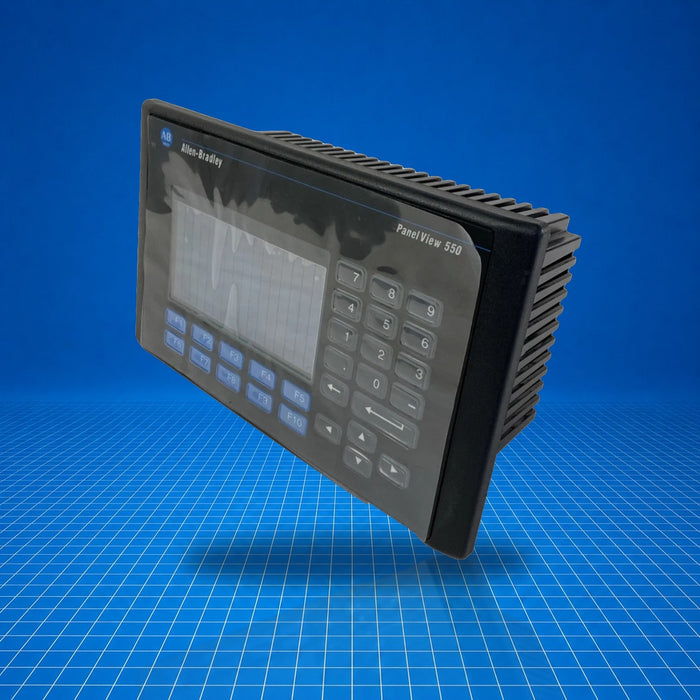

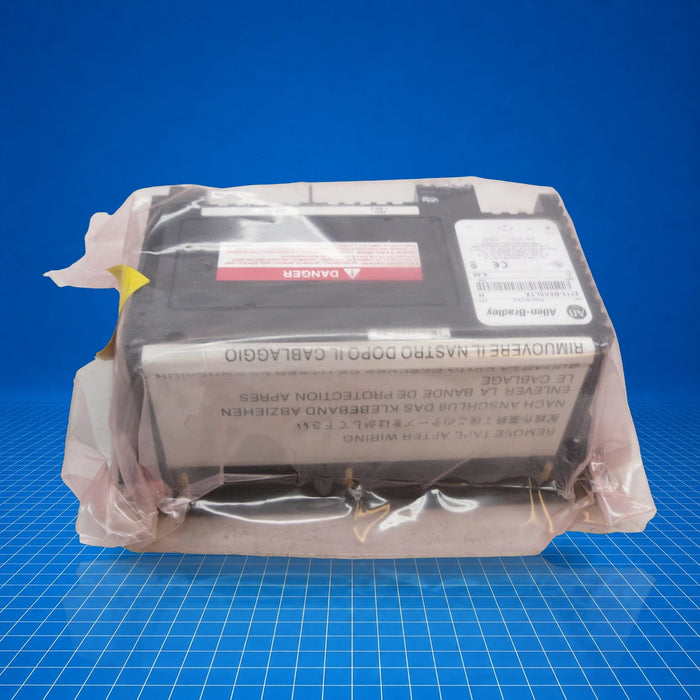

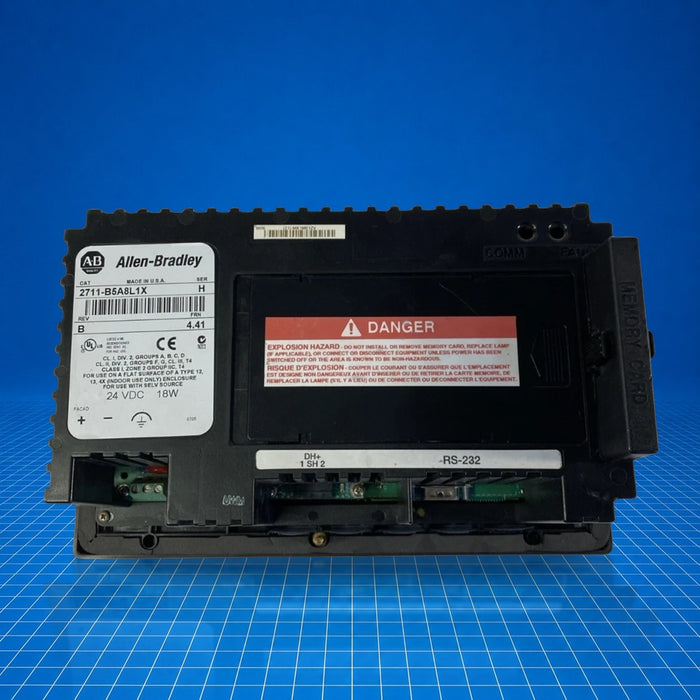

Product image is representative; revision or series may vary.
Contact us to request a specific version.

2711-B5A8L1 Allen-Bradley

Name: 2711-B5A8L1 Allen-Bradley
Brand: Allen Bradley
SKU: 2711-B5A8L1
Price: 5099.98 USD
Availability: InStock

$0.00 - $5,099.98

$5,099.98

$0.00 - $5,099.98

$5,099.98

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 2711-B5A8L1 is an Allen-Bradley PanelView 550 Standard Operator Terminal used as a Human-Machine Interface in industrial control systems. Part of the Bulletin 2711 PanelView Standard family, it provides operator interaction via a 5.5-inch monochrome LCD display with both keypad and touchscreen input. It interfaces with controllers using Data Highway Plus and includes an RS-232 printer port. Typically applied in legacy control panels, machine operator stations, and retrofit applications requiring basic visualization and alarm printing. 2711-B5A8L1 is the DC-powered variant of the B5A8 model.

Best Suited For

Legacy PanelView Standard operator stations
Basic machine visualization with alarm-print capability
Systems using Data Highway Plus networks
Retrofit in existing control panels with 24 V DC systems

Display

5.5 in monochrome LCD, 256 × 128

Input

Keypad (10 F-keys) plus touch (1 M actuations)

Power

18…32 V DC

Comm ports

DH+ and RS-232

Memory

170 KB runtime; 240 KB non-volatile

Technical Specifications

I/O & Electrical

Input voltage

18…32 V DC (24 V DC nominal)

Communication ports

Data Highway Plus; RS-232 printer

Communication & Power

Power consumption

18 W max (0.75 A at 24 V DC)

Physical & Environmental

Display size & resolution

5.5 in; 256 × 128; display area 120 × 60 mm

Backlight

LED, 100 000 h life

Keypad & touchscreen

10 function keys; touch cells: 128; actuations: 1 M

Memory

170 KB application runtime; 240 KB non-volatile RAM

Weight

1.2 kg (2.7 lb)

Dimensions (HxWxD)

167 × 266 × 106 mm (6.57 × 10.47 × 4.17 in)
