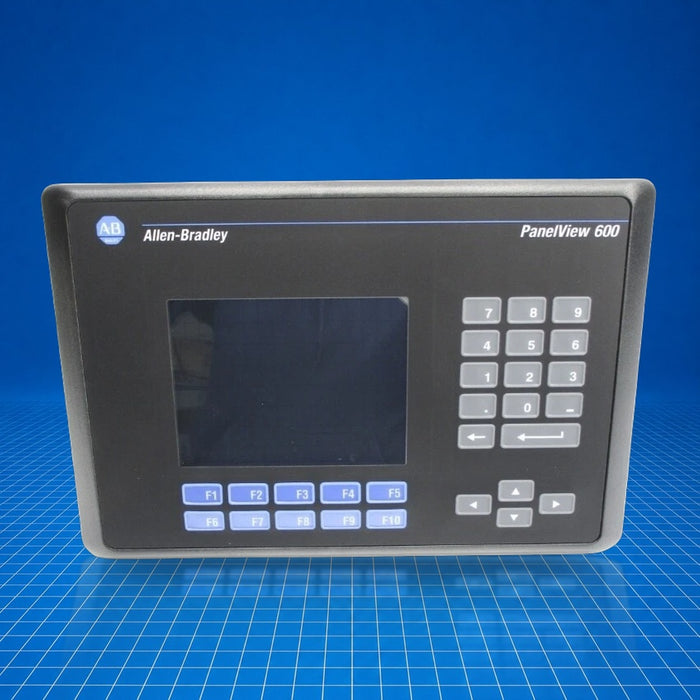

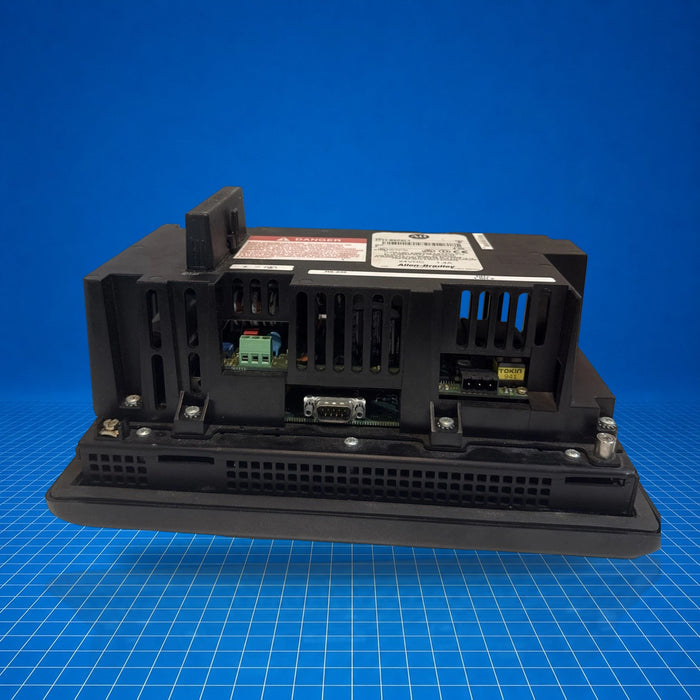

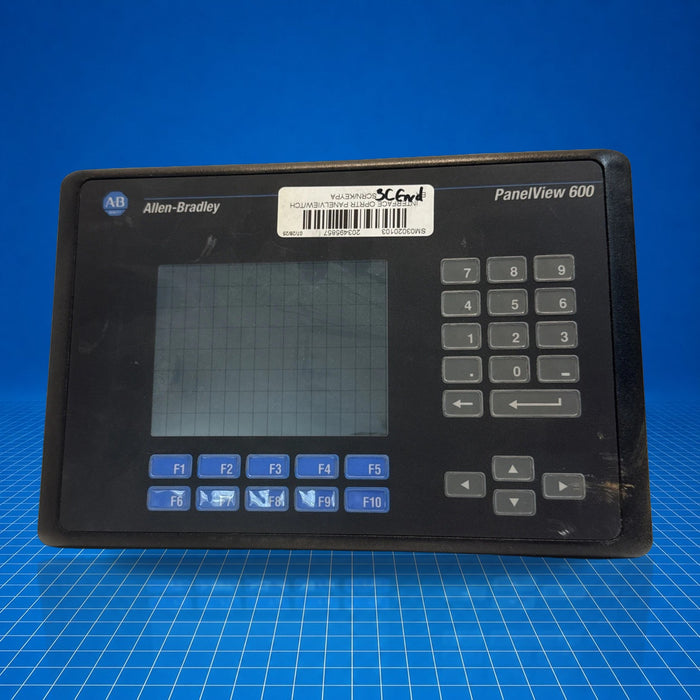

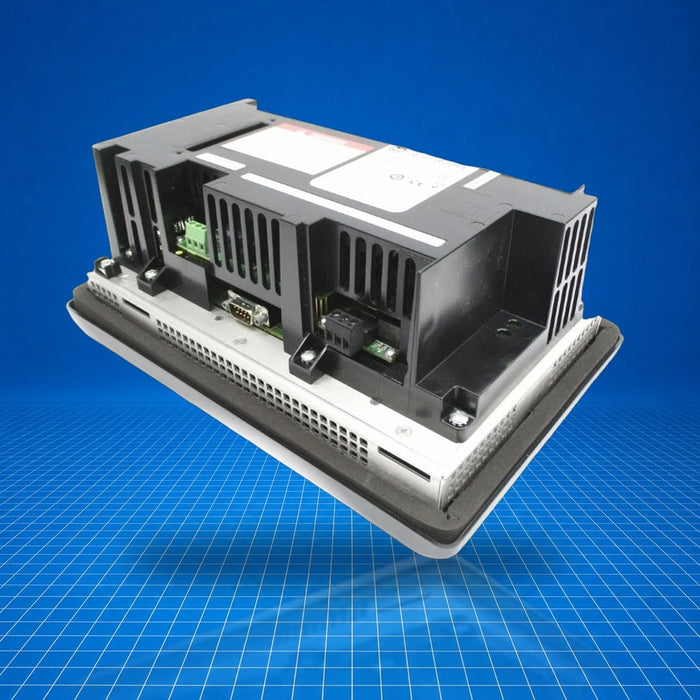

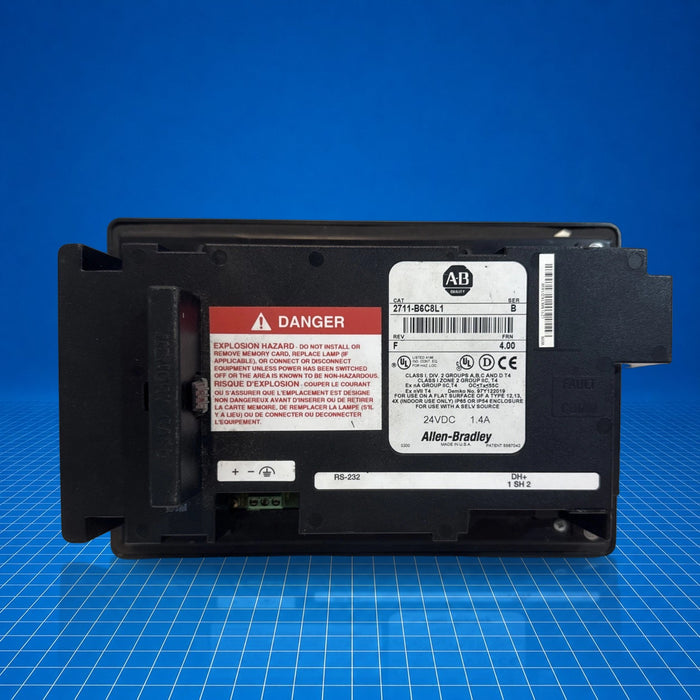

2711-B6C8L1 Allen-Bradley
Original price
$1,262.25
-
Original price
$7,080.00
Original price
$1,262.25
$1,262.25
-
$7,080.00
Current price
$1,262.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2711-B6C8L1 is an Allen-Bradley PanelView 600 standard operator interface terminal. It belongs to the PanelView 600 family and provides human-machine interface (HMI) capabilities via both touchscreen and keypad. In a control system, this HMI enables operators to monitor processes and interact with devices using Data Highway Plus and RS-232 printer communication. Typical industrial applications include machine-level control panels, legacy PLC system integration, and hazardous environment operator stations where discontinued parts are still maintained.
Best Suited For
- PanelView 600 DH+ network environments
- Retrofit or replacement in legacy machine controls
- On-machine control stations
- Applications requiring keypad and touch input combination
Display size
5 in.
Memory (nonvolatile/application)
240 KB / 170 KB
Input power
85-264 V AC
Communication ports
DH+ and RS-232 Printer
Input type
Keypad and touchscreen
Technical Specifications
I/O & Electrical
Input power
85-264 V AC, 47-63 Hz
Memory (nonvolatile)
240 KB
Runtime application memory
170 KB
Communication & Power
Communication ports
Data Highway Plus (DH+) and RS-232 Printer
Input type
Keypad / Touchscreen
Physical & Environmental
Display resolution
320 x 234
Display area
115 x 86 mm (4.54 x 3.4 in.)
Weight
6.00 lbs (2.72 kg)
Backlight replacement
2711-NL5
