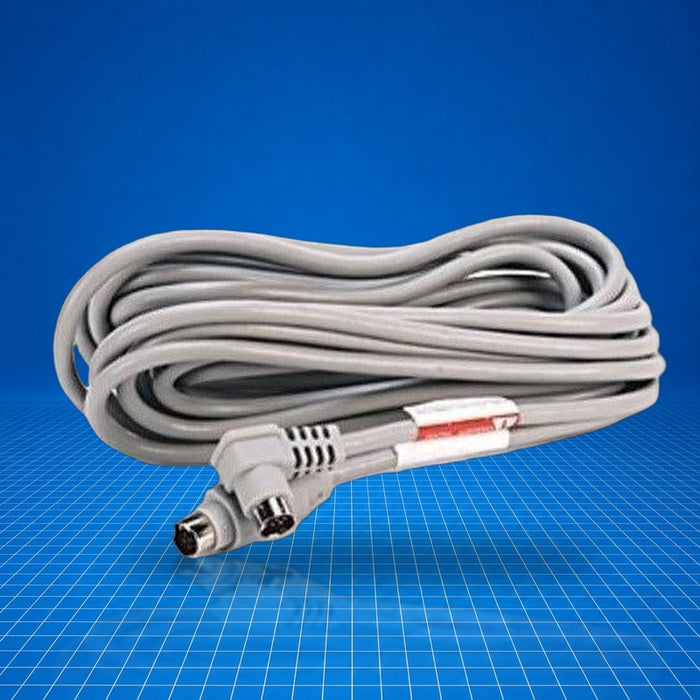

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2711-CBL-HM05 Allen-Bradley
Original price
$328.47
-
Original price
$1,369.50
Original price
$328.47
$328.47
-
$1,369.50
Current price
$328.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2711-CBL-HM05 is a 5 m (16.4 ft) RS-232 operating cable within the Allen-Bradley PanelView Standard family. It connects an 8-pin mini-DIN RS-232 port on PanelView Micro (such as PanelView 300 Micro) to an 8-pin mini-DIN RS-232 interface on MicroLogix controllers. In control systems, it serves as a communication link for DF1 or DH-485 protocols between operator terminals and PLCs. It is typically used where fixed-length cabling is required for human-machine interface connections.
Best Suited For
- Connecting PanelView Micro terminals to MicroLogix 1000/1100/1200/1400/1500LSP
- RS-232 DF1 communication between PanelView terminals and controllers
- DF1 or DH-485 interfacing where 5 m cable length is appropriate
- PanelView 300 Micro installations requiring fixed-length operating cable
Length
5 m (16.4 ft)
Connector type
8-pin mini-DIN to 8-pin mini-DIN
Protocol support
RS-232 (DF1 or DH-485)
Status
Discontinued (since December 30 2024)
Technical Specifications
Communication & Power
Communication protocol
RS-232 (DF1 or DH-485)
Physical & Environmental
Cable length
5 m (16.4 ft)
