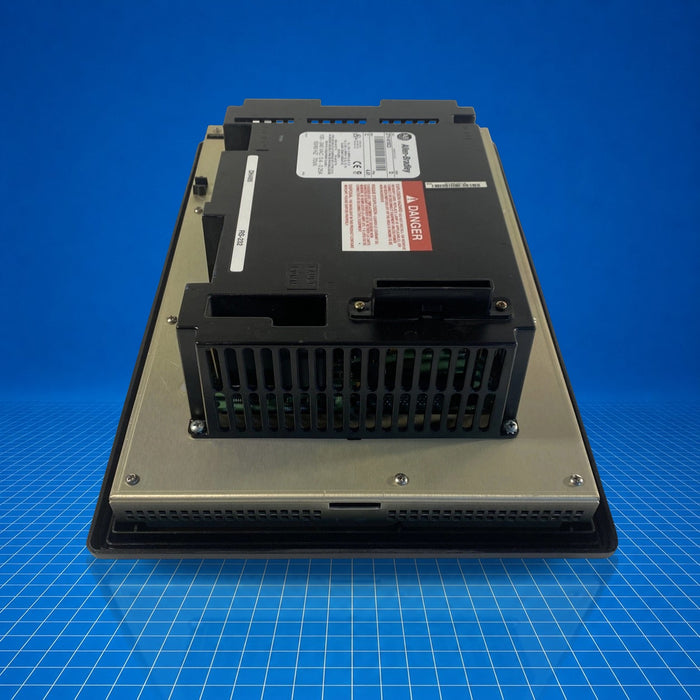

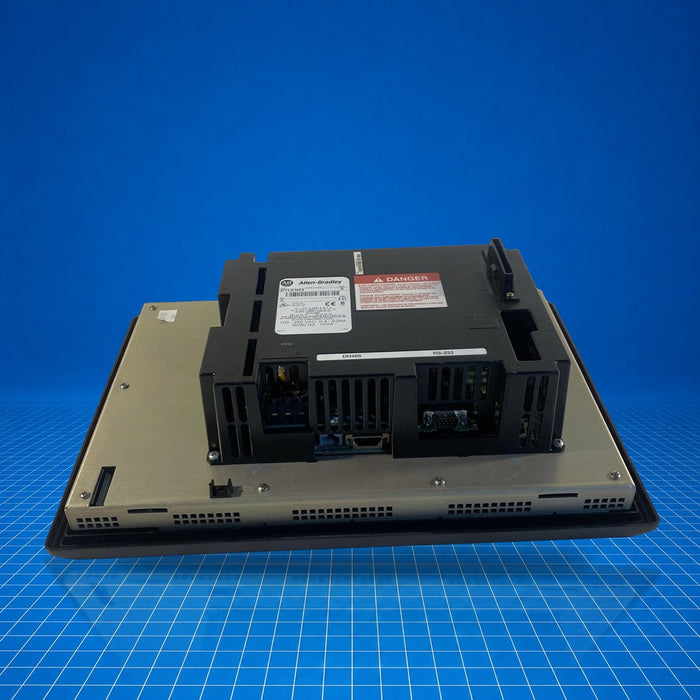

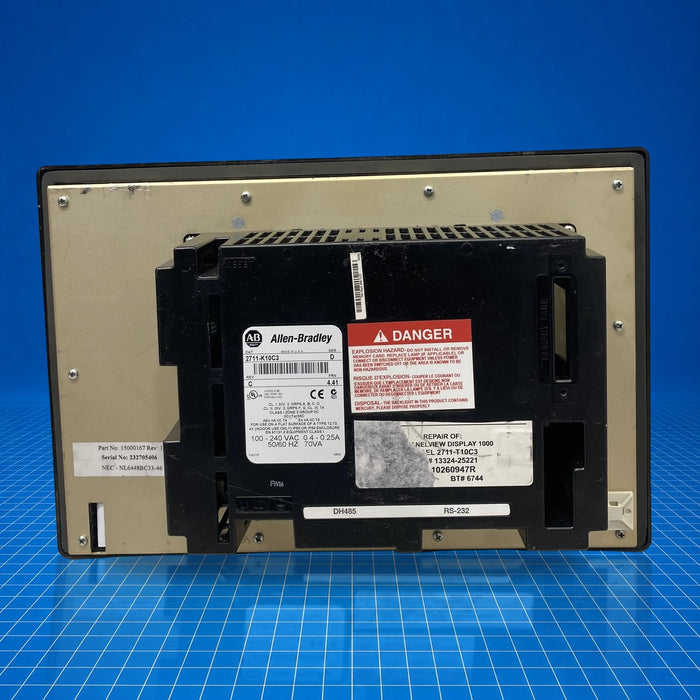

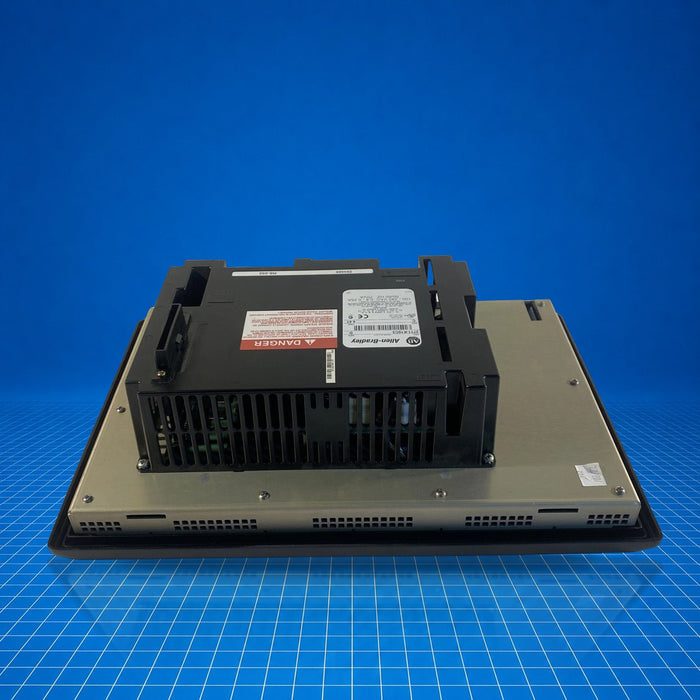

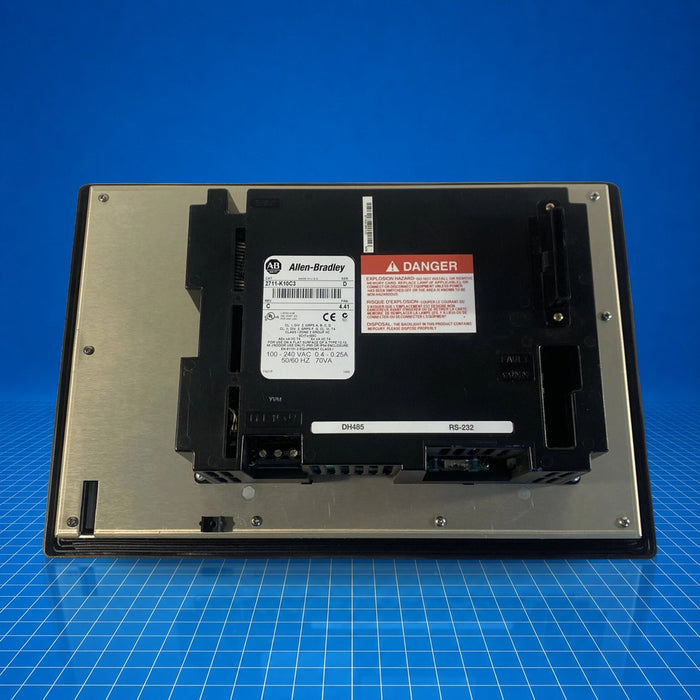

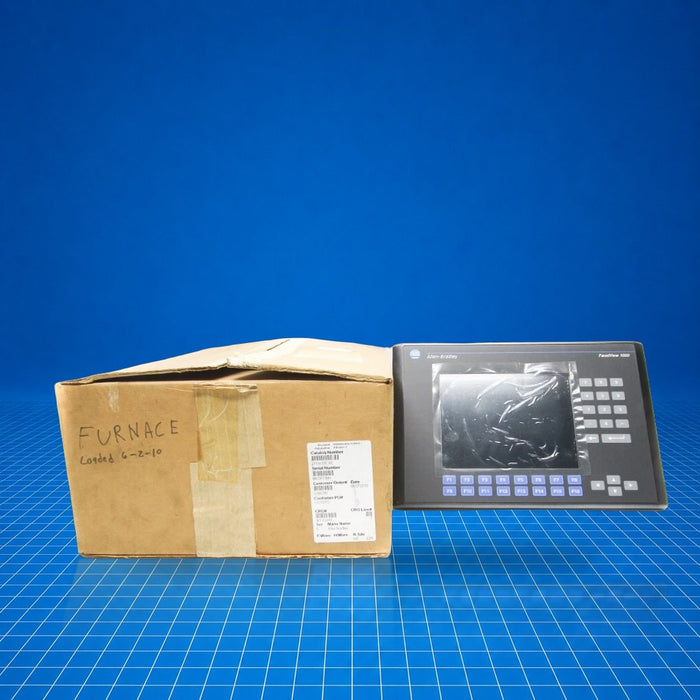

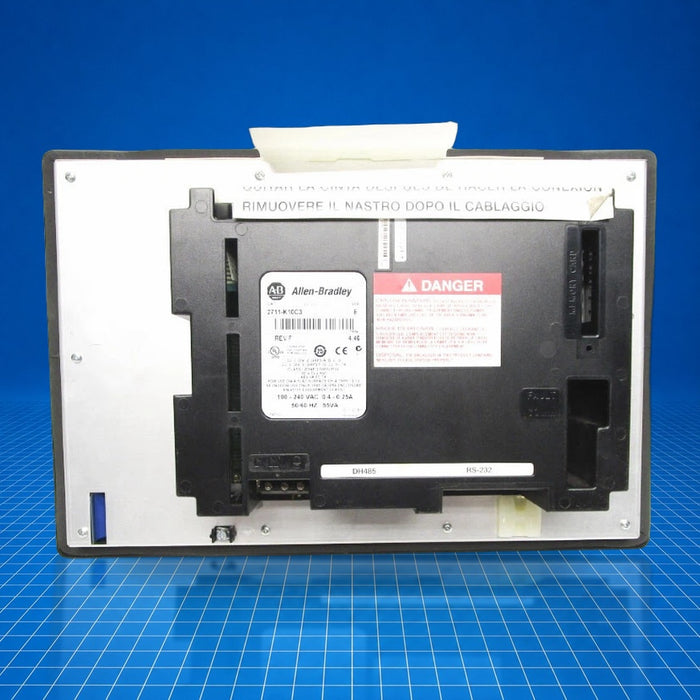

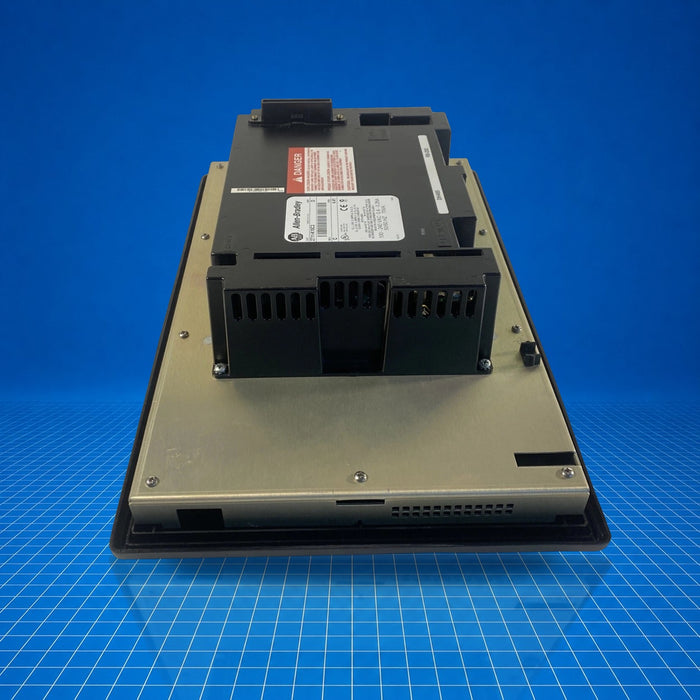

2711-K10C3 Allen-Bradley
Original price
$3,297.80
-
Original price
$4,353.83
Original price
$3,297.80
$3,297.80
-
$4,353.83
Current price
$3,297.80
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 2711-K10C3 is a PanelView 1000 Standard operator interface terminal featuring a 10.1-inch color display with keypad input. It communicates via DH-485 and includes an RS-232 printer port. The module operates on 85-264 VAC power and provides 1008 KB nonvolatile and 310 KB RAM memory for application storage. Typically deployed in machine-level control applications, it allows operators to monitor statuses, enter commands, and print logs directly at the panel. 2711-K10C3 integrates into legacy DH-485 networks and remote I/O architectures.
Best Suited For
- DH-485 networked control systems
- Panel-mounted operator input for discrete machines
- Integration with RS-232 printers for local logging
- Retrofit of legacy PanelView 1000 systems
Display size
10 in.
Display color
Color
Input power
85-264 VAC
Memory (Nv/RAM)
1008 KB / 310 KB
Communication
DH-485 + RS-232 (printer)
Technical Specifications
I/O & Electrical
Input power
85…264 V AC
Memory (nonvolatile / RAM)
1008 KB / 310 KB
Communication & Power
Communication ports
DH-485; RS-232 (printer)
Display type
Color, 10-in.
Physical & Environmental
Enclosure rating
NEMA Type 12/13 or 4X
Operator input
Keypad
Product status
Discontinued/Obsolete
