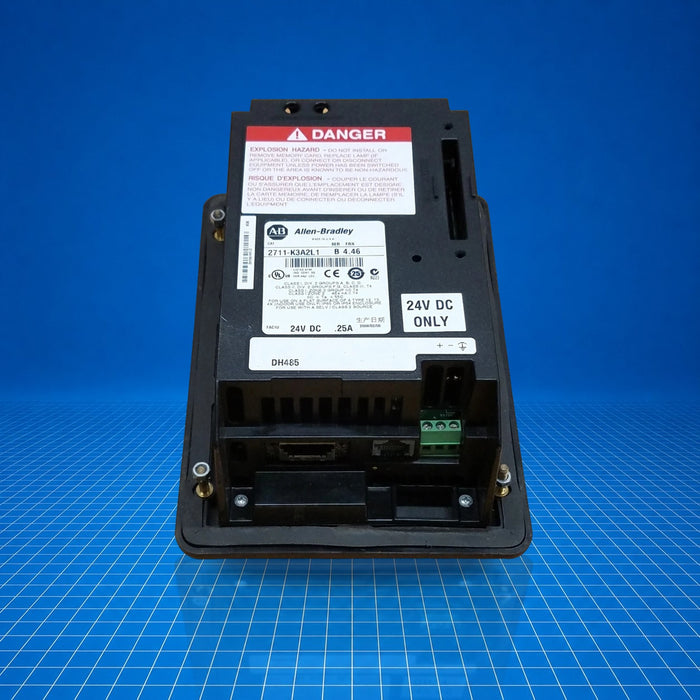

2711-K3A2L1 Allen-Bradley
Original price
$375.00
-
Original price
$2,970.00
Original price
$375.00
$375.00
-
$2,970.00
Current price
$375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

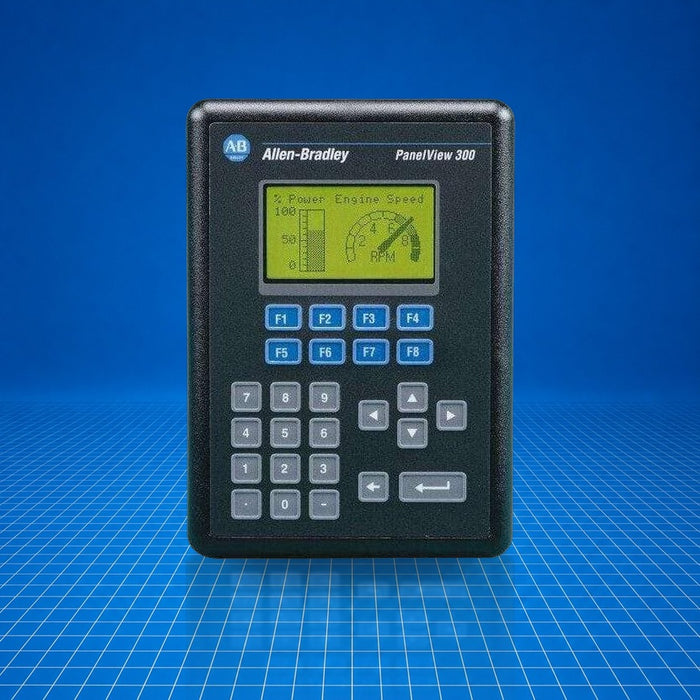

The 2711-K3A2L1 is an Allen-Bradley PanelView 300 Standard Operator Terminal. It serves as a human-machine interface (HMI) within Allen-Bradley control systems, providing a compact monochrome keypad display for operator interaction with programmable controllers. Typically used in light-to-medium industrial applications where simple data display and control input suffice, it connects via DH-485 protocol to devices such as SLC or MicroLogix series. Typical uses include local machine monitoring, status indication, parameter entry, and basic alarm acknowledgment. Part number 2711-K3A2L1.
Best Suited For
- Local machine control interface
- MicroLogix and SLC-based systems using DH-485
- Compact OEM panels with limited space
- Basic data entry and status monitoring
Display
3 in. monochrome 128 x 64
Memory (runtime / non-volatile)
170 KB / 240 KB
Input voltage
18-32 V DC
Interface
Keypad, DH-485
Technical Specifications
I/O & Electrical
Input voltage
18-32 V DC
Power consumption
max 10 W (0.42 A at 24 V DC)
Communication & Power
Communication port
DH-485
Physical & Environmental
Display size / resolution
3 in. monochrome, 128 × 64 pixels
Memory (runtime)
170 KB
Memory (non-volatile)
240 KB
Enclosure rating
NEMA 12/13, 4X (indoor), IP54, IP65
Operating temperature
0 °C to 55 °C
Storage temperature
-20 °C to 85 °C
Weight
1.00 lb (0.45 kg)
Dimensions (W×H×D)
140 × 197 × 82 mm (5.53 × 7.76 × 3.21 in.)
