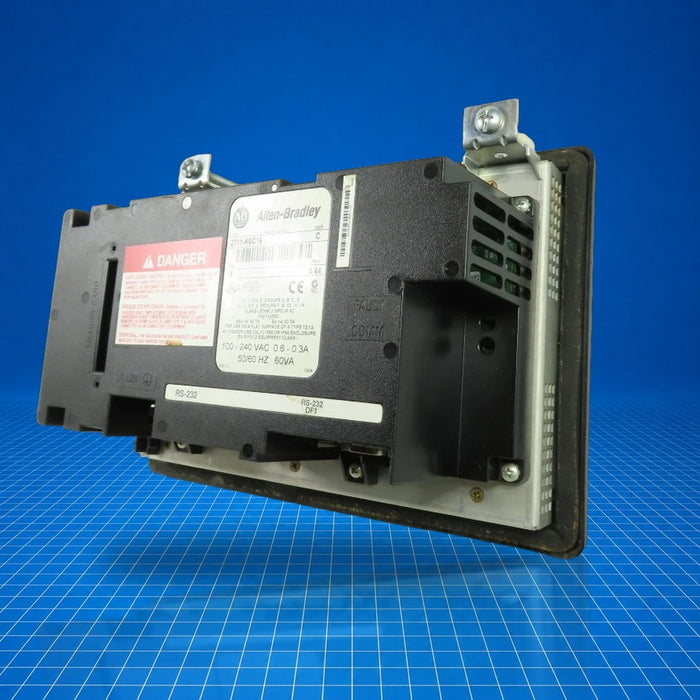

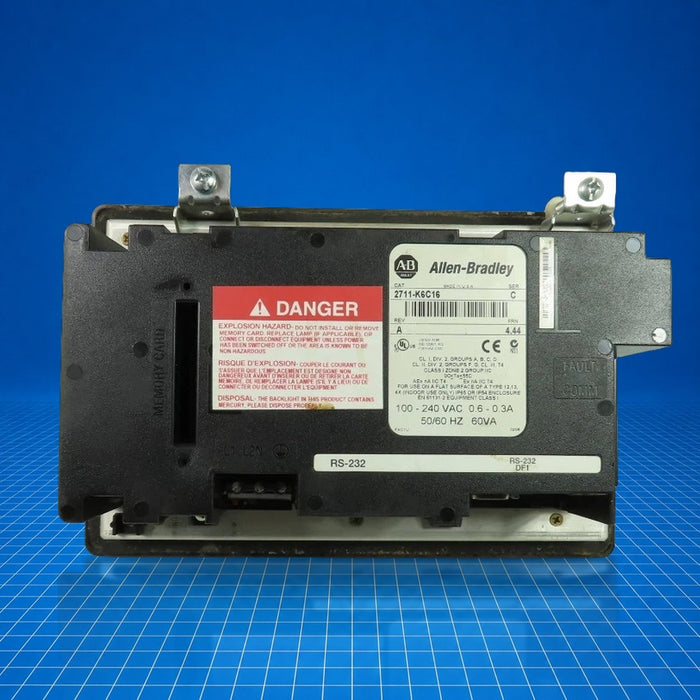

2711-K6C16 Allen-Bradley
Original price
$0.00
-
Original price
$2,859.98
Original price
$2,859.98
$0.00
-
$2,859.98
Current price
$2,859.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 2711-K6C16 is a PanelView 600 Standard operator terminal designed for human-machine interface in industrial control systems. It features a 5-inch color active-matrix TFT display with keypad input and dual embedded RS-232 ports supporting DF1 and printer/download functions. The unit runs operator applications stored in nonvolatile memory and enables control station interaction in manufacturing machinery, batch systems, or discrete automation. 2711-K6C16 is part of the PanelView Standard family of operator terminals.
Best Suited For
- Local machine operator interface in legacy Rockwell automation systems
- Applications requiring DF1 serial communication
- Situations needing printer or program download via RS-232
- Environments tolerant of discontinued spare-part sourcing
Display size
5 in.
Display resolution
320 × 234
Input voltage
85…264 V AC
Function keys
10
Communication
RS-232 (DF1) + RS-232 (printer)
Technical Specifications
I/O & Electrical
Input voltage
85…264 V AC
Input frequency
47…63 Hz
Communication & Power
Communication ports
RS-232 (DF1); RS-232 (printer/download)
Input type
Keypad
Memory (nonvolatile/RAM)
240 KB / 170 KB
Physical & Environmental
Display type
Color active-matrix TFT
Display area
115 × 86 mm (4.54 × 3.4 in.)
Backlight life
50,000 hr half-life at 25 °C
Enclosure rating
NEMA 12/13, 4X (indoor), IP54, IP65
Panel cutout (H × W)
167 mm × 264 mm (6.57 in. × 10.39 in.)
Overall dimensions (H × W × D)
192 mm × 290 mm × 116 mm (7.55 in. × 11.40 in. × 4.57 in.)
Mounted depth
91 mm (3.60 in.)
Weight
5.50 lbs (2.49 kg)
