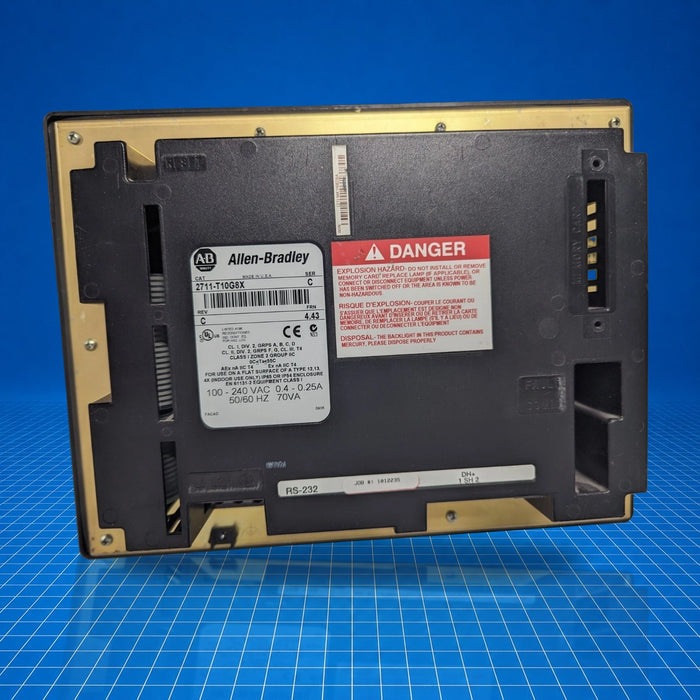

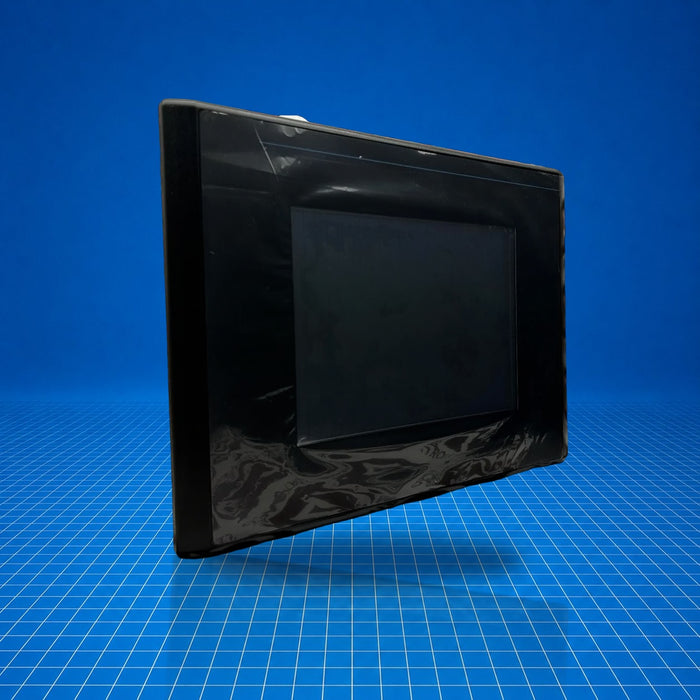

2711-T10G8 Allen-Bradley
Original price
$1,659.98
-
Original price
$3,600.00
Original price
$1,659.98
$1,659.98
-
$3,600.00
Current price
$1,659.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Rockwell Automation / Allen‑Bradley |
| Product Line | PanelView 1000 Standard |
| Part Number | 2711‑T10G8 |
| Display Size | 10.1 in (10.4" panel) |
| Display Type / Color | Grayscale TFT, 4‑shade active‑matrix |
| Resolution | 640 × 480 pixels |
| Display Area (WxH) | 211 × 158 mm (8.3 × 6.2 in) |
| Touchscreen | Resistive; 384 touch cells (24 × 16) |
| Backlight Life | 100,000 hours |
| Application Memory | 1008 KB |
| Non‑volatile Memory | 256 KB |
| Communication Ports | Data Highway Plus (DH+) and RS‑232 printer port |
| Input Voltage | 85–264 V AC, 47–63 Hz |
| Operating Temperature | 0…55 °C (32…131 °F) |
| Weight | ≈ 6.00 lb (2.72 kg) |
| Dimensions (HxWxD) | 282 × 370 × 112 mm (11.11 × 14.58 × 4.40 in) |
| Heat Dissipation | 39 W (132 BTU/hr) |
| Enclosure Rating | NEMA Type 12/13 or 4X |
| Lifecycle Status | Discontinued / Obsolete |
The 2711‑T10G8 is an Allen‑Bradley PanelView 1000 Standard grayscale touchscreen operator terminal designed for industrial human‑machine interface applications. With a 10.1‑inch active‑matrix resistive grayscale display, DH+ and RS‑232 printer connectivity, and wide 85–264 V AC power compatibility, it integrates smoothly with legacy Allen‑Bradley systems like PLC‑5 and SLC‑500 using PanelBuilder 32. Commonly used for machine control, data display, and alarm printing in manufacturing environments, this operator interface delivers dependable performance in rugged settings.
