2711-T5A16L1 Allen-Bradley
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

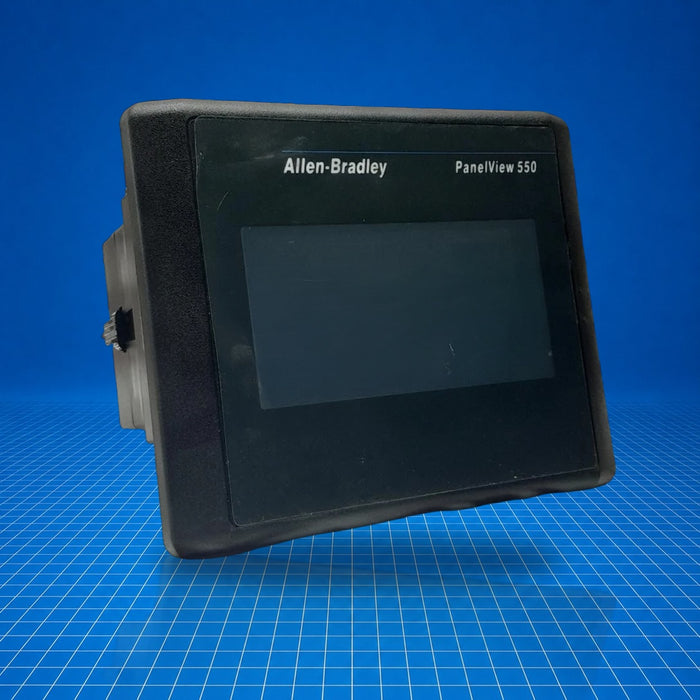

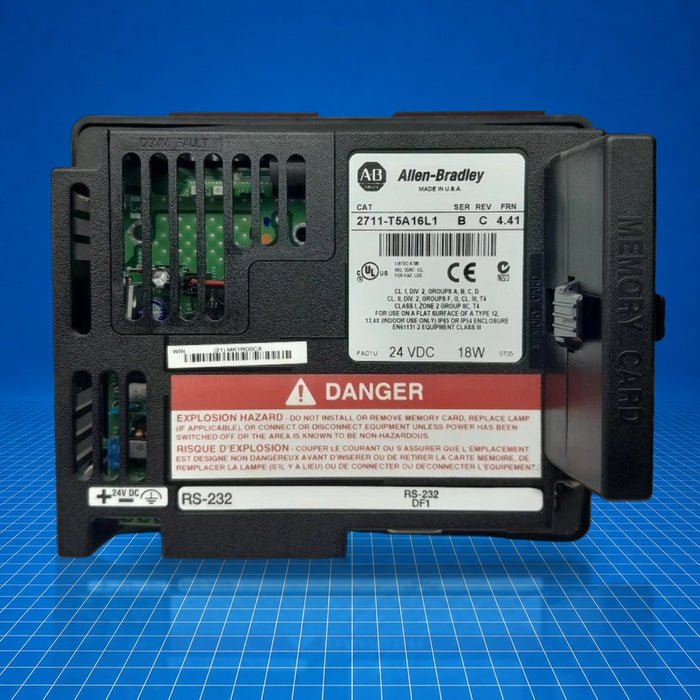

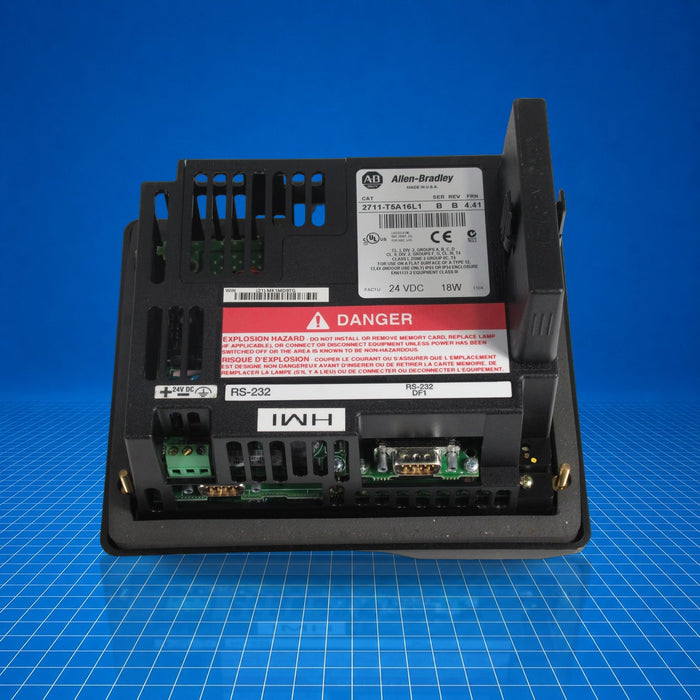

The Allen-Bradley 2711-T5A16L1 is a PanelView 550 Standard operator terminal-a monochrome, touch-screen Human-Machine Interface (HMI) designed for status monitoring and basic control in industrial automation. It houses a 5.5-inch blue-monochrome LCD with touchscreen input and dual RS-232 ports (DF1 communications and printer/download). It is powered by 24 V DC (18-30 V DC range). This terminal is commonly employed in machine-level interfaces, legacy DF1-based MicroLogix or SLC systems, and compact control panels.
Best Suited For
- DF1-based MicroLogix or SLC control systems
- Machine-level operator interface applications
- Enclosed NEMA 12/13 or 4X panel mounting
- Legacy system replacement where Ethernet is not required
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Emissions: Class A Industrial EN50081-2:1993; Immunity: EN61000-6-2:1999, EN50082-212:1995; Programmable controllers requirements: EN61131-2:1995; Low Voltage Directive (safety sections EN61131-1); UL 508; UL 1604 Class 1 Div 2 Groups A, B, C, D, T4; CSA 22.2 No. 142 & 213 Class 1 Div 2; EU Batteries Directive 2006/66/EC
