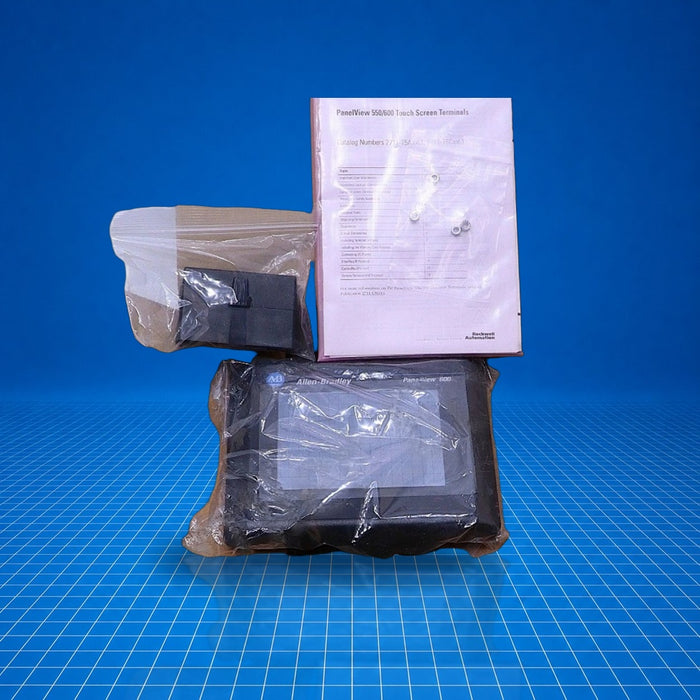

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2711-T6C9L1 Allen-Bradley
Original price
$756.25
-
Original price
$1,960.00
Original price
$756.25
$756.25
-
$1,960.00
Current price
$756.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

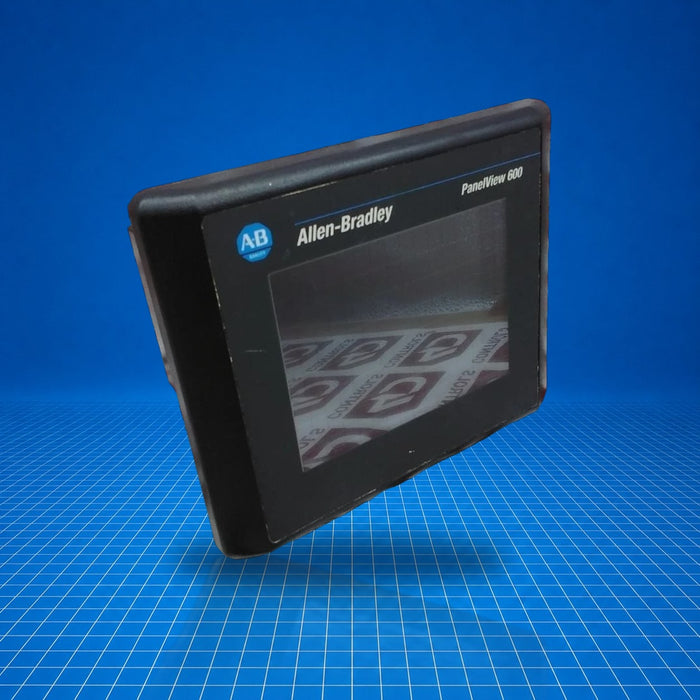

The 2711-T6C9L1 is an operator interface terminal in the Allen-Bradley PanelView 600 Standard family. It provides a 6-inch touchscreen display with color active-matrix TFT capabilities. In a typical control system, it functions as a human-machine interface (HMI), enabling operators to monitor process data and input commands. This unit suits applications such as machine control panels, batch process monitoring, and equipment diagnostics. The 2711-T6C9L1 supports legacy communication protocols and supplements modern industrial environments requiring reliable local interaction.
Best Suited For
- User-interface on legacy PanelView 600 installations
- Touchscreen replacement in existing machine control systems
- Operators requiring simple HMI for batch or sequential control
- Obsolete-part drop-in replacements in older Allen-Bradley systems
Display size
6 in.
Resolution
320 × 240
Input voltage
18-32 V DC
Memory (RAM/non-volatile)
240 KB RAM / non-volatile
Lifecycle status
Discontinued
Technical Specifications
I/O & Electrical
Memory
240 KB RAM; non-volatile memory
Input voltage
18-32 V DC (nominal 24 V DC)
Power consumption
24 W (max)
Heat dissipation
17 W (577 BTU/hr)
Communication & Power
Communication ports
RS-232 (DH-485) and RS-232 (DF1); EtherNet/IP; DeviceNet; ControlNet; DH+; Remote I/O
Backlight
Field-replaceable, part 2711-NL3
Physical & Environmental
Display type
Color active-matrix TFT touchscreen
Display resolution
320 × 240
Viewing area
115 × 87 mm (4.54 × 3.43 in.)
Dimensions (HxWxD)
152 × 185 × 96 mm (6.00 × 7.28 × 3.80 in.)
Panel cutout (HxW)
125 × 165 mm (4.91 × 6.49 in.)
Mounted depth
79 mm (3.12 in.)
Weight
2.06 lb (0.94 kg)
Operating temperature
32-131 °F (0-55 °C)
