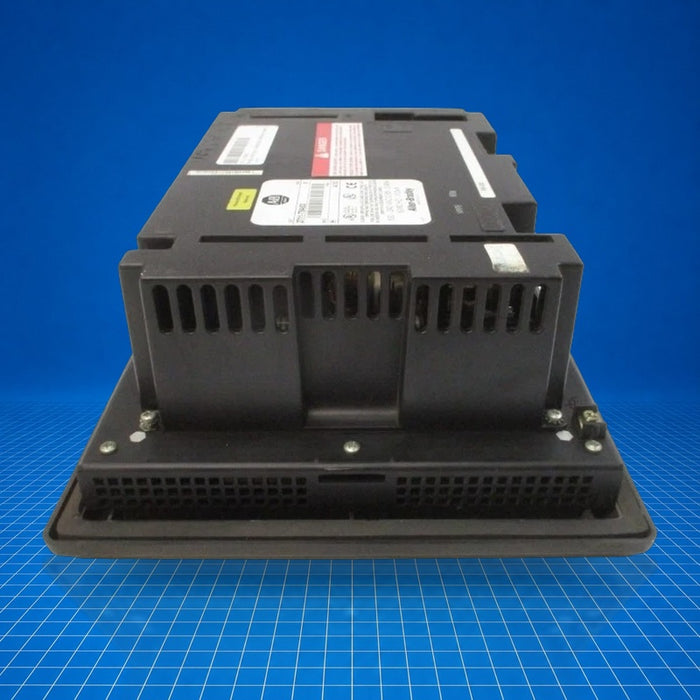

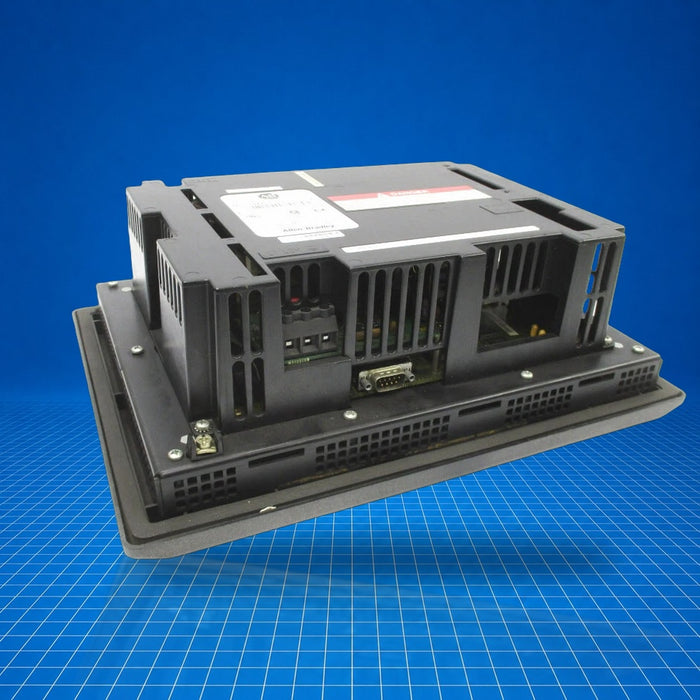

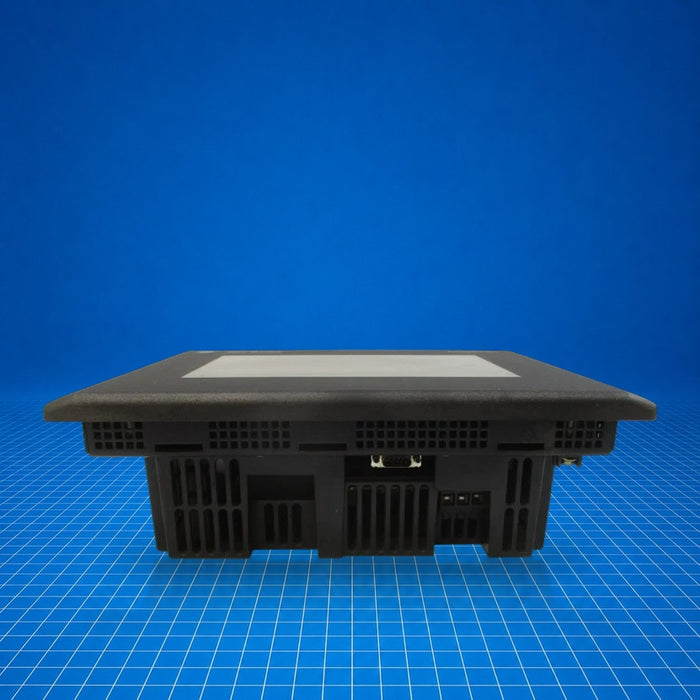

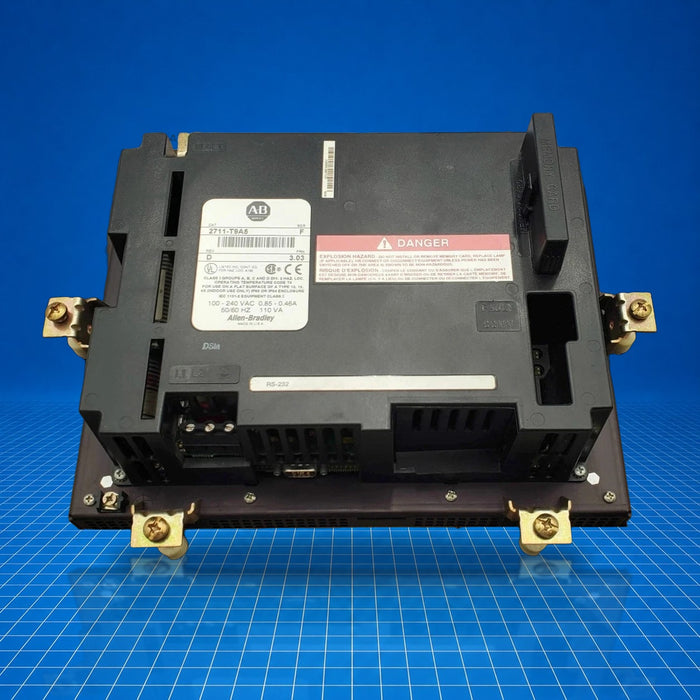

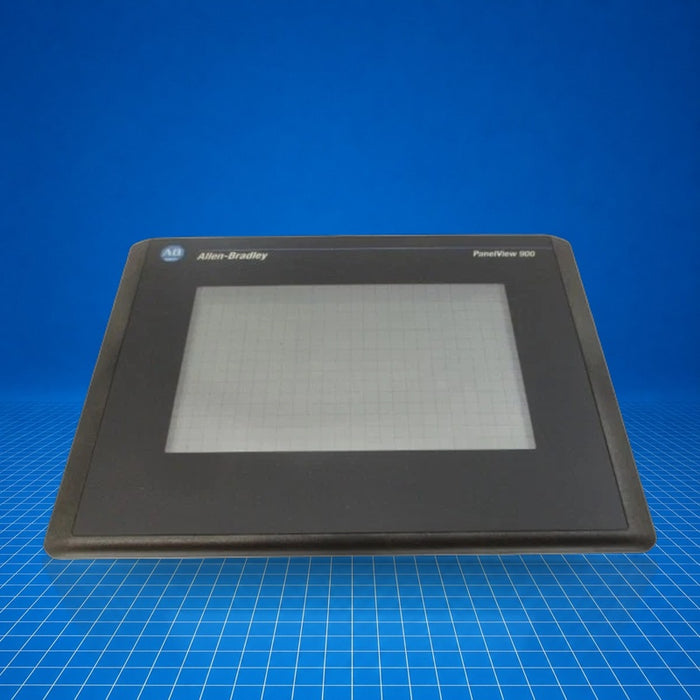

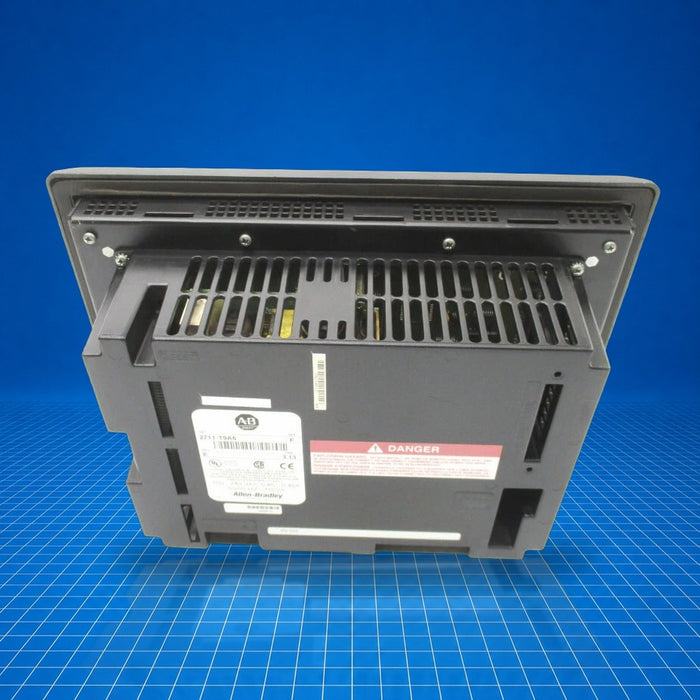

2711-T9A5 Allen-Bradley
Original price
$1,138.50
-
Original price
$12,262.50
Original price
$1,138.50
$1,138.50
-
$12,262.50
Current price
$1,138.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2711-T9A5 is an Allen-Bradley PanelView 900 Series standard operator interface terminal. Featuring a 9-inch monochrome touchscreen and DH-485 and RS-232 communication ports, it provides human-machine interface capabilities for mid-range control systems (SLC 500, MicroLogix). Being discontinued, it's commonly used for service replacement in legacy systems requiring simple graphic HMI for monitoring and parameter entry. The 2711-T9A5 supports firmware deployment via RS-232 printer port and integrates with established control architectures without device migration.
Best Suited For
- Integration with SLC 500 or MicroLogix PLCs
- Legacy system maintenance or retrofit
- Applications requiring monochrome operator display
- DH-485 or RS-232 communication networks
Display size
9 in
Display type
Monochrome touchscreen
Memory
1008 KB
Input power
120 VAC
Communication ports
DH-485, RS-232
Technical Specifications
I/O & Electrical
Memory (non-volatile/RAM)
1008 KB
Input power
120 VAC
Communication & Power
Communication ports
DH-485 and RS-232
Physical & Environmental
Display size
9 in
Display type
Monochrome touchscreen
Weight
6.81 lbs (3.09 kg)
Panel cutout (H×W)
224 mm × 305 mm (8.8 in × 12 in)
Terminal dimensions (H×W)
249 mm × 336 mm (9.80 in × 13.24 in)
Overall depth
112 mm (4.4 in)
Mounted depth
90 mm (3.54 in)
