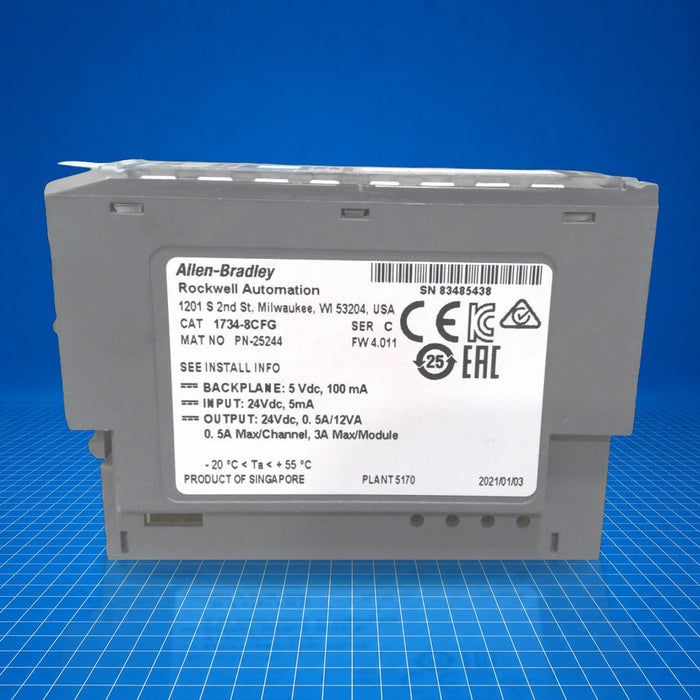

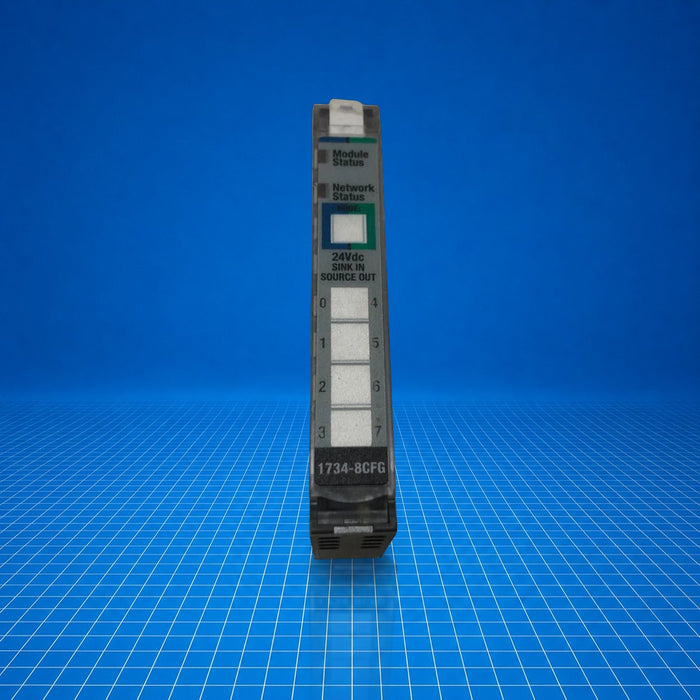

1734-8CFG Allen-Bradley
Original price
$327.00
-
Original price
$384.00
Original price
$327.00
$327.00
-
$384.00
Current price
$327.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

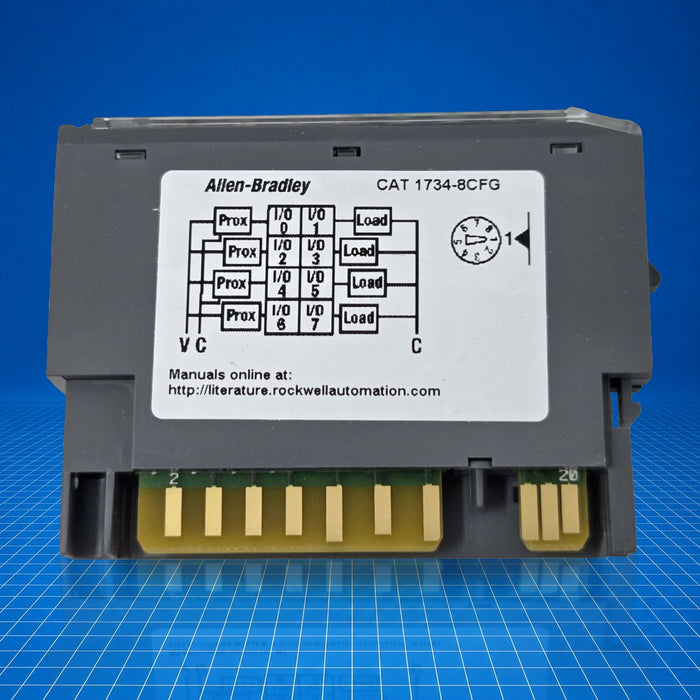

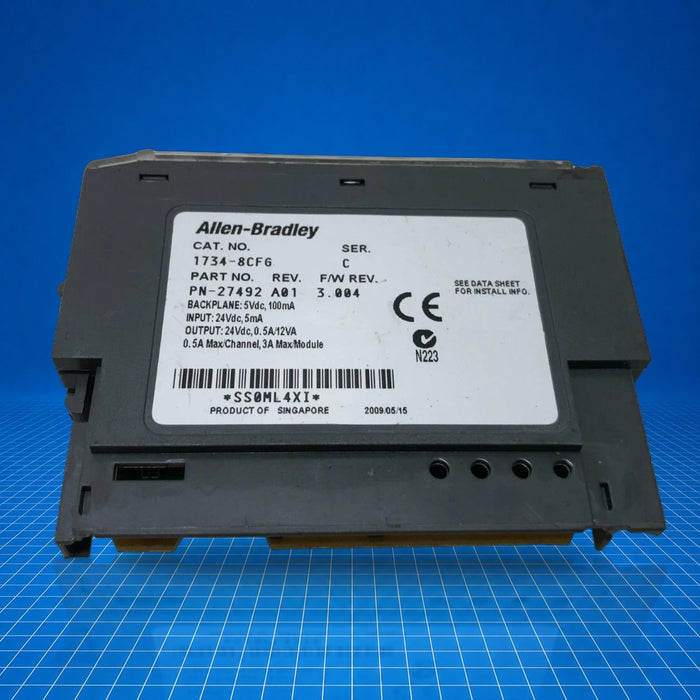

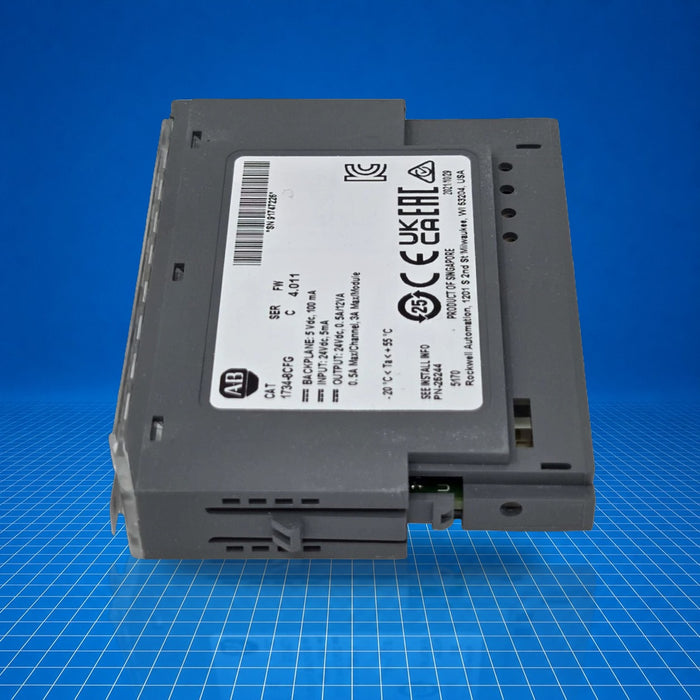

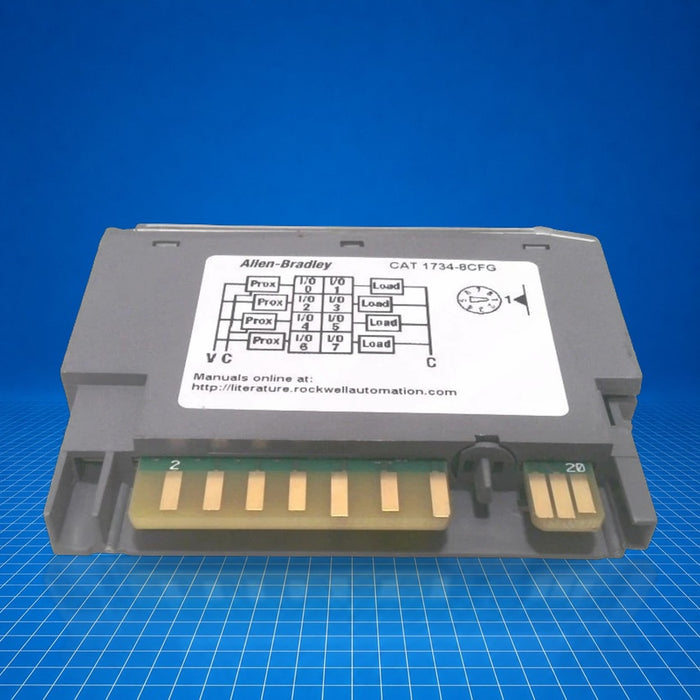

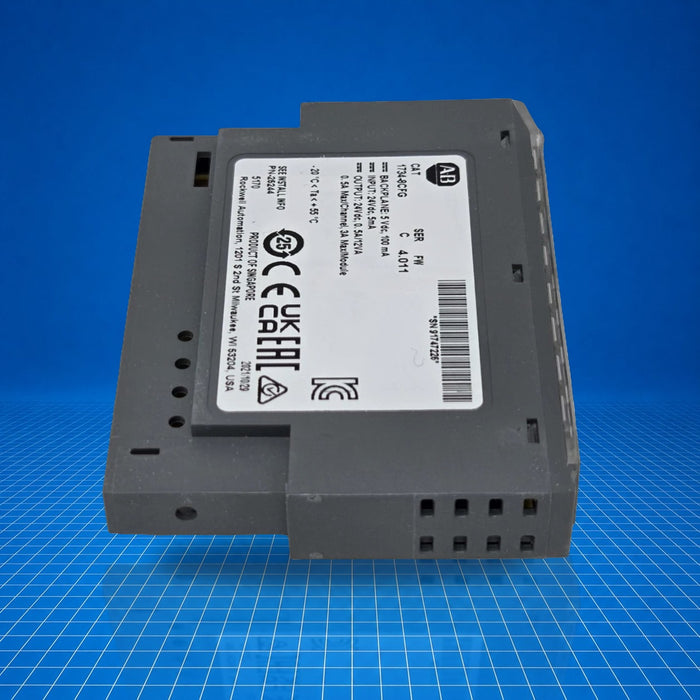

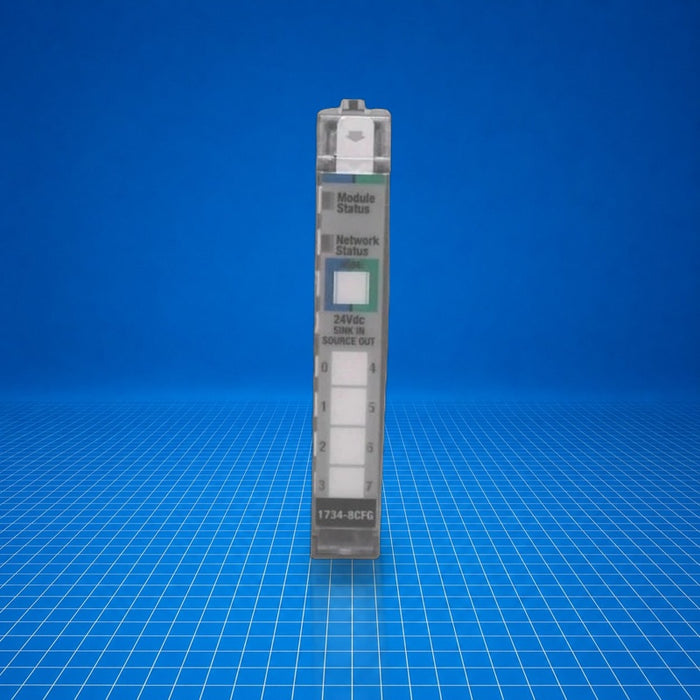

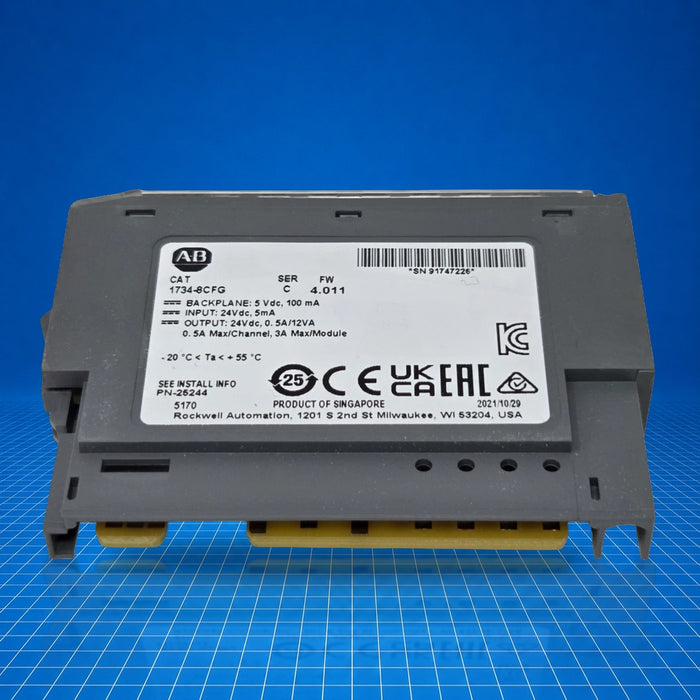

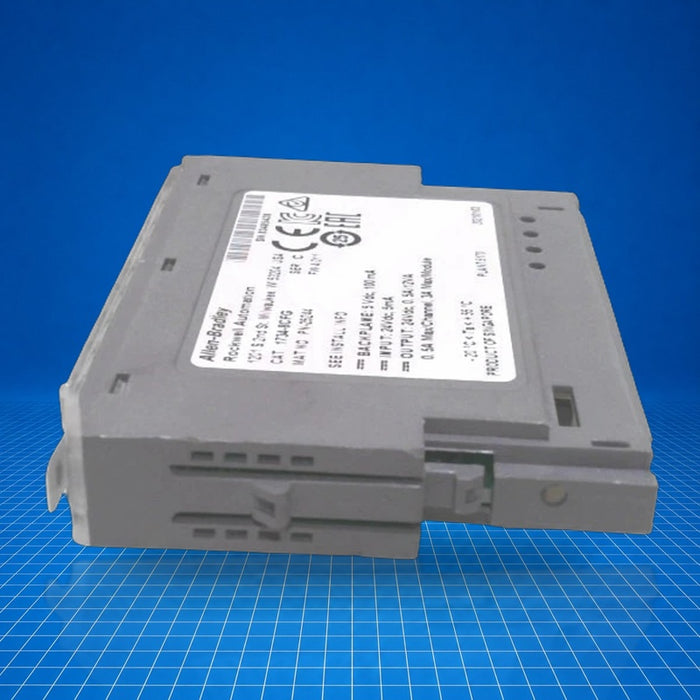

The Allen-Bradley 1734-8CFG is a POINT I/O module within the Bulletin 1734 POINT I/O digital family. It provides eight configurable 24 V DC points that can function as either inputs or outputs, supporting auto-addressing, auto-baud, and removal/insertion under power via the POINTBus backplane. Typical uses include compact distributed I/O installations in machinery, process control panels, packaging lines, and OEM equipment where space-efficient, flexible I/O is required.
Best Suited For
- Distributed I/O in compact enclosures
- On-machine configurable I/O functions
- Systems requiring removal/insertion under power
- Applications needing self-configurable input/output points
I/O points
8
Operating voltage (on-state input)
11 V DC (min)
On-state output voltage range
10…28.8 V DC
Max POINTBus current
100 mA @ 5 V DC
Power dissipation
2.6 W @ 28.8 V DC
Technical Specifications
I/O & Electrical
I/O points
8
On-state input voltage (min)
11 V DC
Off-state input voltage (max)
5 V DC
On-state input current range
2.0…5.0 mA
Off-state input current (min)
1.5 mA
On-state output voltage range
10…28.8 V DC
On-state output voltage (nominal)
24 V DC
On-state output voltage drop (max)
0.4 V DC
On-state output current (max per point)
0.5 A
All-outputs current (max)
3.0 A
Leakage off-state (max)
0.5 mA
Surge current (100 ms)
1.0 A (repeatable every 2 s)
Communication & Power
POINTBus current (max)
100 mA @ 5 V DC
Power dissipation (max)
2.6 W @ 28.8 V DC
Physical & Environmental
Operating temperature
-20 to 55 °C
Mounting
DIN rail
Enclosure style
Open
Certifications
Certified to EMC and LVD directives (CE) as of documentation. Other certifications may be present-consult product label.
