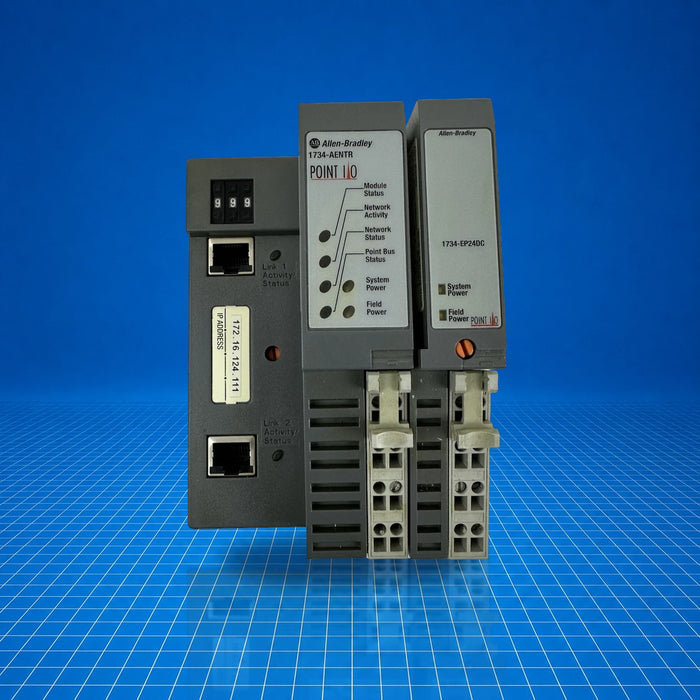

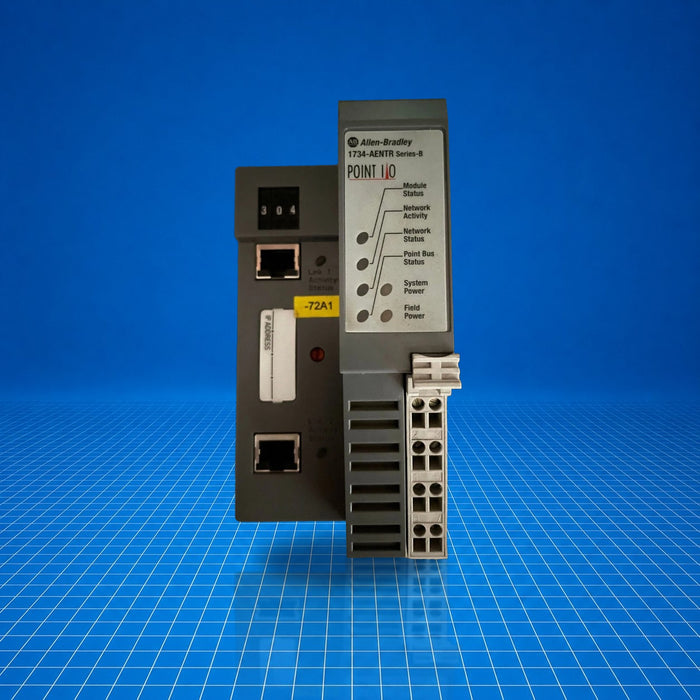

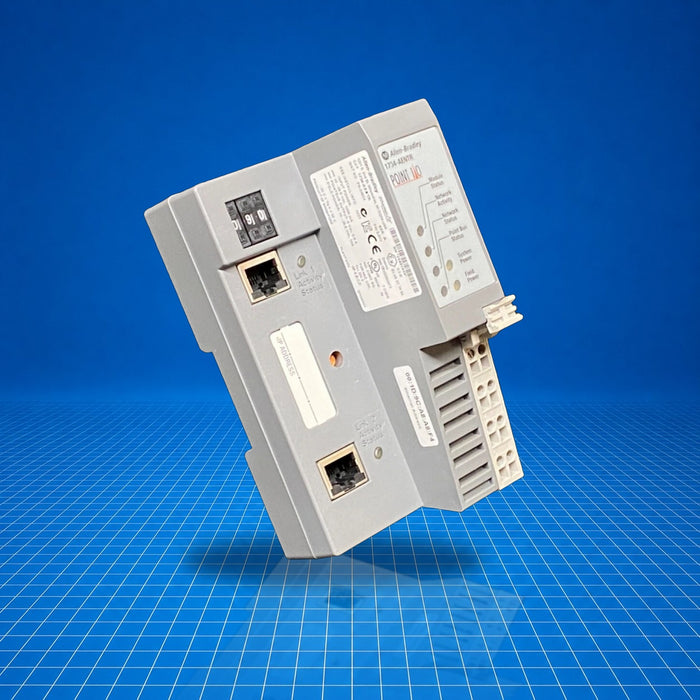

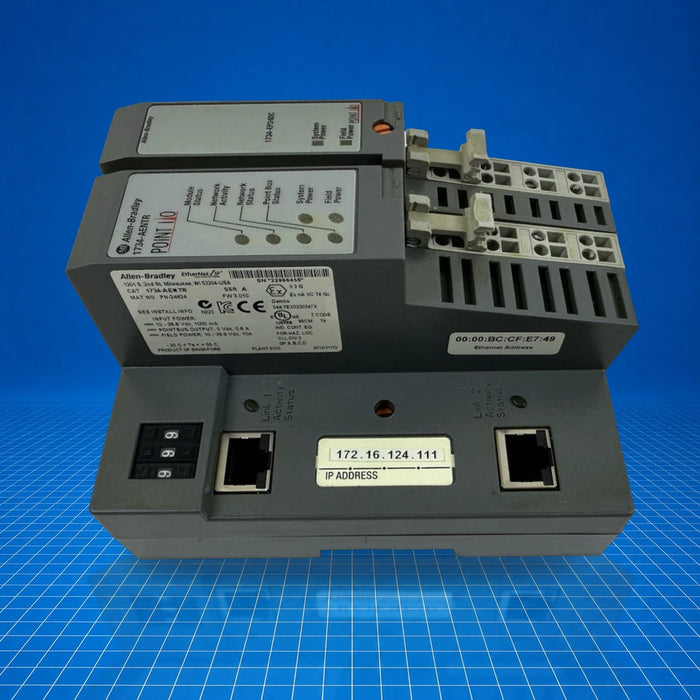

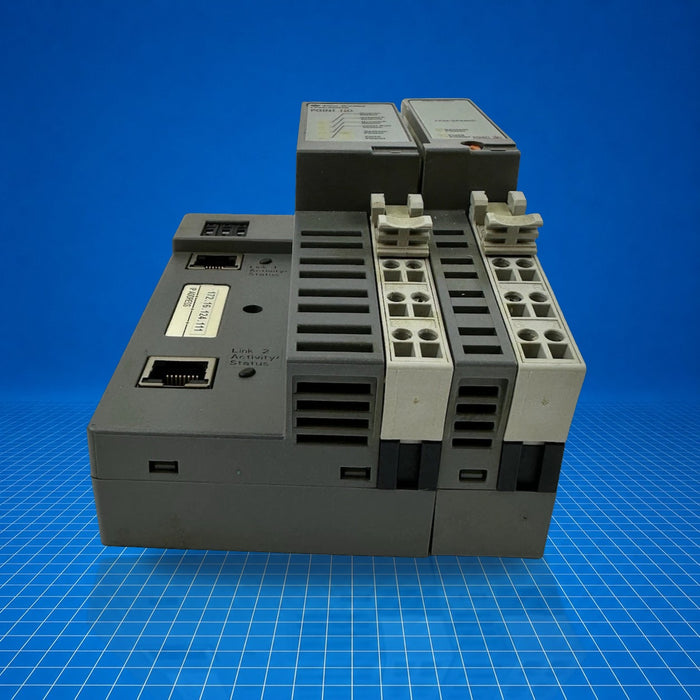

1734-AENTR Allen-Bradley
Original price
$387.00
-
Original price
$400.00
Original price
$400.00
$387.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

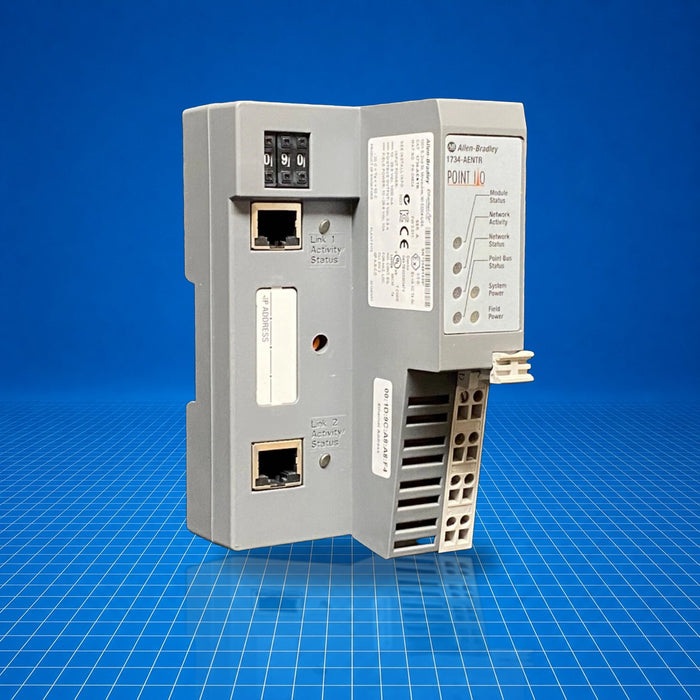

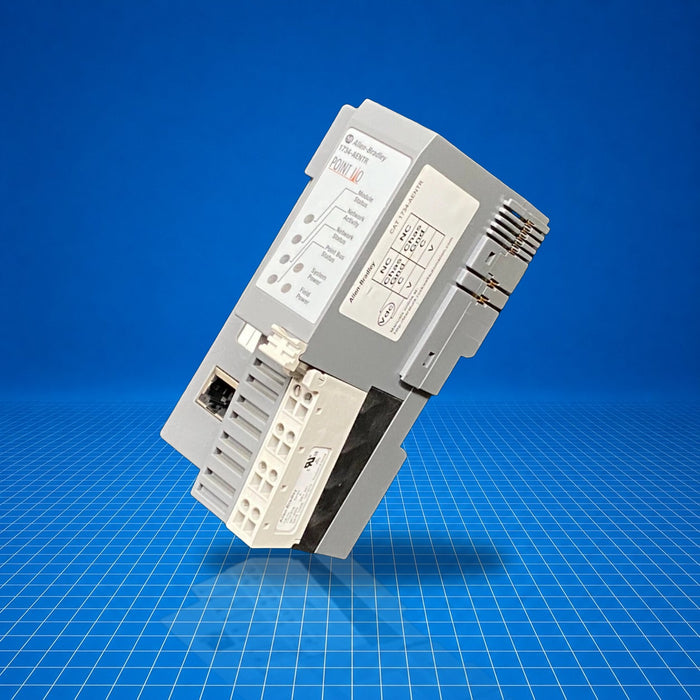

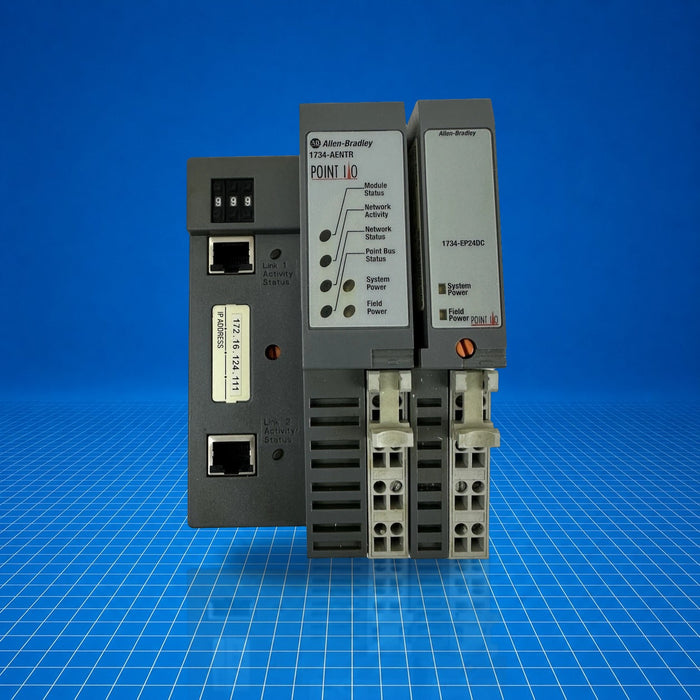

The 1734-AENTR is an Allen-Bradley POINT I/O module functioning as a dual-port EtherNet/IP adapter. It serves as the interface between local I/O modules and an EtherNet/IP controller, supporting daisy-chain, star, tree, and ring topologies. Suitable for distributed I/O architectures, 1734-AENTR connects up to 63 modules per node and manages communications in mid-range industrial automation, machine control, assembly lines, and general factory floor applications.
Best Suited For
- Distributed I/O installations with POINT I/O modules
- EtherNet/IP network topologies including daisy-chain and ring
- Machine control systems requiring up to 63 local I/O modules
- Systems needing dual-port redundant or flexible network wiring
Communication Protocol
EtherNet/IP
Network Ports
2 (embedded switch)
Max Expansion Modules
63
Power Consumption
10.4 W @ 28.8 V DC
Backplane Current Output
0.8 A @ 5 V DC
Technical Specifications
I/O & Electrical
Input voltage range
10-28.8 V DC
Maximum inrush current
6 A for 10 ms
Power consumption, max
10.4 W @ 28.8 V DC
Power dissipation, max
6.3 W @ 28.8 V DC
Thermal dissipation, max
21.5 BTU/hr @ 28.8 V DC
Isolation voltage
50 V (continuous)
POINTBus output
5 V DC @ 0.8 A max
Communication & Power
Ethernet communication rate
10/100 Mbps, half or full-duplex
Ethernet ports
2, embedded switch
Field power supply
10-28.8 V DC @ 10 A max
Module input
1000 mA @ 10-28.8 V DC
Physical & Environmental
Operating temperature
-20 … 55 °C
Mounting
DIN rail
Enclosure type
Open-style
Surge transient immunity
IEC 61000-4-5: ±1 kV L-L (DM), ±2 kV L-earth (CM) on power; ±2 kV CM on comm
Conducted RF immunity
IEC 61000-4-6: 10 V rms, 150 kHz…80 MHz (only for AENT, AENTK; none for AENTR)
Certifications
IECExChina CCCRegistro Italiano NavaleEurasian Economic Community
Certified under CCC, Registro Italiano Navale, IECEx, Eurasian Economic Community, China CCC; certification status as of June 1, 2026.
