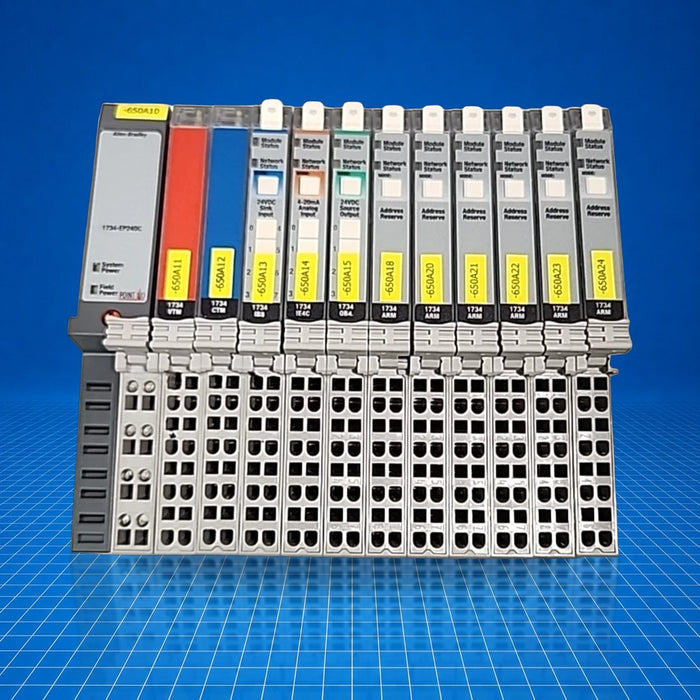

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1734-ARM Allen-Bradley
Original price
$350.28
-
Original price
$673.61
Original price
$673.61
$350.28
-
$673.61
Current price
$673.61
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1734-ARM is an Allen-Bradley POINT I/O Address Reserve Module used to retain a node address and slot position when replacing or deferring installation of I/O modules. As part of the POINT I/O family, it preserves address continuity in distributed I/O systems using DeviceNet, ControlNet, or EtherNet/IP adapters. It is typically applied in modular machine control architectures to reserve future expansion slots without disrupting network addressing.
Best Suited For
- Maintaining POINT I/O addressing during module replacement or future expansion
- Preserving slot numbering in modular machine control systems
- Temporary blanking of unused POINT I/O slots while retaining address mapping
- Systems using DeviceNet, ControlNet, or EtherNet/IP adapters in Studio 5000
POINTBus current, max
75 mA @ 5 V DC
Power dissipation, max
0.375 W @ 5 V DC
Thermal dissipation, max
1.3 BTU/hr @ 5 V DC
Isolation voltage (tested)
2200 V DC for 60 s
Technical Specifications
I/O & Electrical
POINTBus current, max
75 mA @ 5 V DC
Power dissipation, max
0.375 W @ 5 V DC
Thermal dissipation, max
1.3 BTU/hr @ 5 V DC
Communication & Power
Function
Retains module address and slot number; no I/O communication
Isolation voltage
Tested at 2200 V DC for 60 s; no isolation between channels
Physical & Environmental
Operating temperature
-20…55 °C (-4…131 °F)
Certifications
UL Class I Div 2CERoHS
Certified for Class I, Division 2, Groups A, B, C, D (UL) as Address Reserve Module, Series C. Compliant with applicable EU directives per CE and RoHS structure.
