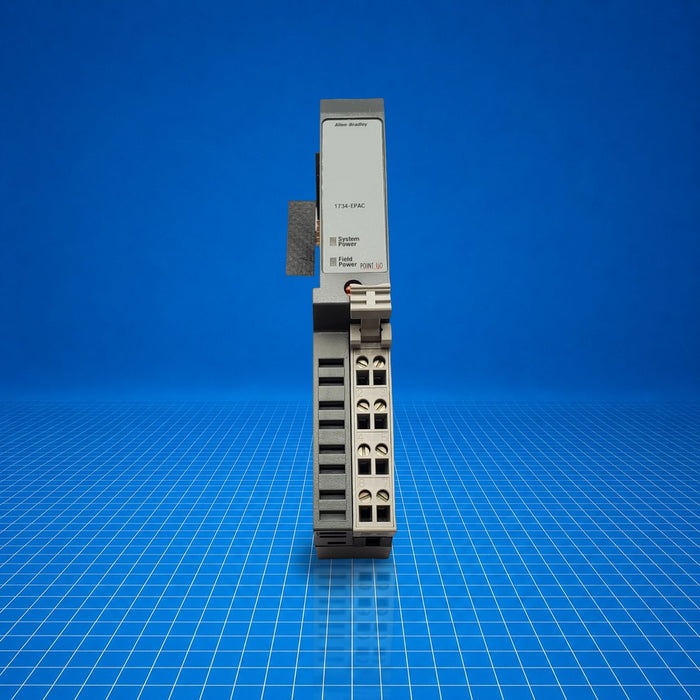

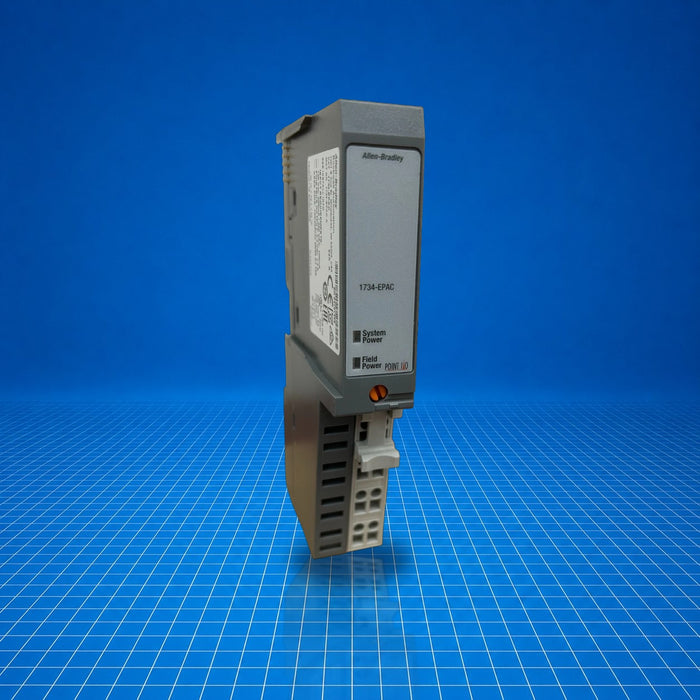

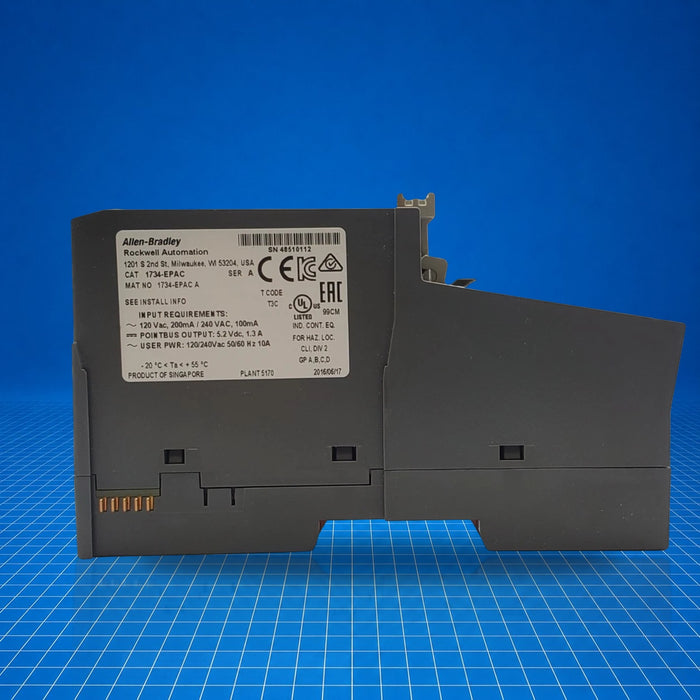

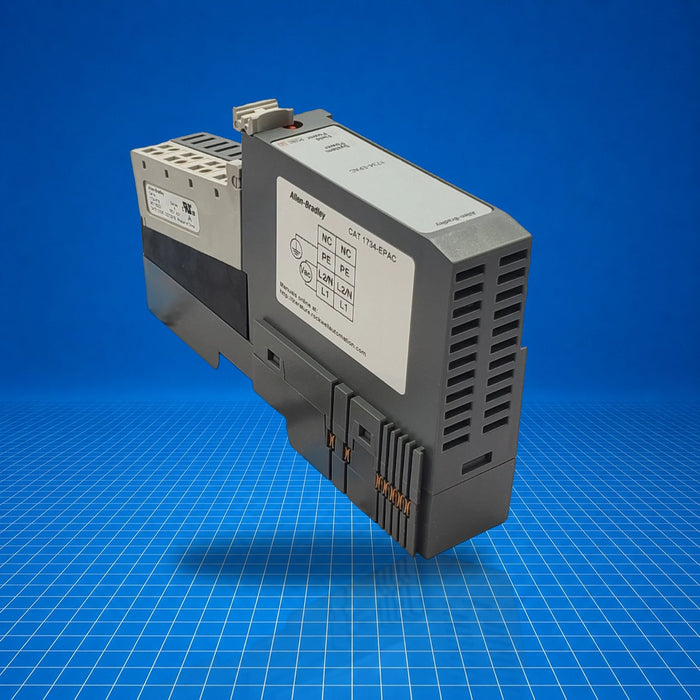

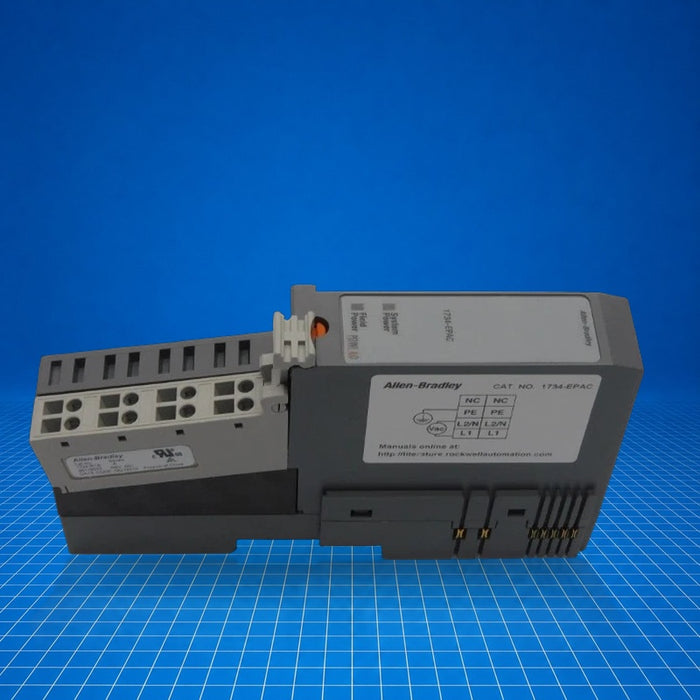

1734-EPAC Allen-Bradley
Original price
$375.00
-
Original price
$555.00
Original price
$375.00
$375.00
-
$555.00
Current price
$375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1734-EPAC is an Allen-Bradley POINT I/O Expansion Power Module providing 120/240 V AC field power to POINT I/O systems. It supplies POINTBus system power (nominal 5.2 V DC) and enables logical segmentation of I/O modules for functional grouping. The module mounts on standard DIN rail and is used in industrial control systems where separation of field-side power is required. 1734-EPAC supports horizontal or vertical installation, supplies up to 10 A field-side current, and serves typical applications such as distributed I/O expansion and modular control panel designs.
Best Suited For
- Distributed POINT I/O expansion in control panels
- Segmentation of field-side power for functional grouping
- Horizontal or vertical DIN-rail mounted I/O systems
- Applications requiring separation of field and system power
Input voltage range
85…264 V AC
POINTBus output current
1.3 A (horizontal), 1.0 A (vertical)
Power consumption / dissipation
15.1 W / 8.4 W @ 264 V AC
Inrush current
2 A for 6 ms
Isolation voltage
264 V continuous; 3250 V DC, 60 s
Technical Specifications
I/O & Electrical
Input voltage
120/240 V AC nominal (85…264 V AC, 50…60 Hz)
Field-side max current
200 mA @ 120 V AC; 100 mA @ 240 V AC
Inrush current
2 A for 6 ms
POINTBus output current
1.3 A horizontal; 1.0 A vertical
Isolation voltage
264 V continuous; withstands 3250 V DC for 60 s
Communication & Power
Power consumption
15.1 W @ 264 V AC
Power dissipation
8.4 W @ 264 V AC
Thermal dissipation
28.7 BTU/h @ 264 V AC
Overvoltage protection
MOV and fuse
Physical & Environmental
Mounting
DIN-rail, horizontal or vertical
Dimensions (HxWxD)
79.8 × 25.3 × 133.1 mm (3.14 × 1 × 5.24 in.)
Weight
181-182 g (approx. 6.4 oz)
Enclosure type
Open-style (no enclosure)
Certifications
cULusCEC-TickClass I, Division 2 (UL)
