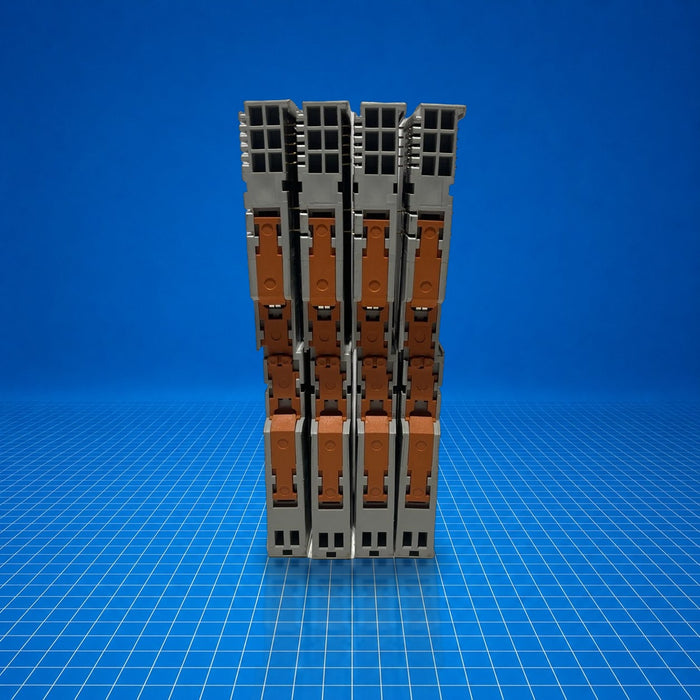

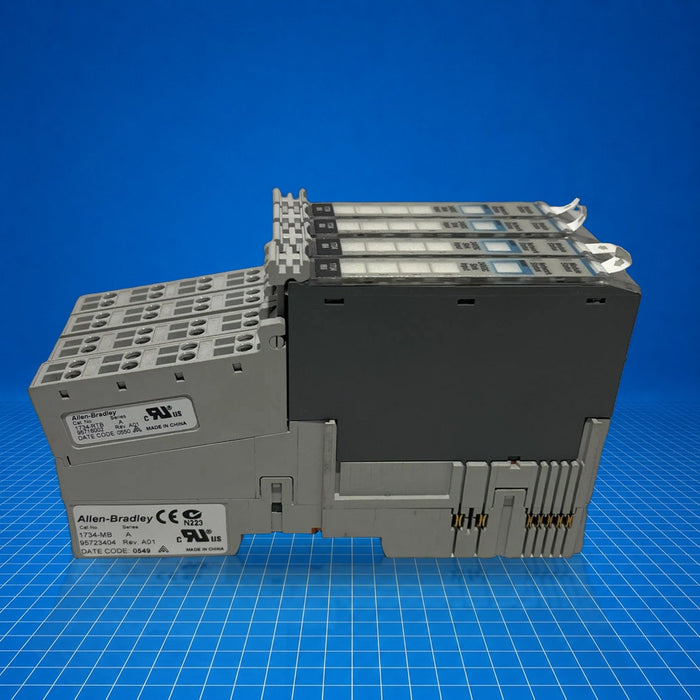

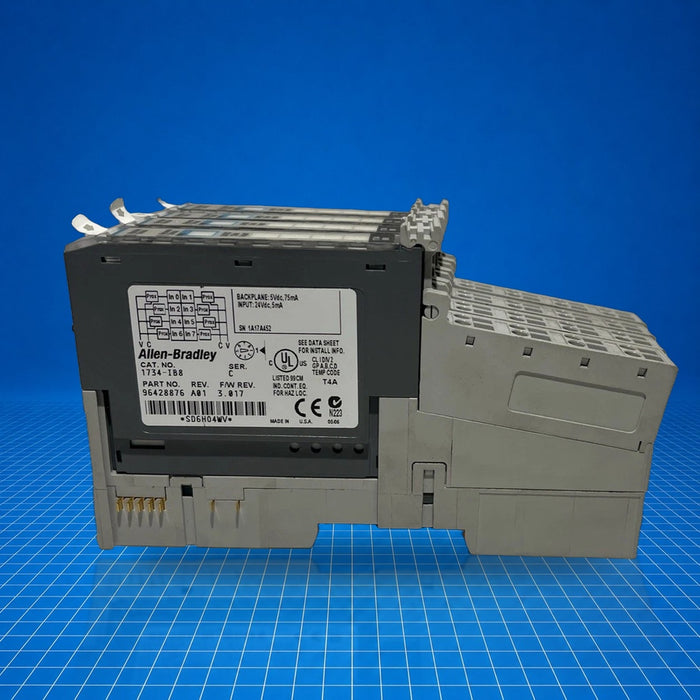

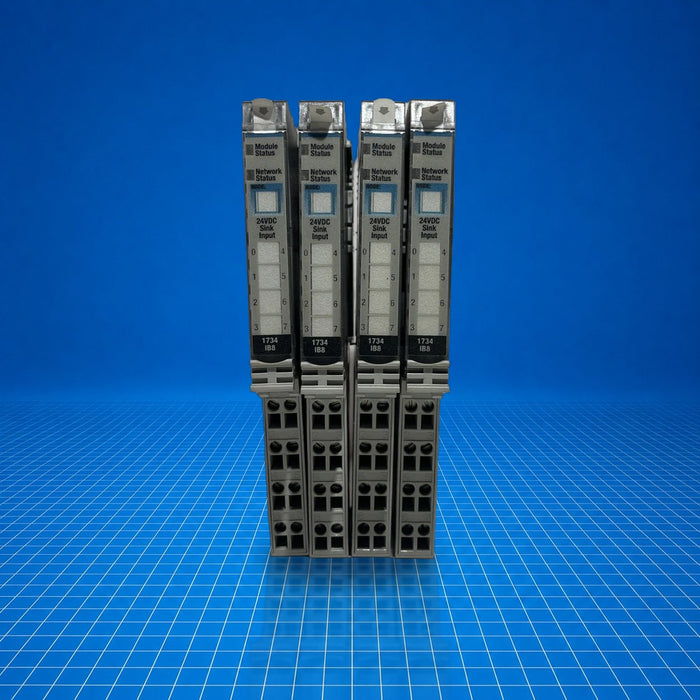

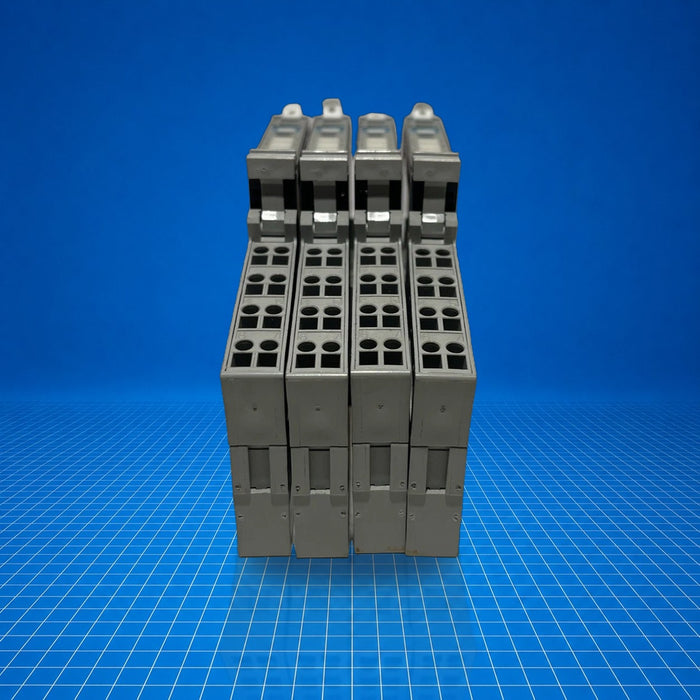

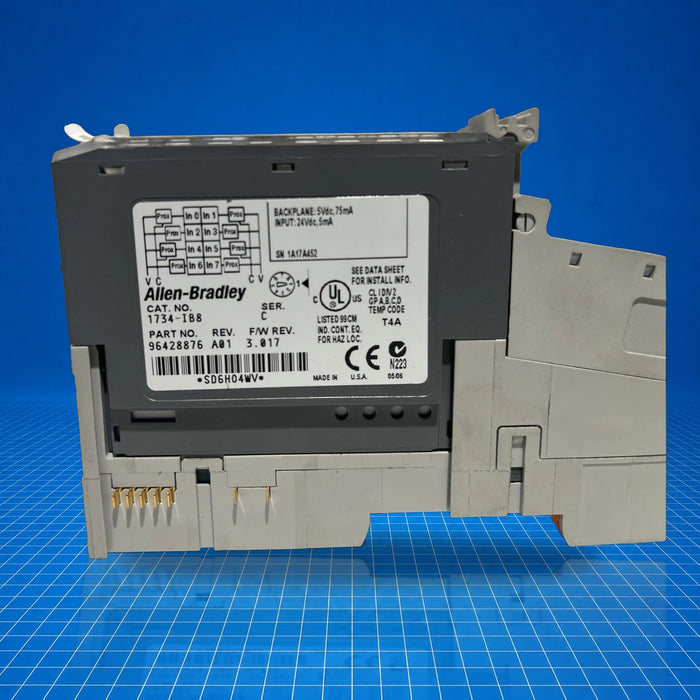

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1734-IB8 Allen-Bradley
Original price
$400.00
-
Original price
$400.00
Original price
$400.00
$400.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1734-IB8 is an Allen-Bradley POINT I/O eight-channel sinking digital input module for distributed IO systems. It interfaces via a POINTBus adapter within Rockwell Automation control architectures, offering discreet 24 V DC sinking inputs. It is deployed in industrial I/O expansion, machine control, and remote sensing tasks requiring compact digital input modules. The 1734-IB8 operates in harsh industrial environments and integrates into modular POINT I/O platforms.
Best Suited For
- Distributed POINT I/O expansion
- Machine-level discrete sensing
- Situations requiring compact 8-point sink inputs
- Integration with POINTBus adapters
Inputs
8 sinking
Nominal voltage
24 V DC
Input current (nominal)
4 mA @ 24 V DC
Power dissipation (max)
1.6 W
Operating temperature
-20…55 °C
Technical Specifications
I/O & Electrical
Number of inputs
8 sinking
Nominal on-state voltage
24 V DC
On-state voltage range
10…28.8 V DC
Nominal on-state current
4 mA @ 24 V DC
On-state current range
2…5 mA
Maximum off-state voltage
5 V DC
Minimum off-state current
1.5 mA
POINTBus current (max)
75 mA @ 5 V DC
Isolation voltage (continuous)
50 V
Communication & Power
Power dissipation (max)
1.6 W
Thermal dissipation (max)
5.5 BTU/hr
Physical & Environmental
Enclosure type
Open-style
Operating temperature
-20…55 °C (-4…131 °F)
Weight
0.06 kg (0.13 lbs)
Certifications
China CCCRegistro Italiano NavaleIECExAmerican Bureau of ShippingMorocco DOCUK EXUKCA
Certified per IECEx and other certifications as listed on product page (e.g. China CCC, UKCA, IECEx, AB shipping classifications as of May 19 2026).
