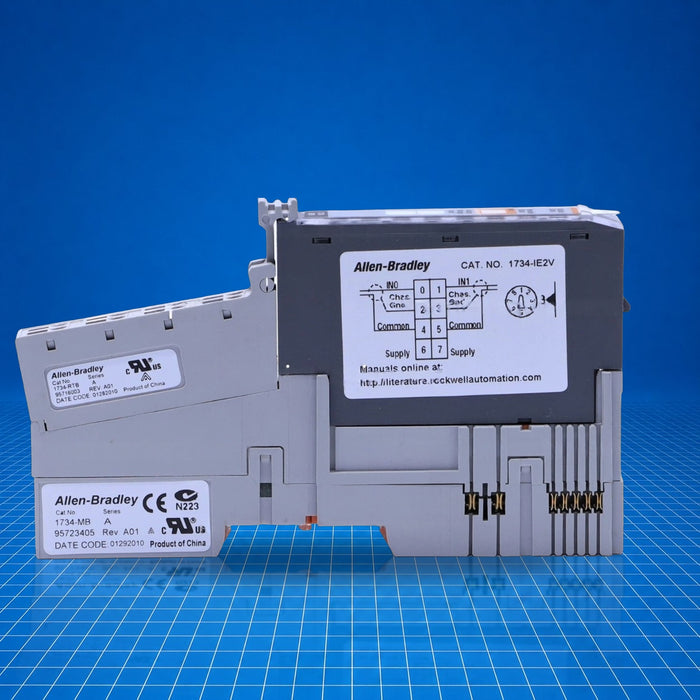

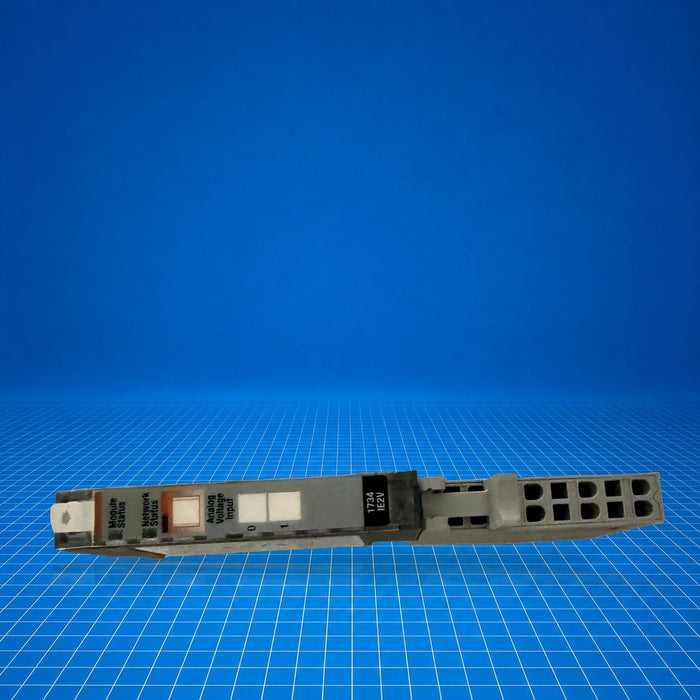

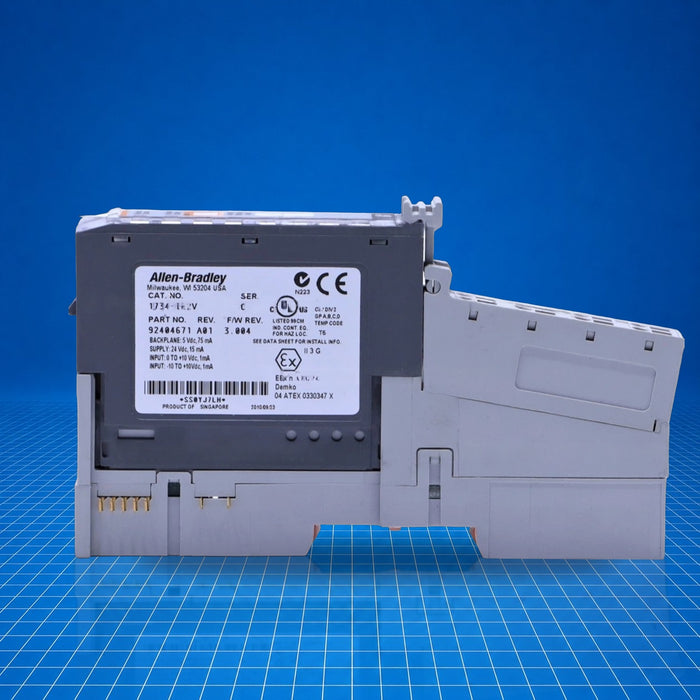

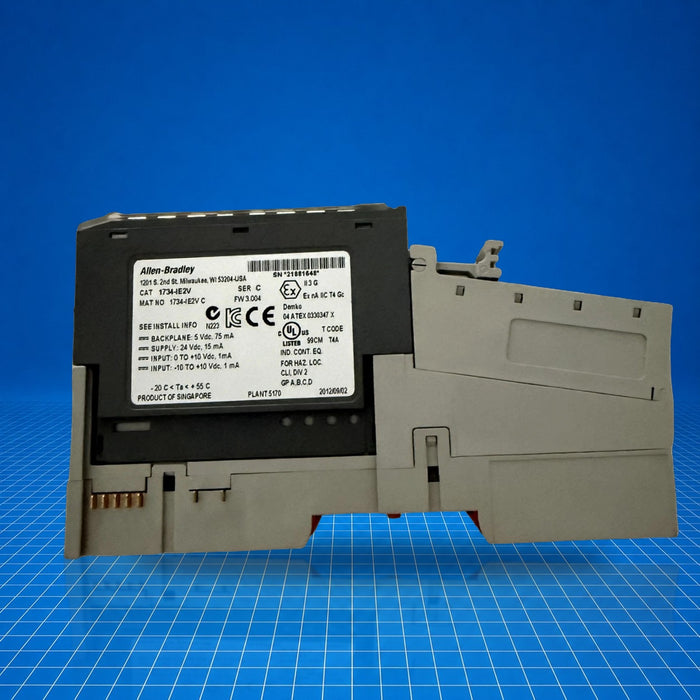

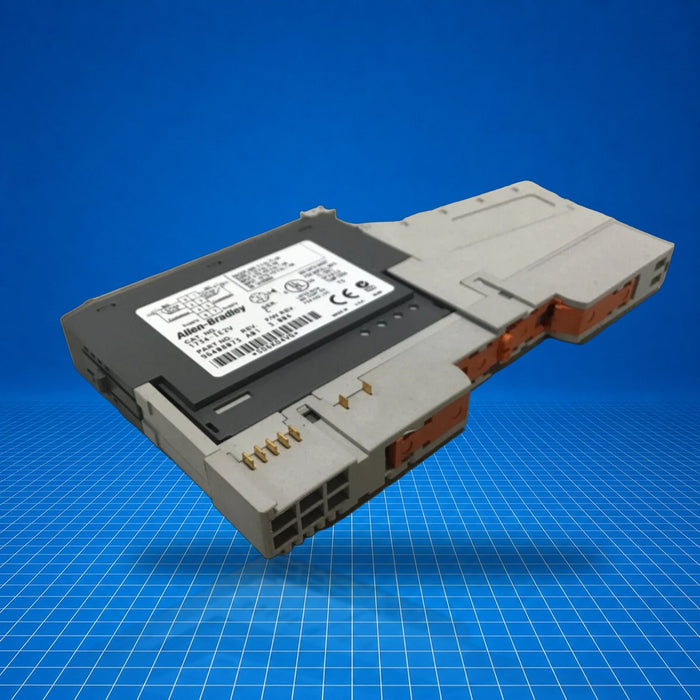

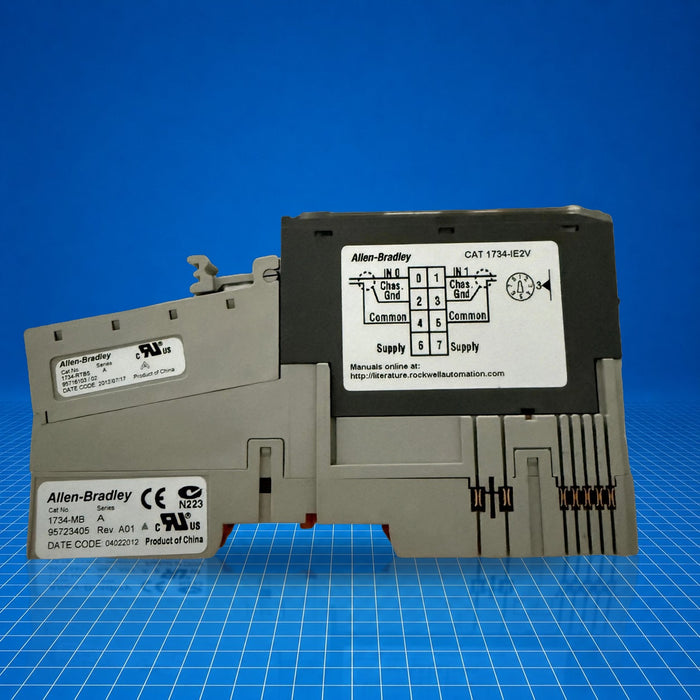

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1734-IE2V Allen-Bradley
Original price
$375.00
-
Original price
$400.00
Original price
$400.00
$375.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1734-IE2V is an Allen-Bradley POINT I/O module providing two single-ended, non-isolated analog voltage inputs. It operates on the POINT I/O 1734 platform and interfaces field voltage signals-0…10 V or ±10 V-to a control system, converting them via delta-sigma A/D into signed integer data. It is typically installed on a DIN-rail alongside POINT I/O adapters and used for basic process measurements such as pressure, level, flow, or temperature. 1734-IE2V implements essential analog acquisition in distributed I/O architectures.
Best Suited For
- Distributed I/O installations over POINT I/O network
- Reading single-ended voltage transmitter outputs (0…10 V or ±10 V)
- Compact analog signal acquisition in field sites
- Upgrading existing POINT I/O systems with voltage input capability
Channels
2
Voltage input range
0…10 V or -10…10 V
Input impedance
100 kΩ
Power dissipation
0.75 W @ 28.8 V DC
Operating temperature
-20…55 °C
Technical Specifications
I/O & Electrical
Number of inputs
2 single-ended, non-isolated
Voltage input range
0…10 V user-configurable; ±10 V user-configurable
Input impedance
100 kΩ
Input resistance
200 kΩ
Conversion type
Delta-Sigma
Data format
Signed integer
Communication & Power
Power supply
24 V DC
Power dissipation
0.75 W @ 28.8 V DC
Thermal dissipation
2.5 BTU/hour @ 28.8 V DC
Physical & Environmental
Enclosure type
Open-style (no enclosure)
Operating temperature
-20…55 °C (-4…131 °F)
