Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

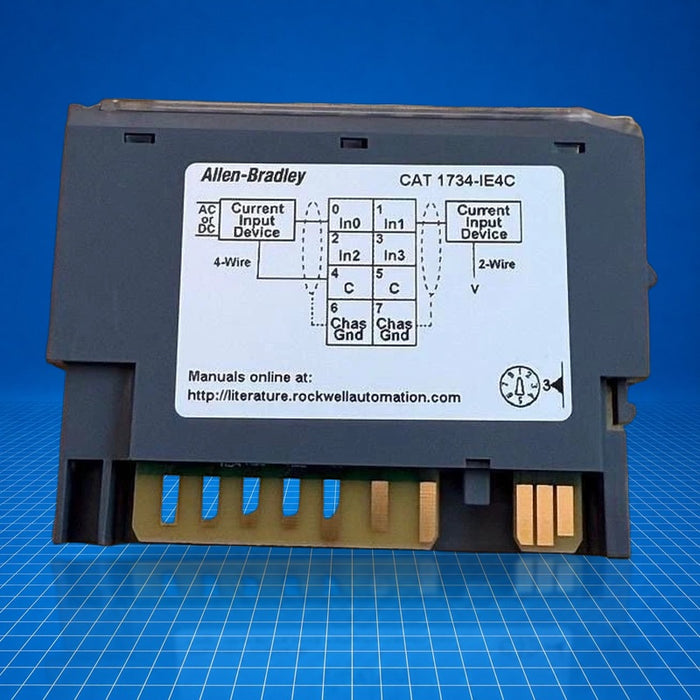

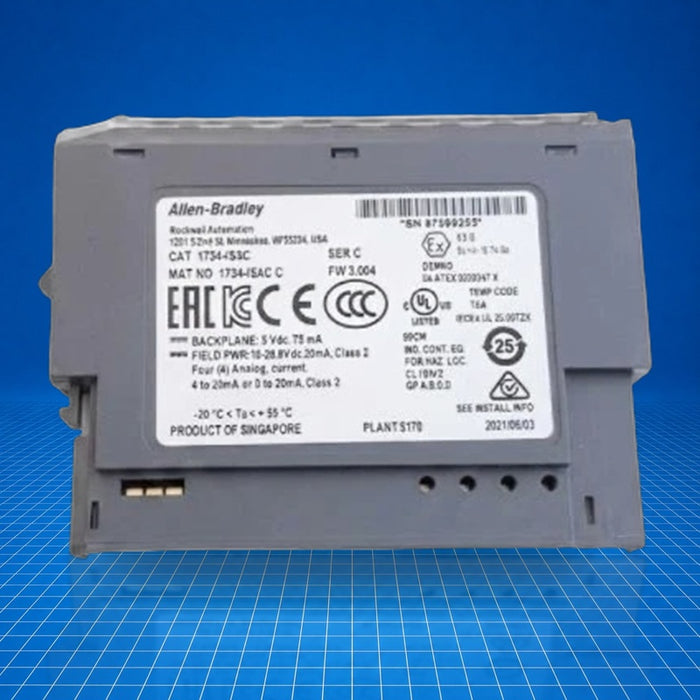

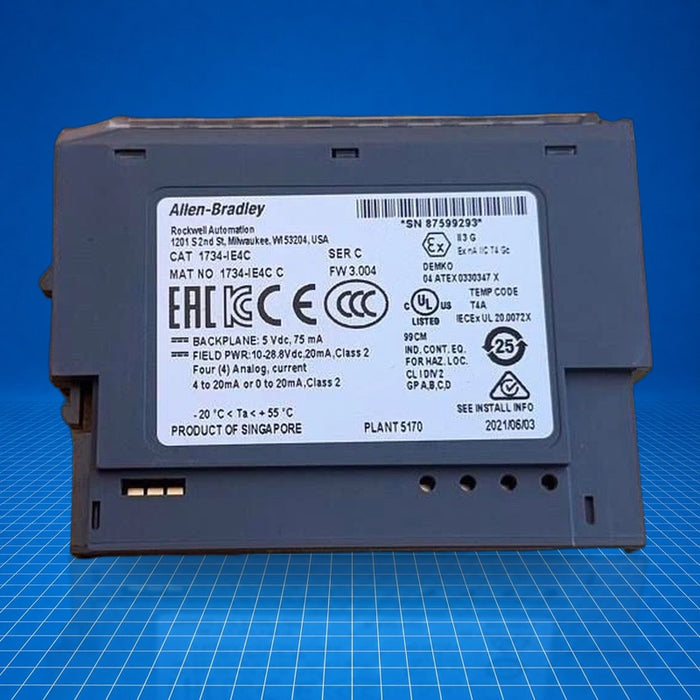

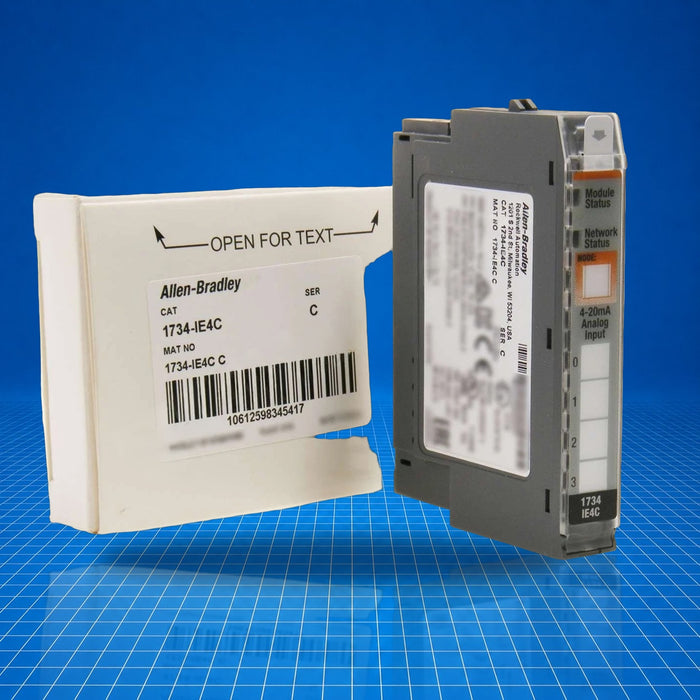

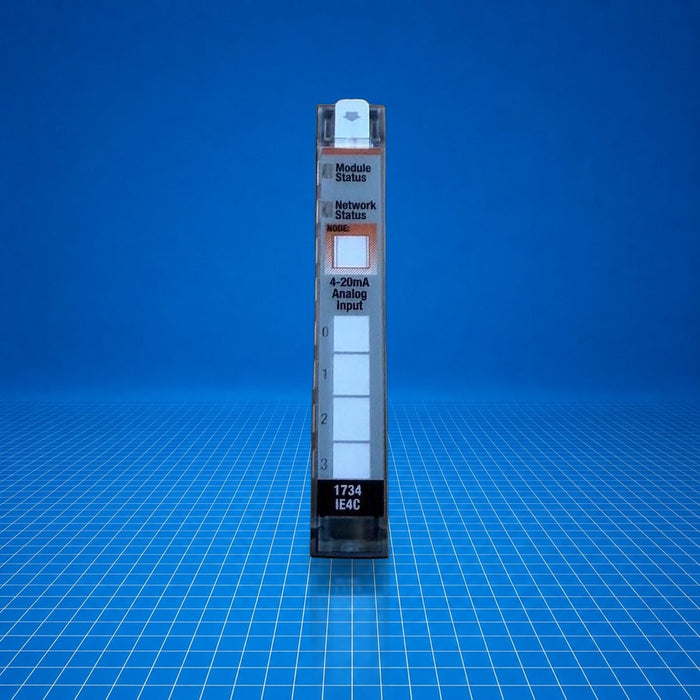

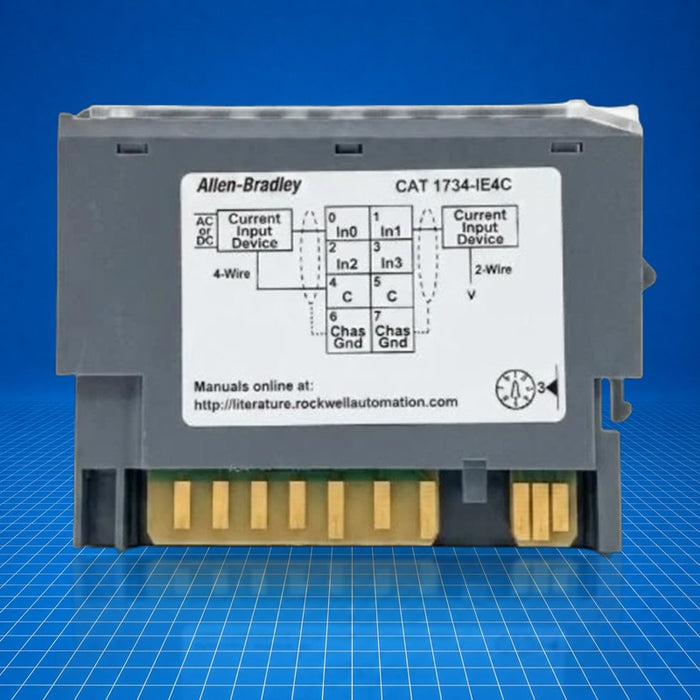

The 1734-IE4C is a POINT I/O four-channel analog current input module from Allen-Bradley. Designed for distributed control systems, this module accepts 4-20 mA or 0-20 mA field current signals and interfaces them to a POINT I/O network. It operates on 24 V DC field power and mounts on standard 1734 POINT I/O bases. It is suited for applications such as industrial sensing, process monitoring, and analog signal acquisition in machine and process environments.
Best Suited For
- Reading 4-20 mA field sensors in distributed I/O installations
- Process variable monitoring
- Integration in POINT I/O-based control systems
- Compact analog input expansion near field devices
Channels
4 analog current inputs
Input range
4-20 mA or 0-20 mA
Field power
24 V DC
Module power dissipation
0.55 W @ 28.8 V DC
Technical Specifications
I/O & Electrical
Input current range
4-20 mA or 0-20 mA
Input resistance
60 Ω
Isolation voltage
50 V (no isolation between channels or field power to inputs)
Notch filter frequencies
13.1 Hz @50 Hz, 15.7 Hz @60 Hz (default), plus others up to 480 Hz
Input step response
50 ms @60 Hz (default); 60 ms @50 Hz; other values for other notch frequencies
Communication & Power
Field power nominal voltage
24 V DC
Field power voltage range
10-28.8 V DC, 20 mA, Class 2
Power dissipation, max
0.55 W @ 28.8 V DC
Thermal dissipation, max
2.0 BTU/hr @ 28.8 V DC
Physical & Environmental
Operating temperature
-20…55 °C (-4…131 °F)
Mounting
1734-TB3 or 1734-TB3S terminal base
Certifications
IECExUKEXUKCAChina CCCRINAMOROCCO DOCABS assessed
Certifications include IECEx, UK EX, UKCA, China CCC, Registro Italiano Navale, MOROCCO DOC; design assessment by ABS valid through April 25, 2028.
