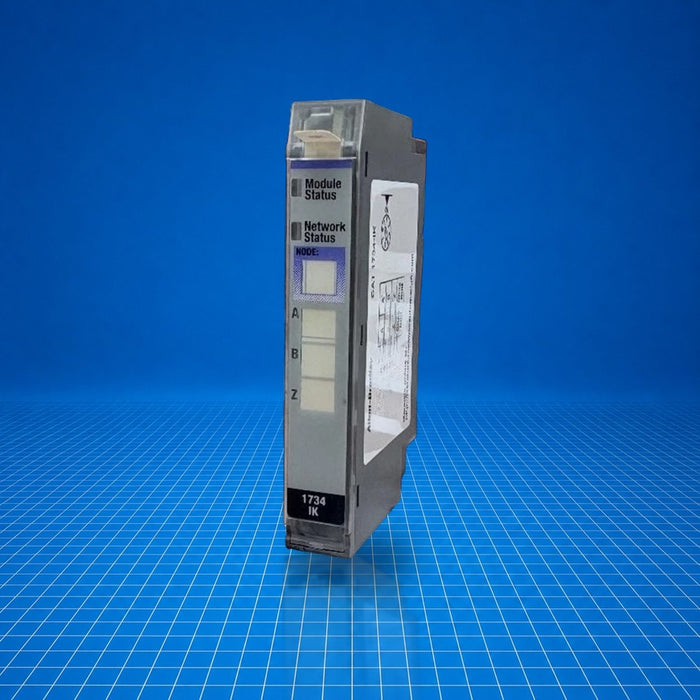

1734-IK Allen-Bradley
Original price
$375.00
-
Original price
$403.20
Original price
$375.00
$375.00
-
$403.20
Current price
$375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1734-IK is a 24 V DC incremental encoder interface module within Allen-Bradley's Point I/O 1734 specialty I/O platform. It functions as a single-channel quadrature counter for feedback signals from encoders, pulse generators, or mechanical limit switches. It mounts to standard 1734 wiring bases and integrates into POINTBus backplanes in compact I/O layouts. Typical uses include positioning and motion feedback in packaging, material handling, and machine tool systems. 1734-IK is designed for use in distributed control and on-machine encoder monitoring.
Best Suited For
- Incremental encoder feedback (single-phase A/B/Z)
- Distributed encoder interfacing in Point I/O racks
- Machine motion, position, or count monitoring
- On-machine or remote encoder signal acquisition
Input voltage
15-24 V DC
Inputs (A/B/Z)
1 channel (A/A, B/B, Z/Z)
MAX POINTBus current
160 mA
Power dissipation
1.5 W
Thermal dissipation
5.1 BTU/hour
Technical Specifications
I/O & Electrical
Input voltage range
15-24 V DC
Input current
6.1 mA @ 15 V DC; 10.2 mA @ 24 V DC
Off-state voltage max
≤ 1.8 V DC
On-state voltage min
> 12.5 V DC
Off-state current max
≤ 0.250 mA
POINTBus current max
160 mA
Power dissipation max
1.5 W
Thermal dissipation max
5.1 BTU/hour
Input type
A/A, B/B, Z/Z returns
Communication & Power
Counter outputs
24-bit binary (0…16 777 215) in 32-bit word
Data map
Produces 6 or 10 Bytes (scanner Rx); consumes 1 Byte (scanner Tx)
Physical & Environmental
Operating temperature
-20…55 °C (-4…131 °F)
Non-operating temperature
-4…85 °C
Relative humidity
5…95 % non-condensing
Shock (operating/non-operating)
30 g / 50 g
Vibration (operating)
5 g @ 10-500 Hz
Dimensions (H×W×L)
56 × 12 × 75.5 mm (2.21 × 0.47 × 2.97 in)
Weight
≈ 0.08 lb / 36 g
Mounting
DIN-rail via 1734-TB/TBS/TB3/TB3S wiring base
Enclosure type
Open-style
Certifications
IECExUKCAChina CCCRegistro Italiano NavaleMorocco DOC
