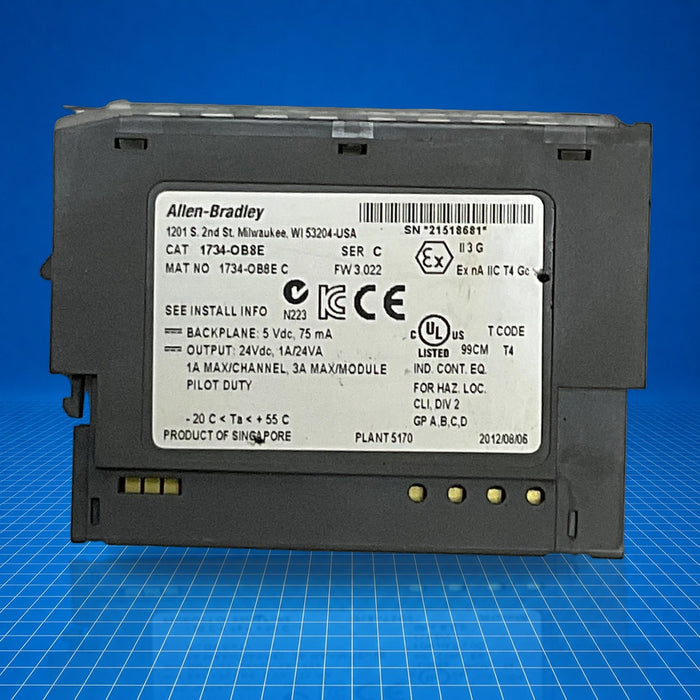

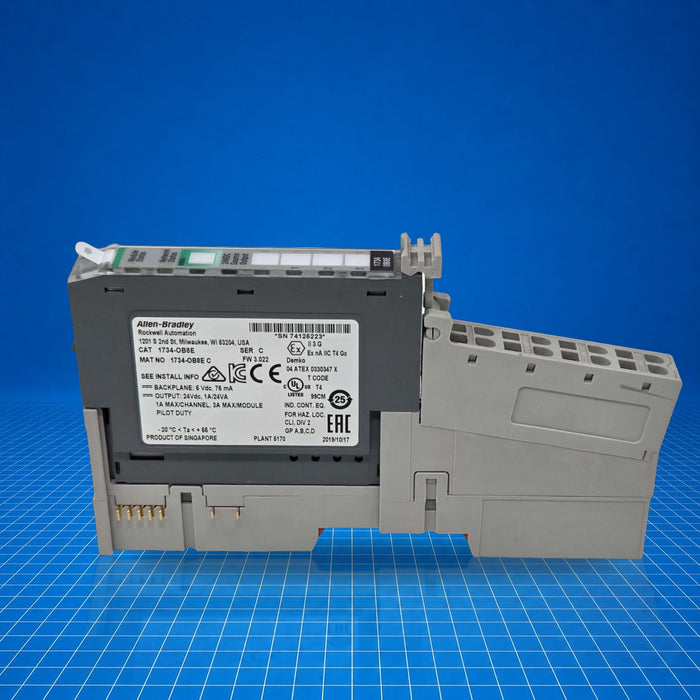

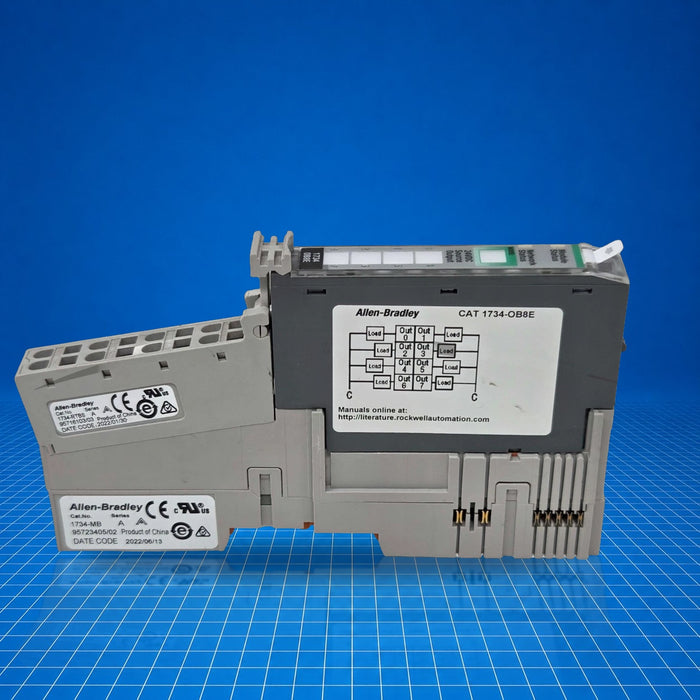

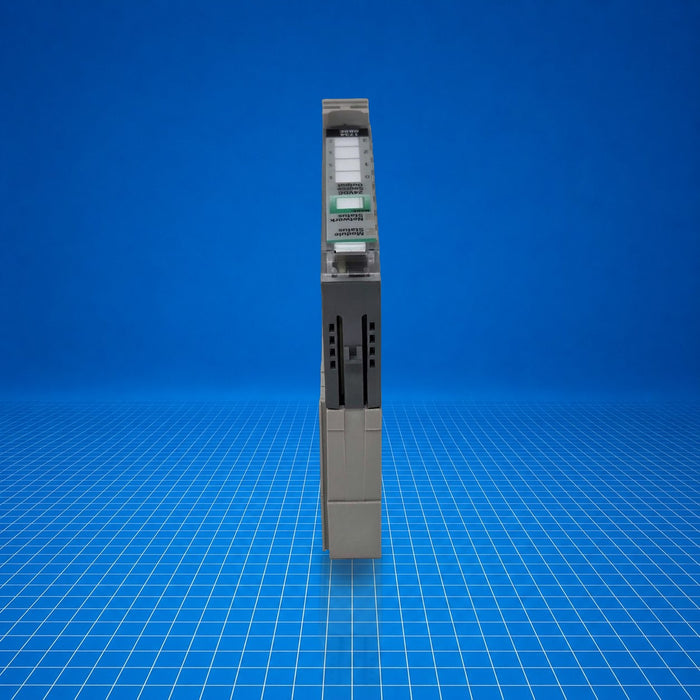

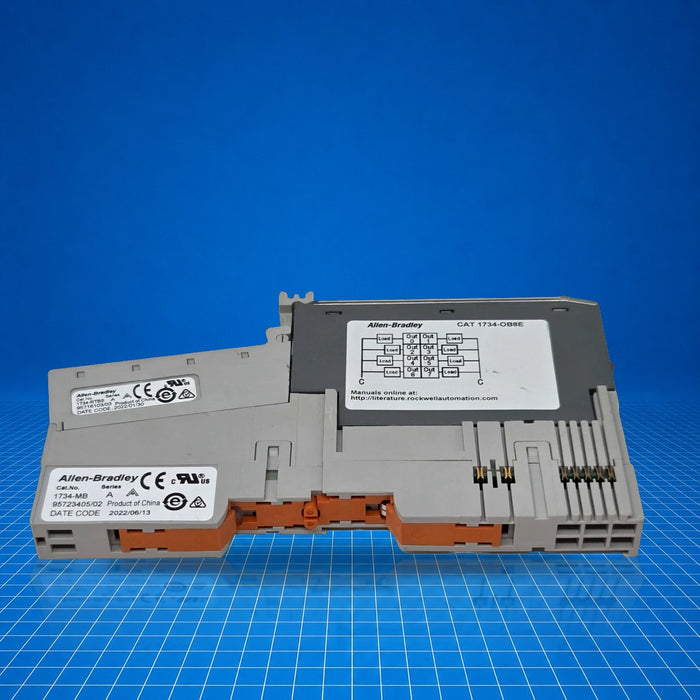

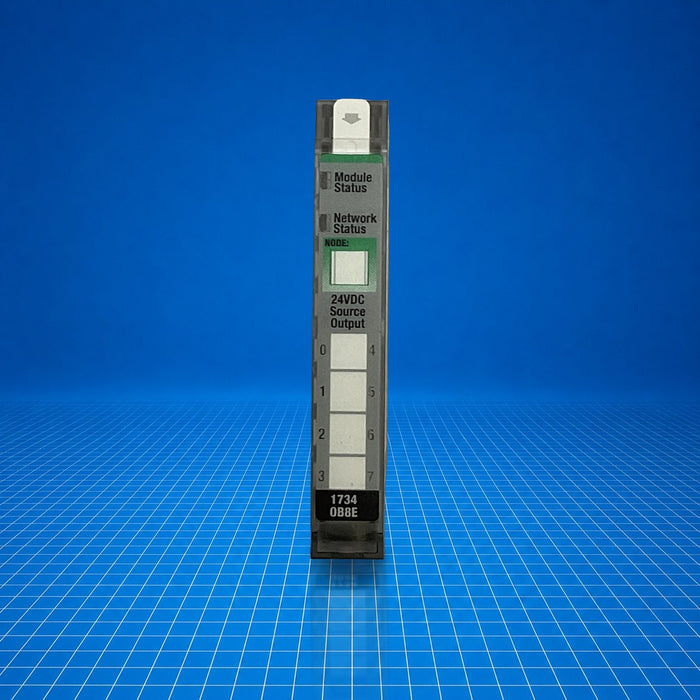

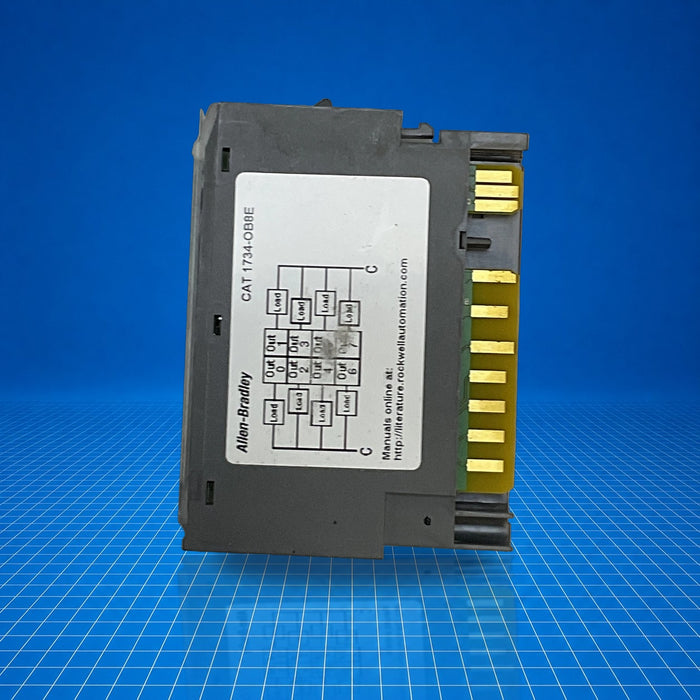

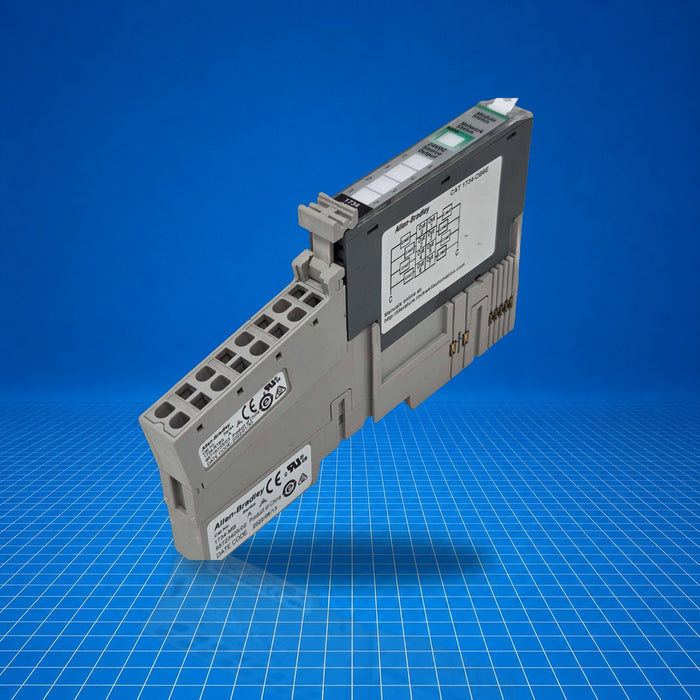

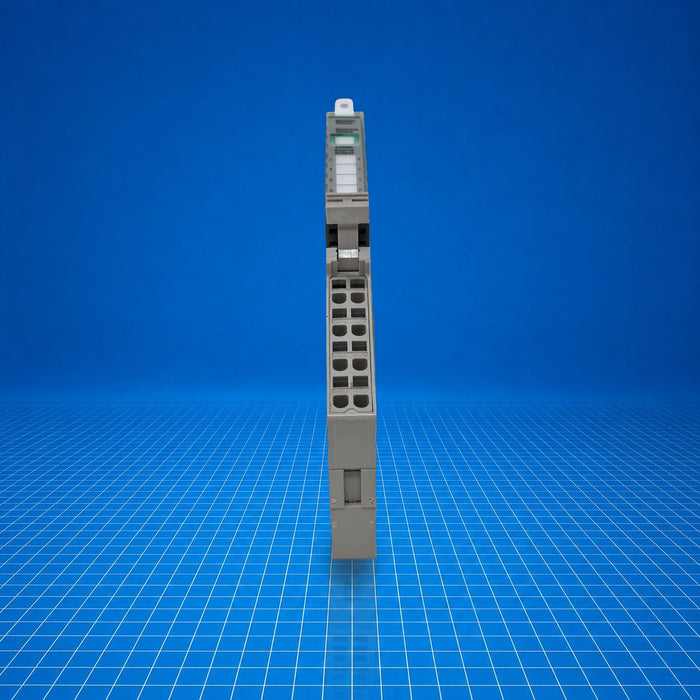

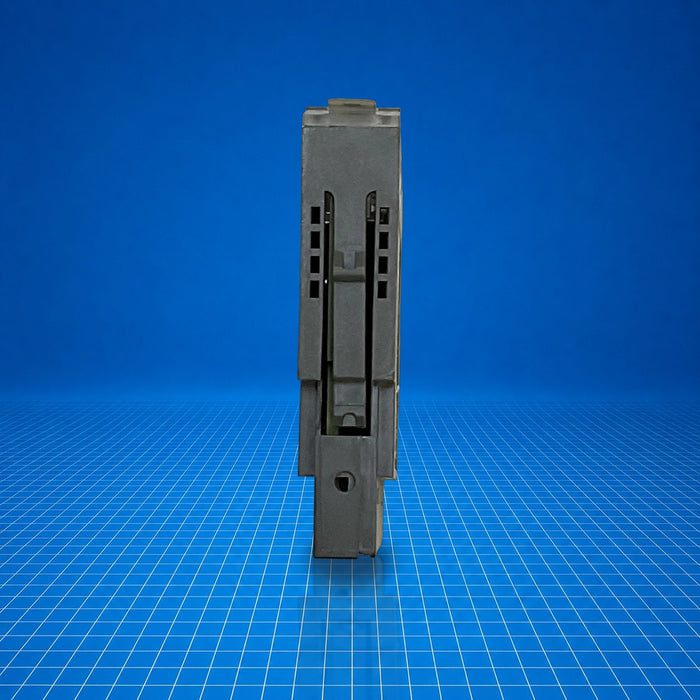

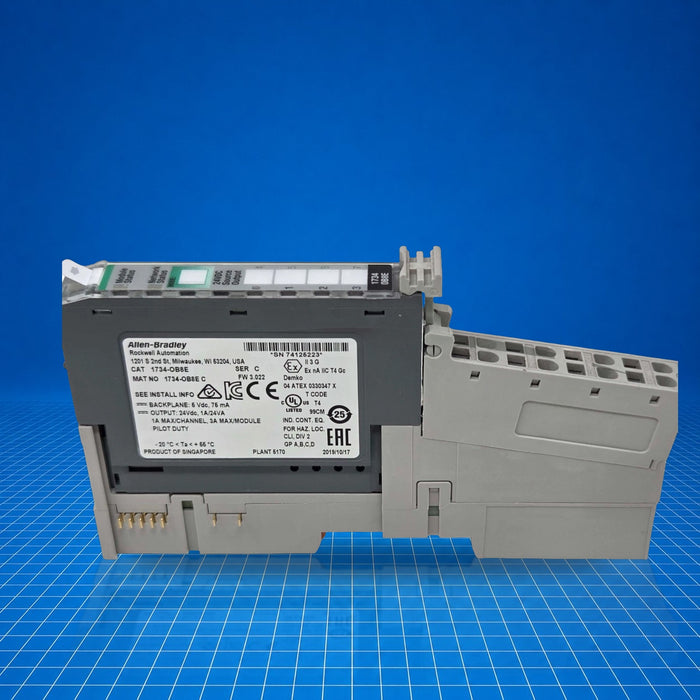

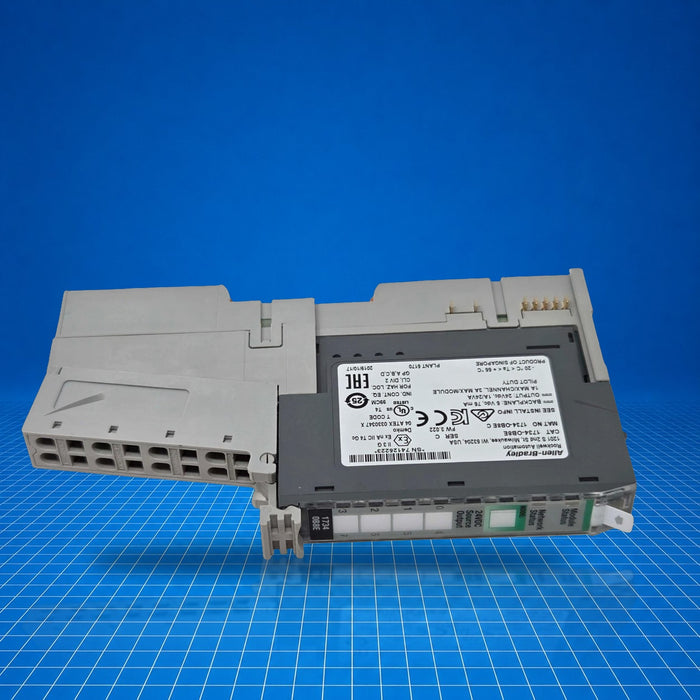

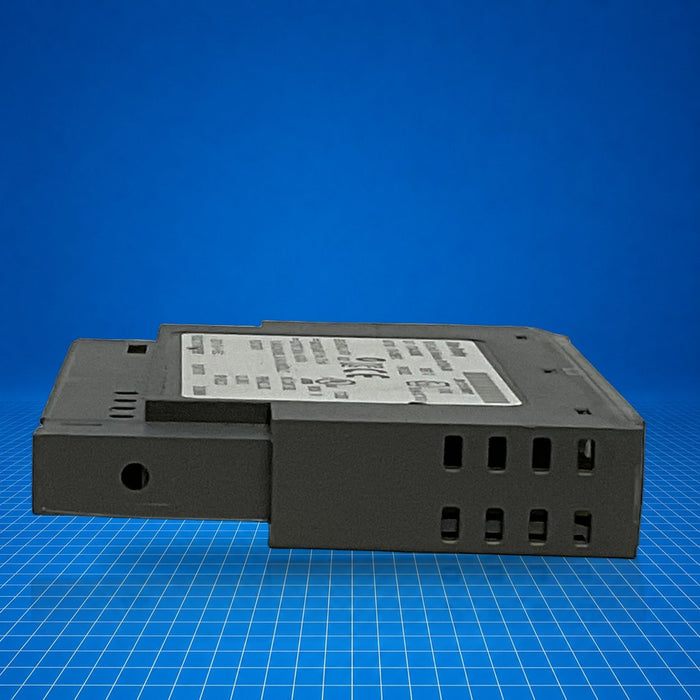

1734-OB8E Allen-Bradley
Original price
$400.00
-
Original price
$400.00
Original price
$400.00
$400.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1734-OB8E is an Allen-Bradley POINT I/O module providing eight non-isolated sourcing digital outputs at 24 V DC with electronic protection. It installs on the POINT I/O rail system and interfaces via POINTBus, enabling decentralized output control. Commonly used for driving solenoids, indicator lights, or low-power actuators in manufacturing and process applications, 1734-OB8E integrates diagnostics into POINT I/O architectures.
Best Suited For
- Distributed control output for solenoids or pilot devices
- POINT I/O systems requiring channel-level diagnostics
- Machine control on modular POINT I/O rails
- Replaceable output module in maintenance operations
Number of outputs
8
Output type
Sourcing, non-isolated
Output voltage
10…28.8 V DC
Max current per channel
1 A
POINTBus current
75 mA
Technical Specifications
I/O & Electrical
Output voltage range
10…28.8 V DC
Voltage drop, max
0.2 V DC
On-state current, per channel
1 A
POINTBus current
75 mA
Output filter time
0.1 ms (Off-to-On/On-to-Off)
Communication & Power
Power supply
24 V DC POINTBus
Physical & Environmental
Operating temperature
-20…55 °C (-4…131 °F)
Enclosure style
Open-style (none)
Dimensions (H×W×D)
2.21 × 0.47 × 2.97 inches
Weight
0.06 lbs (0.03 kg)
Certifications
UL Class I Div 2IECExUKCACCC
UL Class I Division 2 (Groups A, B, C, D); IECEx conformity; see Rockwell certificates
