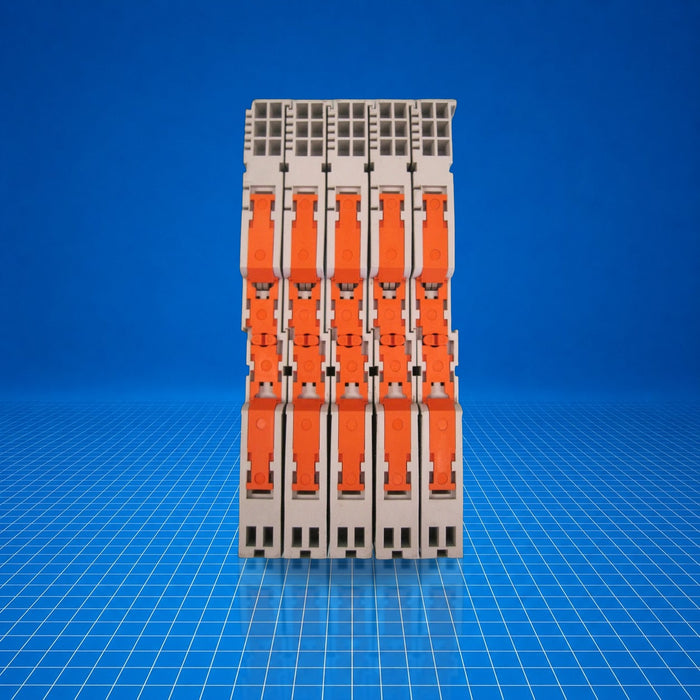

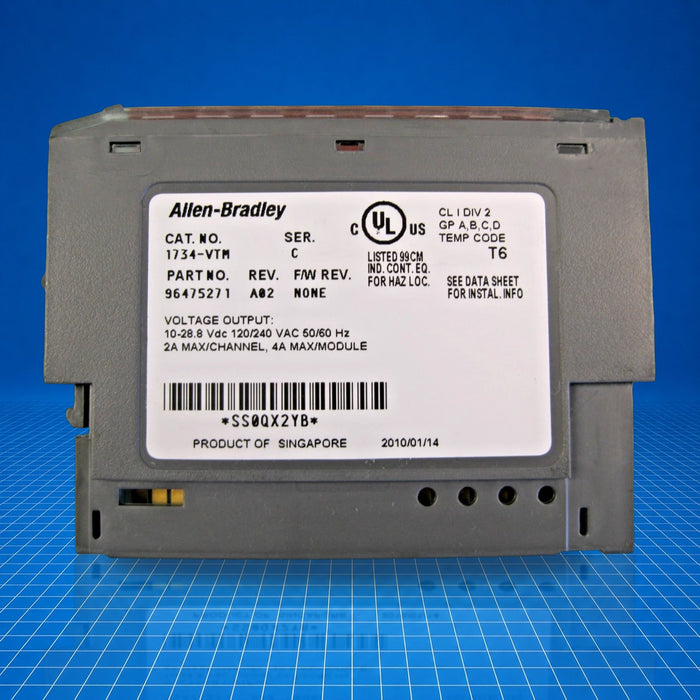

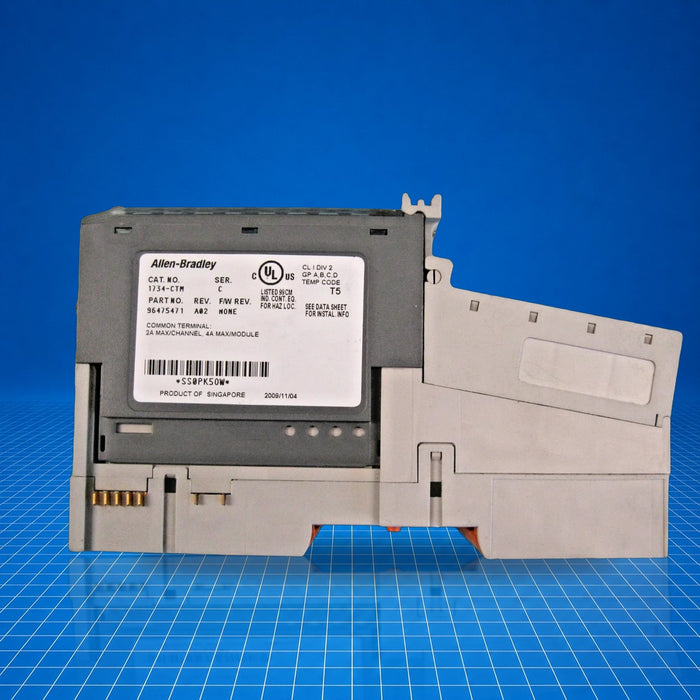

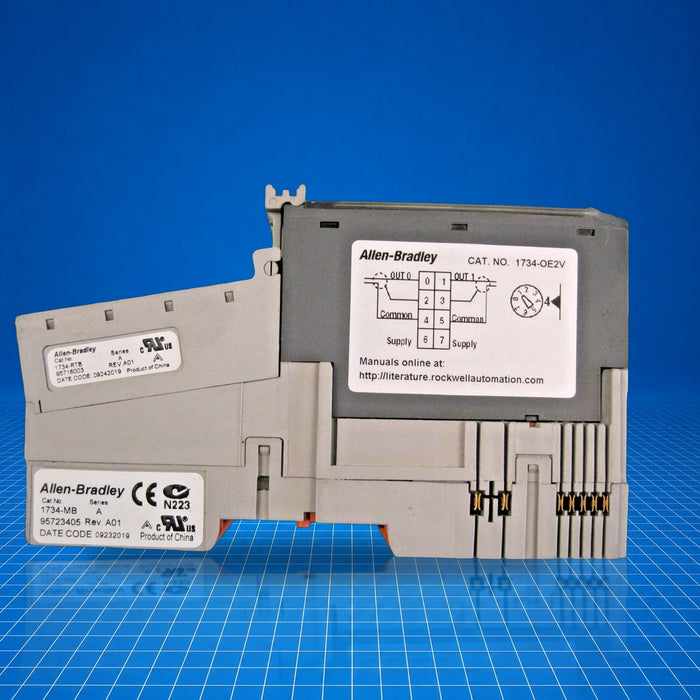

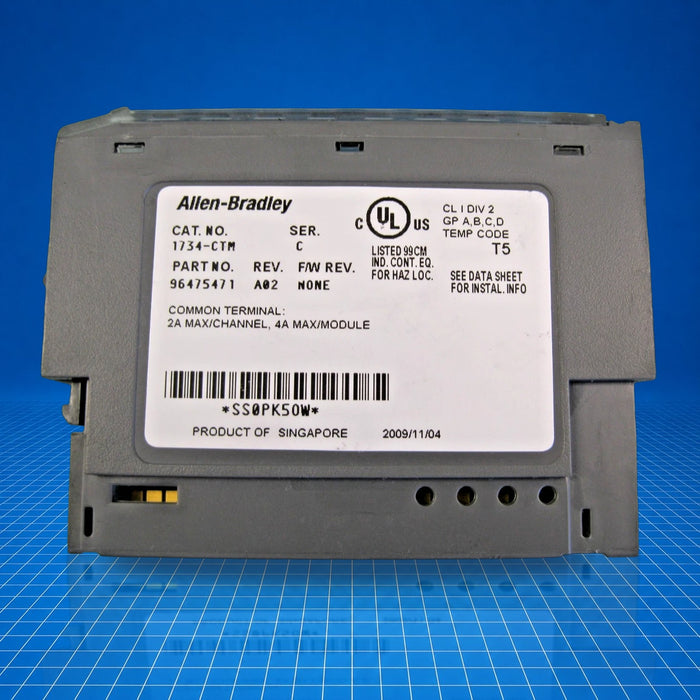

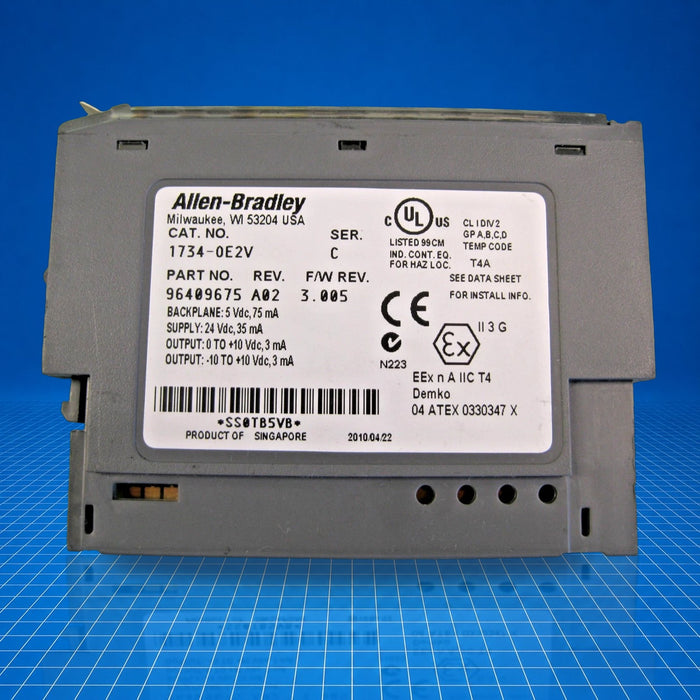

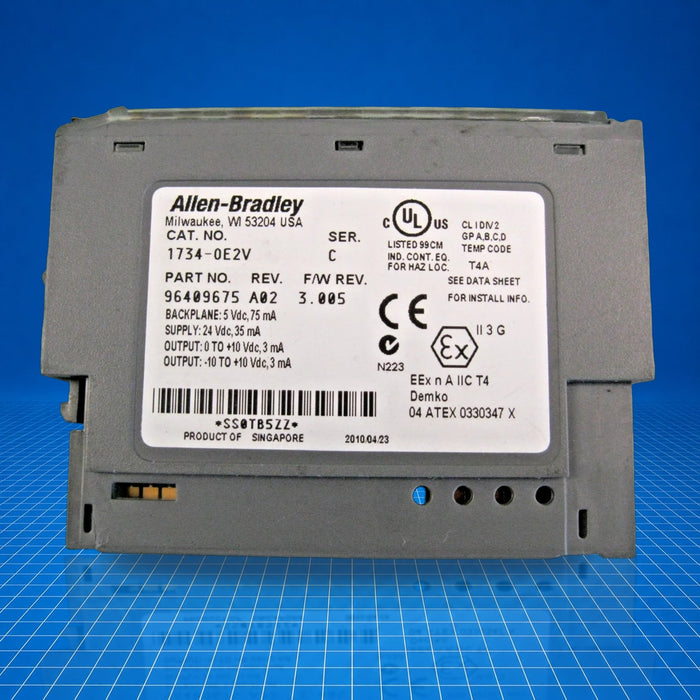

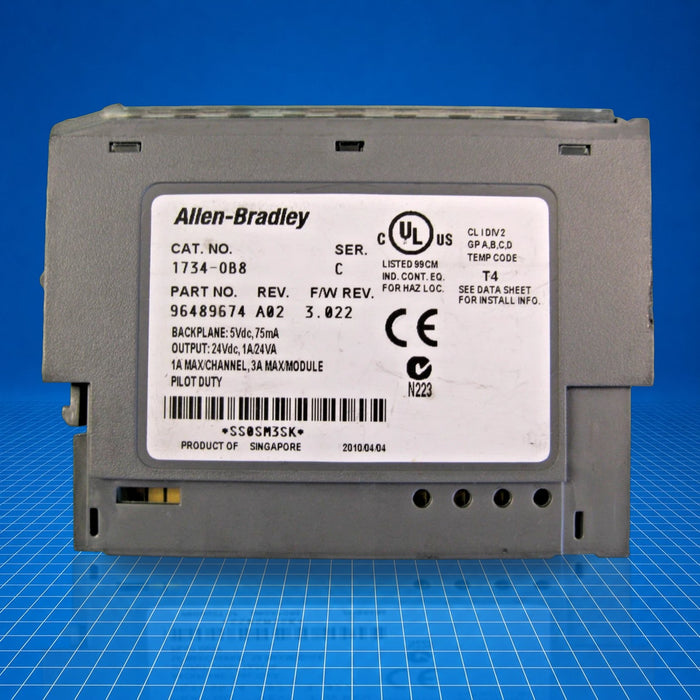

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

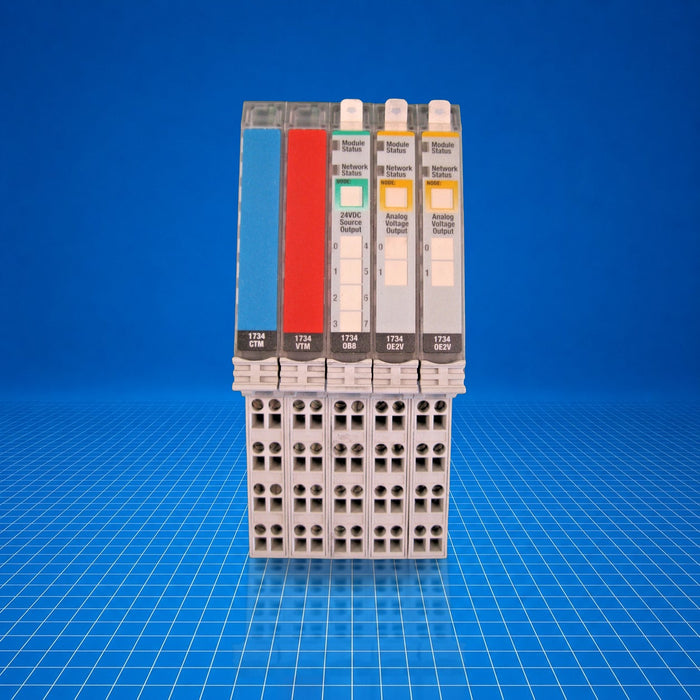

1734-OE2V Allen-Bradley
Original price
$375.00
-
Original price
$525.00
Original price
$375.00
$375.00
-
$525.00
Current price
$375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1734-OE2V is an Allen-Bradley POINT I/O analog output module providing two single-ended voltage outputs. It operates on the POINT I/O platform and delivers a user-configurable unipolar (0…10 V) or bipolar (±10 V) analog signal for control and actuation purposes. The module integrates into distributed I/O systems for machine control, process modulation, and analog signaling tasks, enabling control system expansion at remote or on-machine locations.
Best Suited For
- Distributed analog control loops
- Remote voltage output monitoring
- On-machine control applications
- POINT I/O system expansion
Outputs
2 voltage channels
Output range
0…10 V or ±10 V
Resolution
14-bit (1.28 mV/count)
POINT I/O voltage
24 V DC
Technical Specifications
I/O & Electrical
Number of outputs
2 single-ended, non-isolated voltage channels
Output range
0…10 V user-configurable or ±10 V user-configurable
Resolution
14 bit (13 plus sign), 1.28 mV/count
Current load on voltage output
3 mA
Communication & Power
POINTBus supply
24 V DC via POINT I/O backplane
Physical & Environmental
Operating temperature
-20…55 °C (-4…131 °F)
Certifications
China CCCIECExUKCARegistro Italiano Navale
Refer to product label for certifications; available certs include China CCC, IECEx, UKCA, Registro Italiano Navale (as of May 19, 2026)
