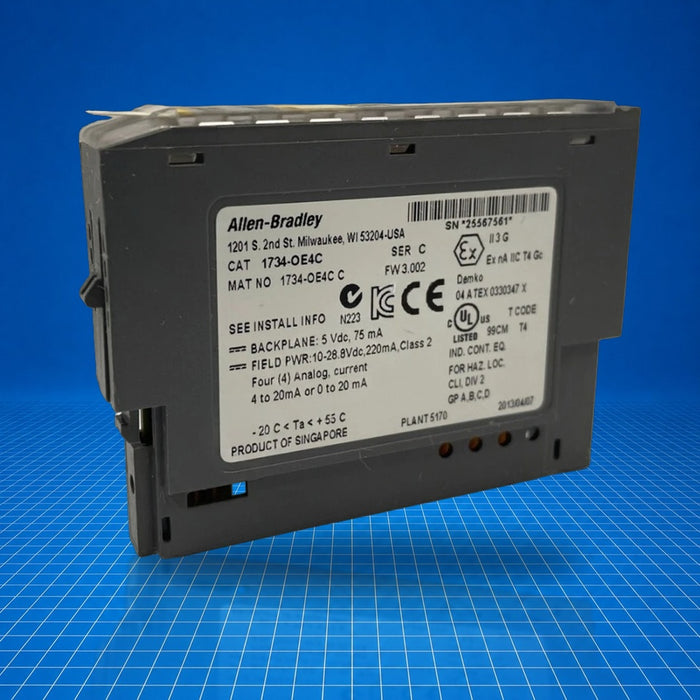

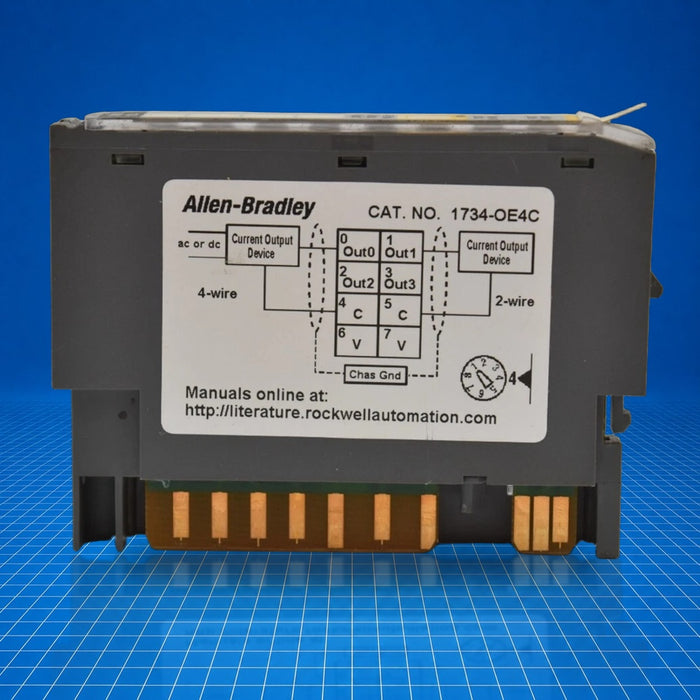

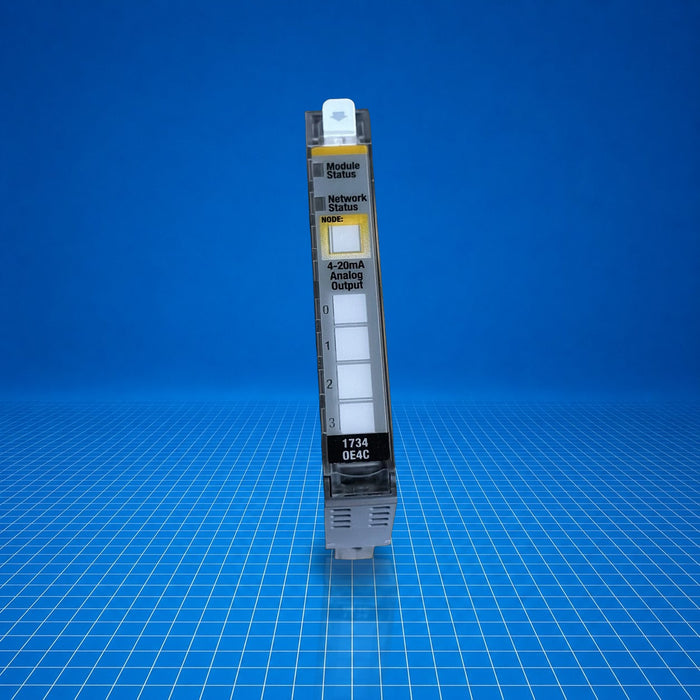

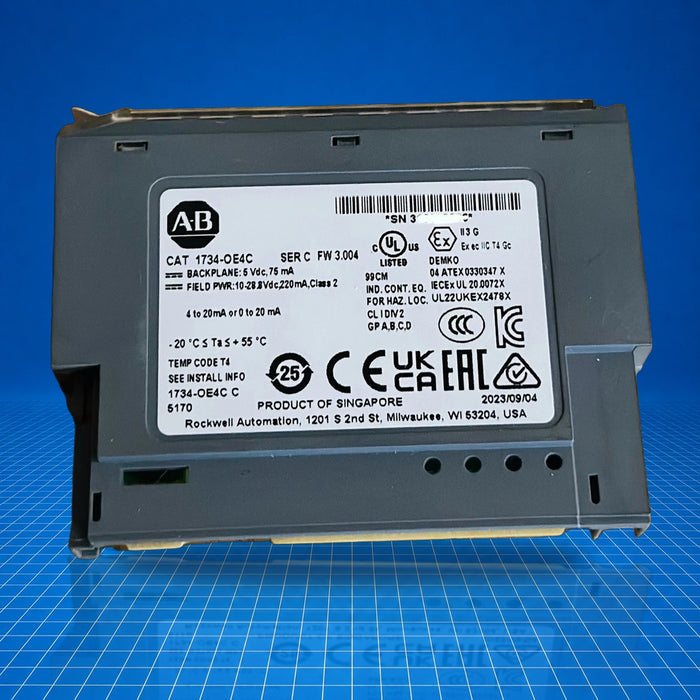

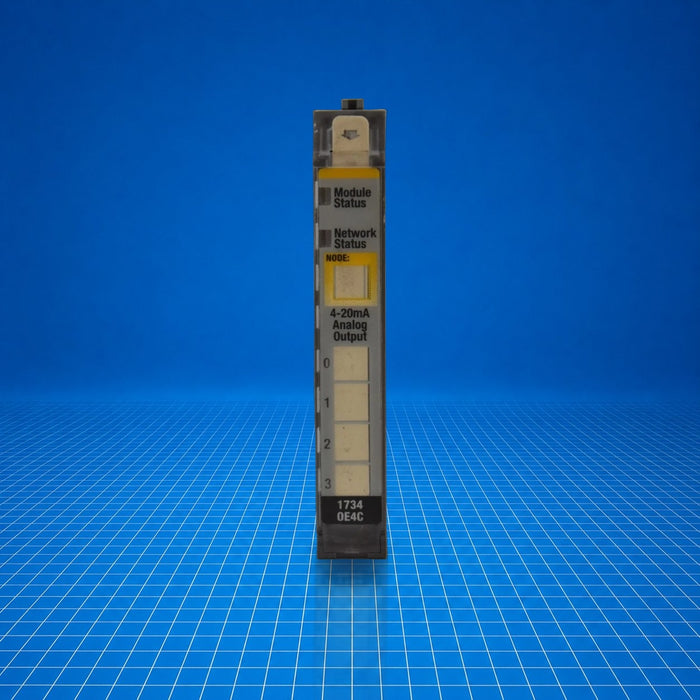

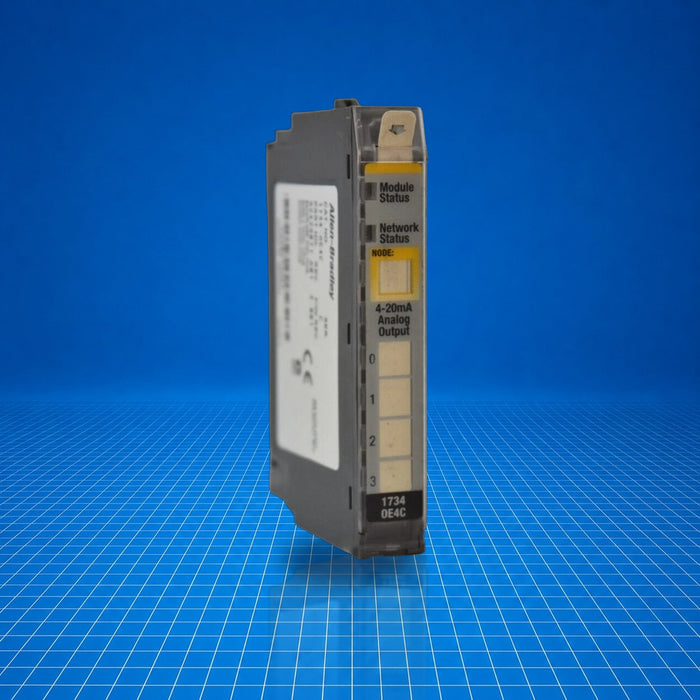

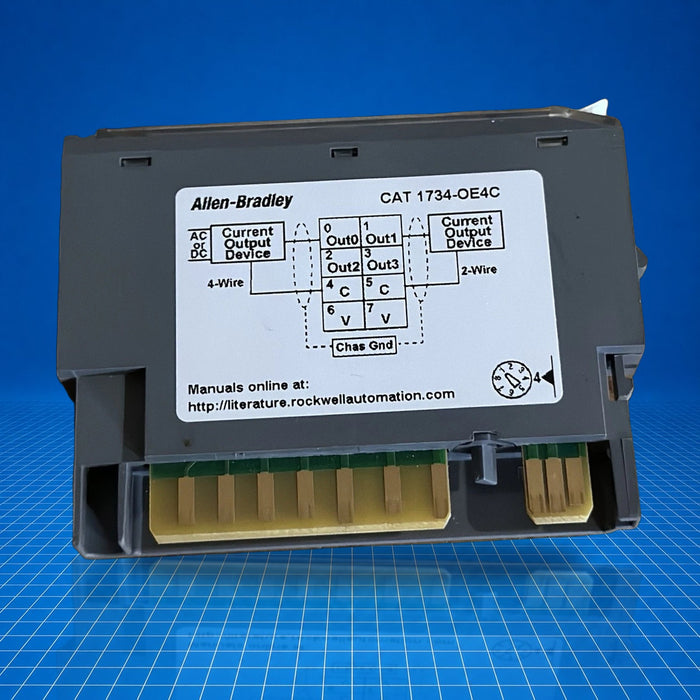

1734-OE4C Allen-Bradley
Original price
$359.97
-
Original price
$525.00
Original price
$359.97
$359.97
-
$525.00
Current price
$359.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1734-OE4C is an Allen-Bradley POINT I/O module that provides four single-ended analog current outputs (0-20 mA or 4-20 mA). It integrates into POINT I/O distributed I/O systems, communicating via the POINTBus backplane and handling D/A conversion for process control loops, analog actuator drive, or modulation tasks. Typical uses include analog signal generation for control valves, variable frequency drives, process instrumentation, and feedback loops in manufacturing or process automation. 1734-OE4C meets industrial temperature and mounting requirements.
Best Suited For
- Analog control for valves, proportional devices
- Process loop control with 4-20 mA standards
- Integration into POINT I/O distributed I/O systems
- DIN-rail compact installations
Number of outputs
4 analog, single-ended
Output range
0-20 mA or 4-20 mA
POINTBus current
75 mA @ 5 V DC
Output resolution
16-bit over 0-21 mA
Technical Specifications
I/O & Electrical
Input voltage
10…28.8 V DC
POINTBus current
75 mA @ 5 V DC
Output resolution
16 bits over 0…21 mA (0.32 µA/count)
Absolute accuracy
0.4 % FS (0.1 % if calibrated)
Conversion rate
1 µs
Surge current
2 A for 10 ms, repeatable every 3 s
Resistive load
0…750 Ω
Power dissipation
1.86 W @ 750 Ω load; 2.15 W @ 0 Ω
Communication & Power
Data format
Signed integer
Physical & Environmental
Dimensions (H×W×L)
2.21 × 0.47 × 2.97 in (56.0 × 12.0 × 75.5 mm)
Weight
0.13 lb (36 g)
Operating temperature
-20 to 55 °C
Storage temperature
-40 to 85 °C
Operating shock
30 g
Storage shock
non-operating 50 g
Relative humidity
95 % non-condensing
