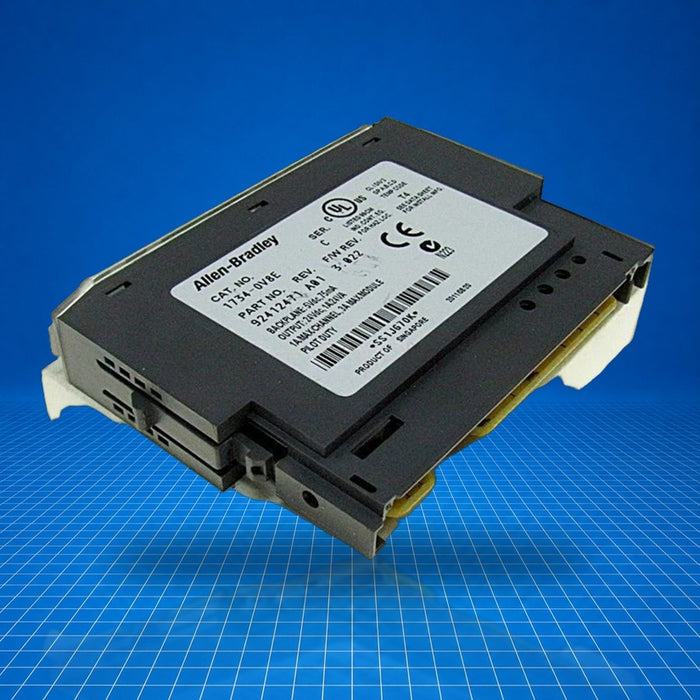

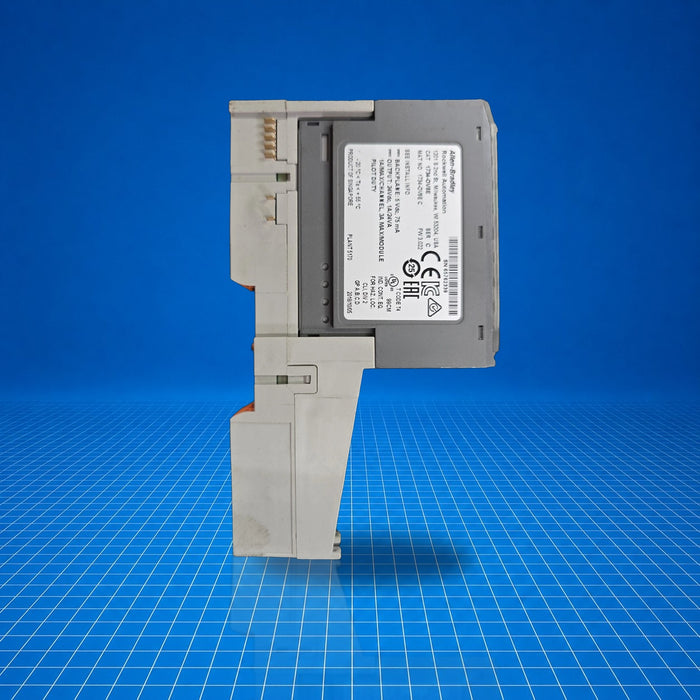

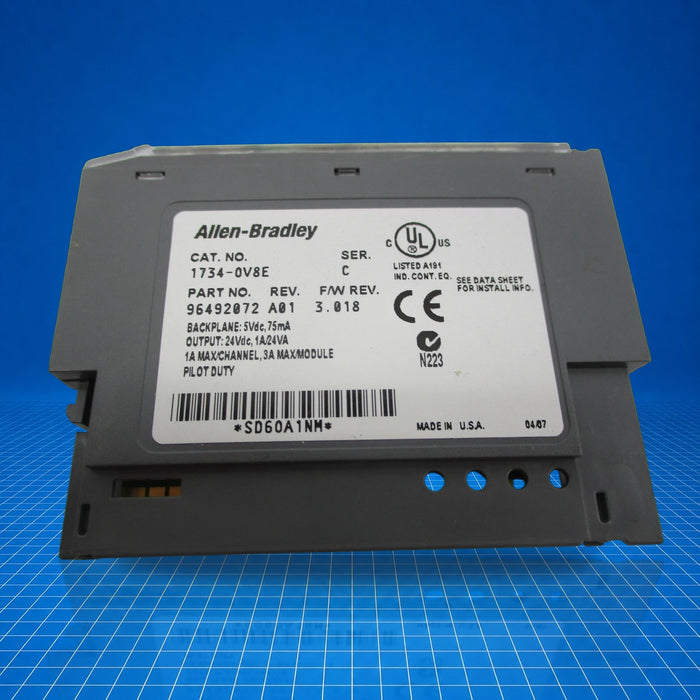

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1734-OV8E Allen-Bradley
Original price
$312.00
-
Original price
$368.55
Original price
$312.00
$312.00
-
$368.55
Current price
$312.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1734-OV8E is an 8-channel sinking (NPN) protected digital output module from the Point I/O 1734 family. It provides eight non-isolated sink outputs (each electronically protected to 1 A, 3 A total), connects via a POINTBus terminal base, and operates on 24 V DC. It is typically employed in distributed control architectures to drive DC loads such as indicators, relays, or small actuators, and is suited for panel-mounted or on-machine systems within discrete or hybrid industrial environments.
Best Suited For
- Distributed output expansion in Point I/O systems
- Driving DC loads (indicators, relays, small actuators)
- Environments requiring electronic over-current protection
- Compact I/O installations on DIN-rail terminal bases
Channels
8 sink outputs
Output rating
1 A per channel, 3 A total
Voltage range
10…28.8 V DC
POINTBus current
75 mA at 5 V DC
Operating temperature
-20…55 °C
Technical Specifications
I/O & Electrical
Channels
8 sinking (non-isolated) outputs
Output current
1 A per channel, 3 A total
Nominal voltage
24 V DC
Voltage range
10…28.8 V DC
POINTBus current
75 mA at 5 V DC
Communication & Power
Electronic protection
Yes, 1 A per channel
Voltage drop
0.7 V (max) under max load
Surge current
2 A for 10 ms every 3 s
POINTBus power origin
Supplied via adapter or terminal base internal bus
Physical & Environmental
Operating temperature
-20…55 °C (-4…131 °F)
Weight
0.06 kg (0.13 lb)
Dimensions
2.21 in × 0.47 in × 2.97 in
