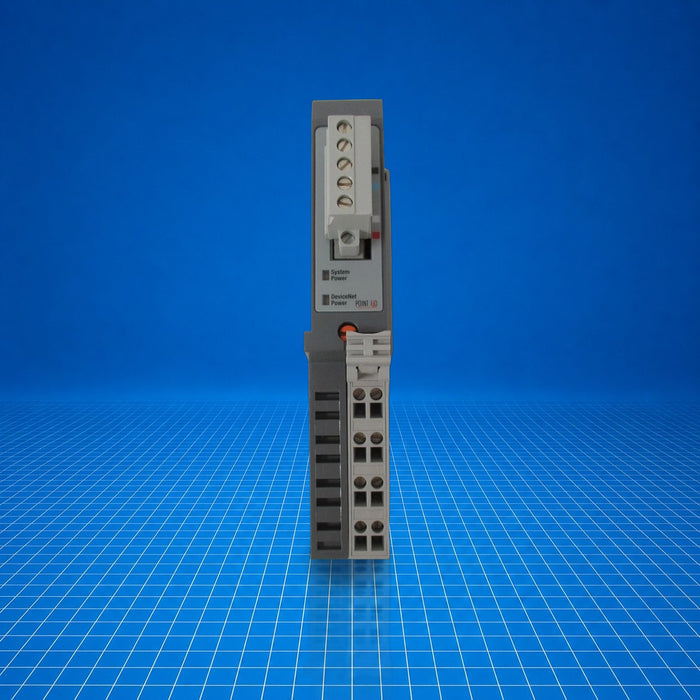

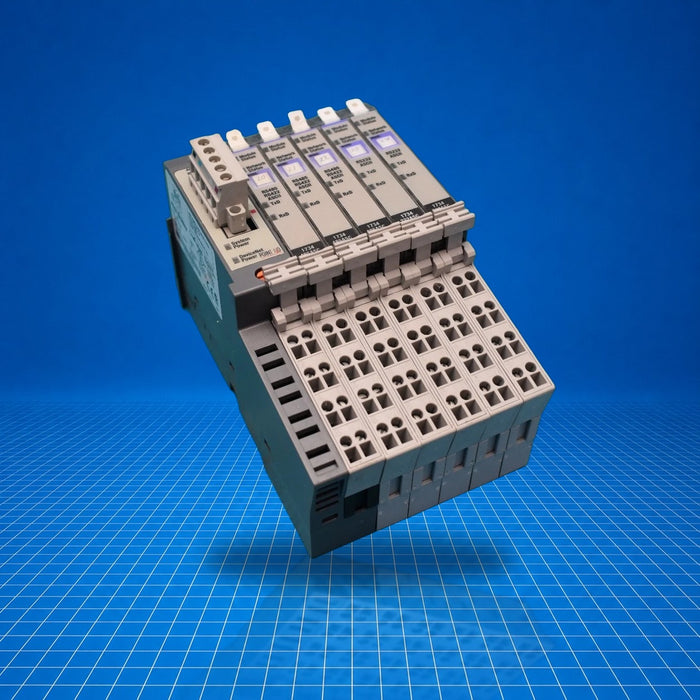

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1734-PDN Allen-Bradley
Original price
$378.00
-
Original price
$400.00
Original price
$400.00
$378.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

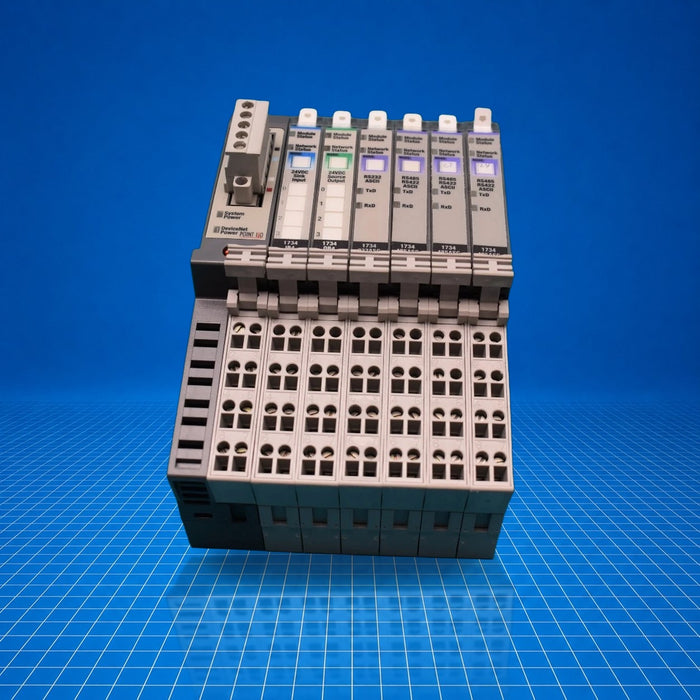

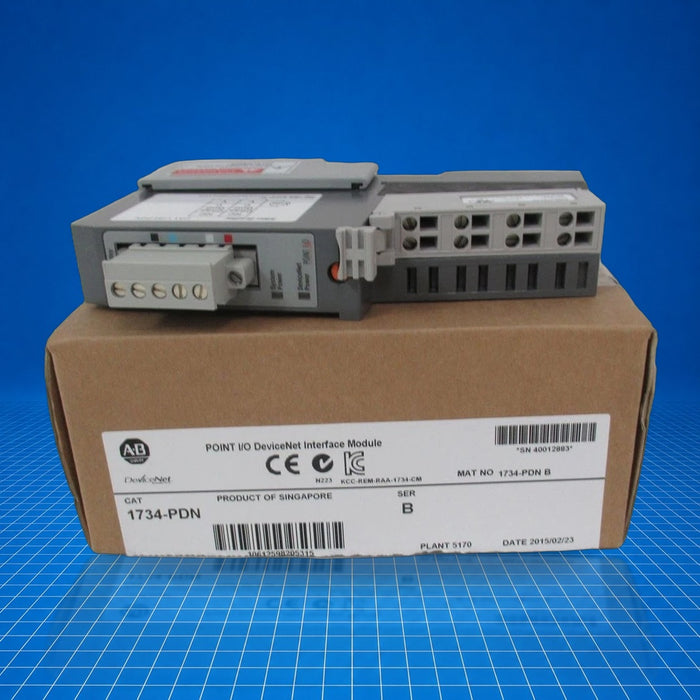

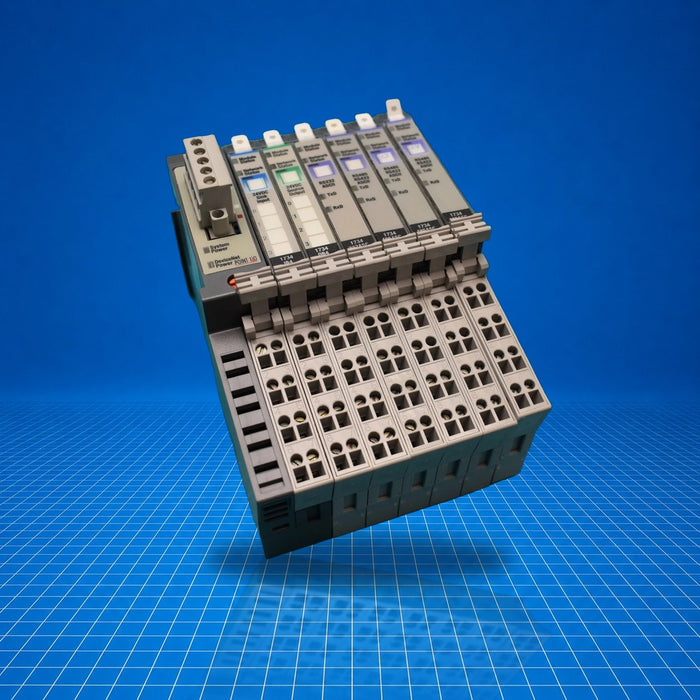

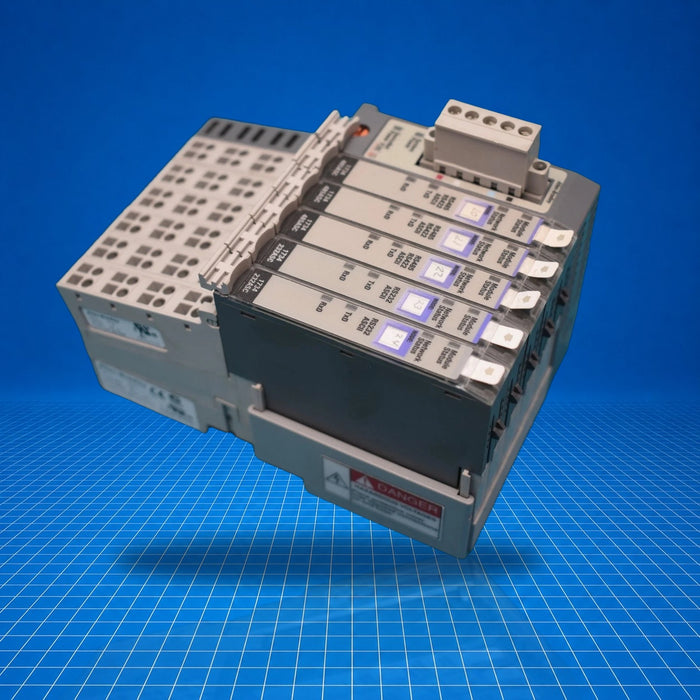

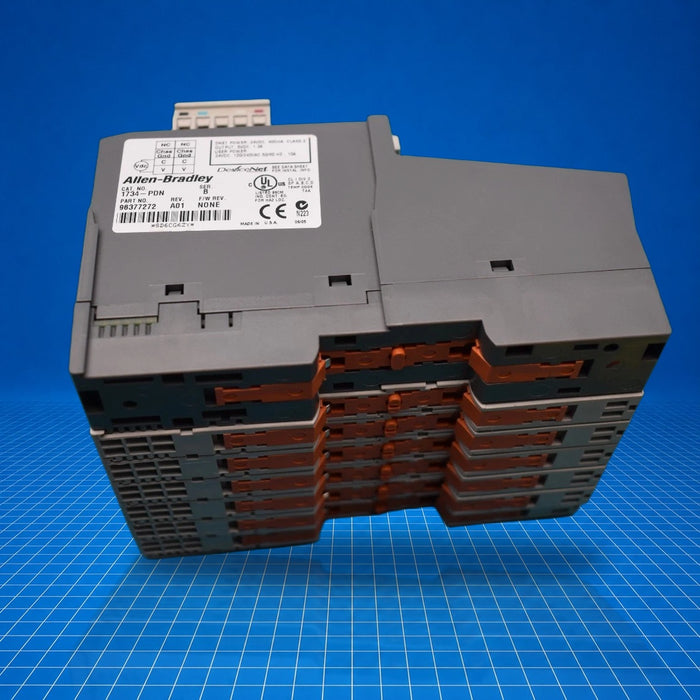

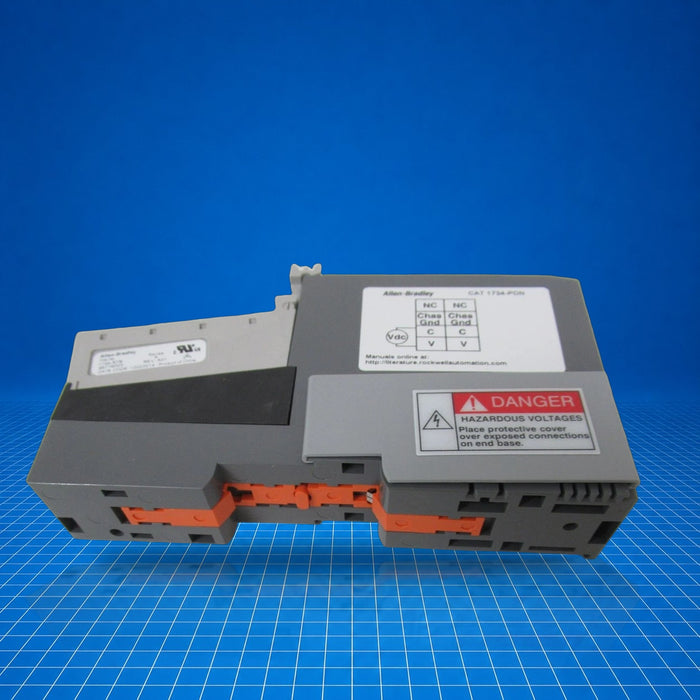

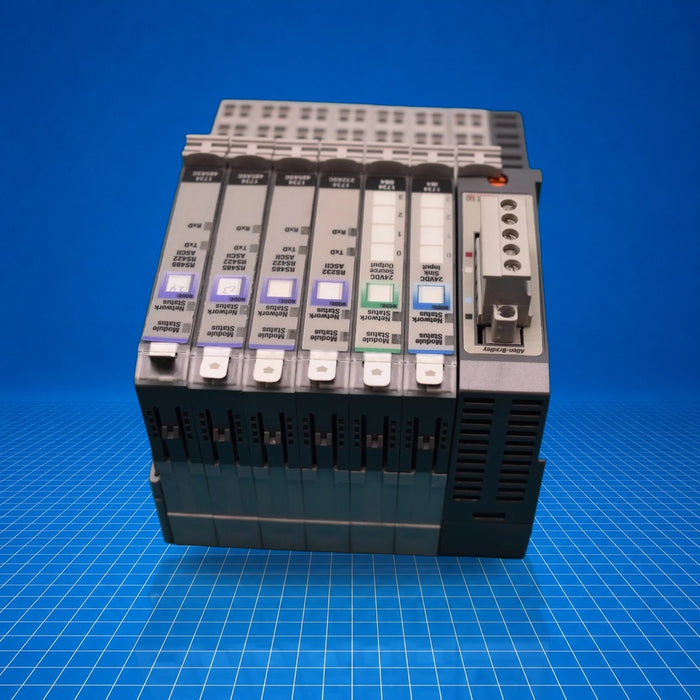

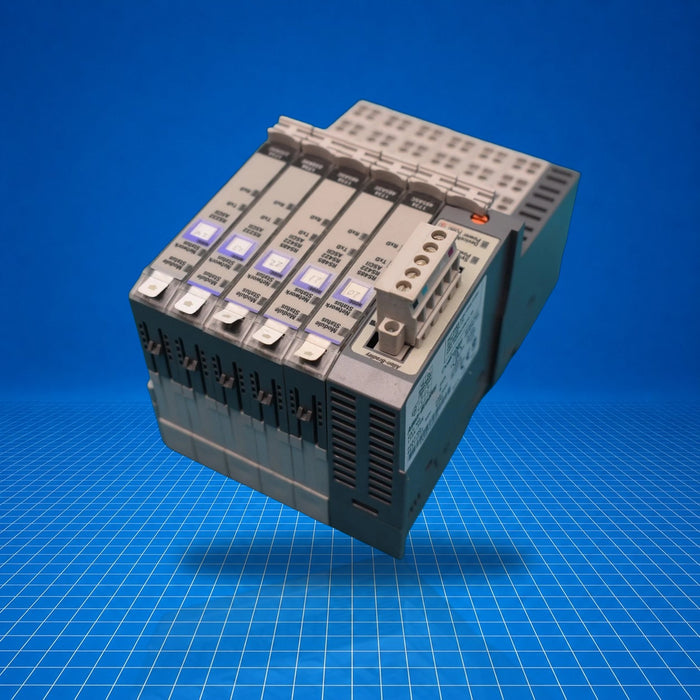

The 1734-PDN is an Allen-Bradley POINT I/O DeviceNet interface module serving as the starter module on the left side of a POINT I/O assembly. It provides DeviceNet communications and interfaces the POINTBus backplane. It supplies DeviceNet power and PointBus output power, enabling modular I/O expansion. Typical use involves connecting Point I/O systems to DeviceNet networks for machine control, line automation, or distributed I/O architectures in industrial environments. 1734-PDN is essential where DeviceNet integration is required.
Best Suited For
- POINT I/O systems requiring DeviceNet network integration
- Distributed I/O control on DeviceNet
- Starter module in DeviceNet-based I/O racks
- Modular I/O installations in machinery or processing equipment
Communication protocol
DeviceNet
Input voltage (DeviceNet)
24 V DC (+4% = 25 V DC) @ 400 mA max
PointBus output current
1.3 A @ 5 V DC ±5%
Power consumption
8.0 W @ 25 V DC
Operating temperature
-20…55 °C (-4…131 °F)
Technical Specifications
I/O & Electrical
DeviceNet input voltage range
11…25 V DC (DeviceNet spec)
DeviceNet inrush current
6 A for 5 ms
PointBus output current, max
1.3 A @ 5 V DC ±5% (4.75…5.25 V)
Isolation voltage (continuous)
50 V continuous; tested to 2600 V DC for 60 s
Communication & Power
Communication protocol
DeviceNet
Communication rate
125 kbit/s (500 m max), 250 kbit/s (250 m), 500 kbit/s (100 m)
Power consumption, max
8.0 W @ 25 V DC
Power dissipation, max
1.2 W @ 25 V DC
Thermal dissipation, max
4.1 BTU/h @ 25 V DC
Physical & Environmental
Module location
Starter module - left side of POINT I/O system
Operating temperature
-20…55 °C (-4…131 °F)
Mounting / dimensions
76.2 mm × 25.4 mm × 133.4 mm (3.0 in × 1.0 in × 5.25 in)
Indicators
2 green status LEDs: PointBus 5 V power, DeviceNet 24 V power
Certifications
China CCCIECExRegistro Italiano Navale
Certified as of May 19, 2026: China CCC, Registro Italiano Navale, IECEx scheme
