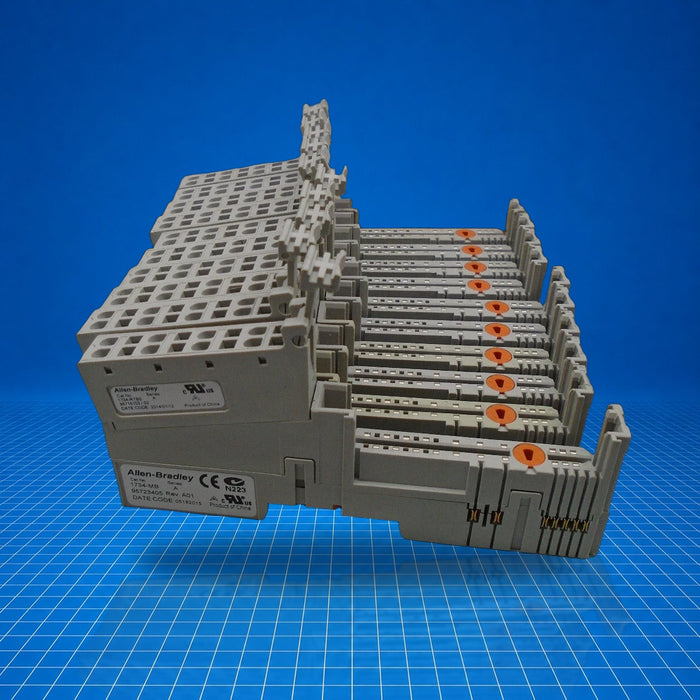

1734-TBS Allen-Bradley
Original price
$400.00
-
Original price
$400.00
Original price
$400.00
$400.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1734-TBS is a Point I/O terminal base from Allen-Bradley, part of the 1734 modular I/O platform. It provides spring-clamp style field terminal connections for up to eight I/O channels and serves as the mounting and wiring interface for Point I/O modules. Within an industrial control system, it supplies field-wiring connectivity and mechanical support for I/O modules, facilitating distributed I/O deployment close to field devices. Typical applications include machinery control panels, OEM equipment, and environments requiring compact, distributed I/O near sensors and actuators.
Best Suited For
- Distributed Point I/O installations
- Compact control panels with multiple I/O modules
- Field-wiring environments needing spring-clamp terminals
- Installations requiring reliable module base support
Terminals
8
Clamp type
Spring-clamp
Operating temperature
-20 to 55 °C
Non-operating temperature
-40 to 85 °C
Shock (operating / non-operating)
30 G / 50 G
Technical Specifications
I/O & Electrical
Number of terminals
8
Physical & Environmental
Clamp type
Spring-clamp
Operating temperature
-20 to 55 °C
Non-operating temperature
-40 to 85 °C
Non-condensing humidity
5 to 95 %
Shock (operating)
30 G
Shock (non-operating)
50 G
Vibration
5 G @ 10-500 Hz
Enclosure type
Open
Weight
0.25 lbs (0.11 kg)
Screw torque
0.6 Nm
