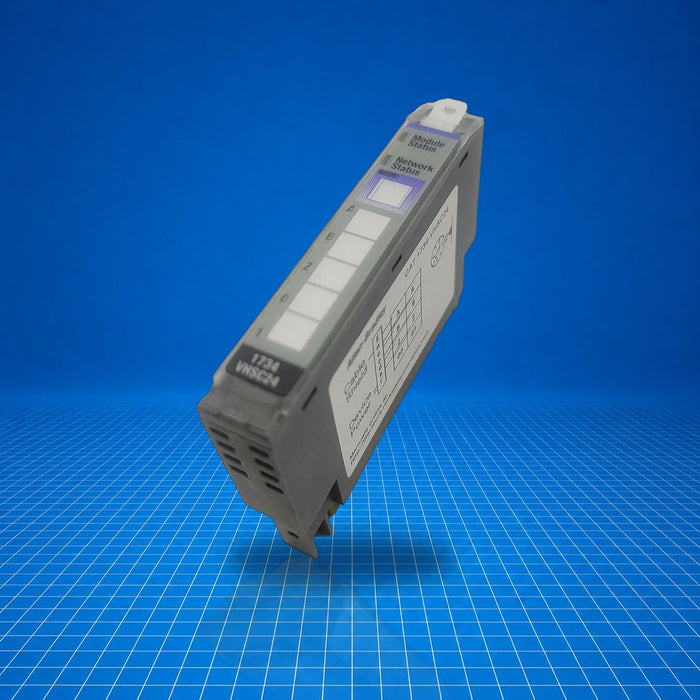

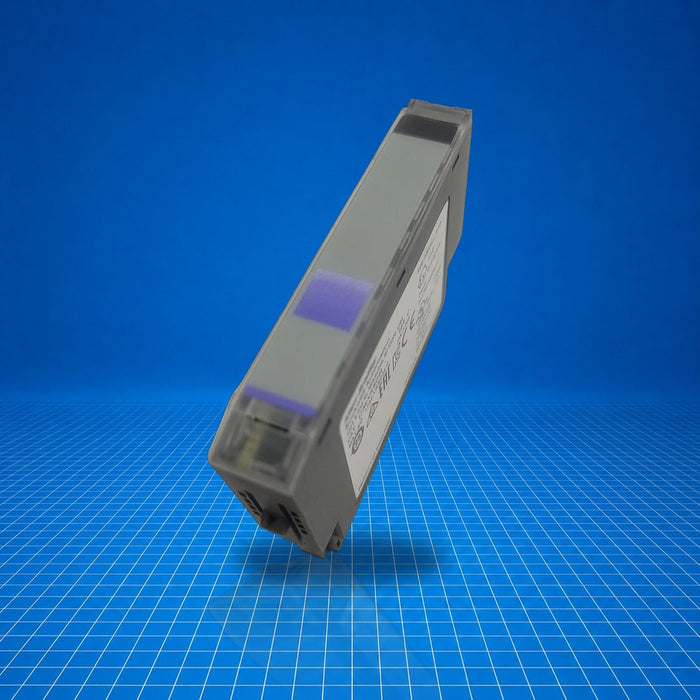

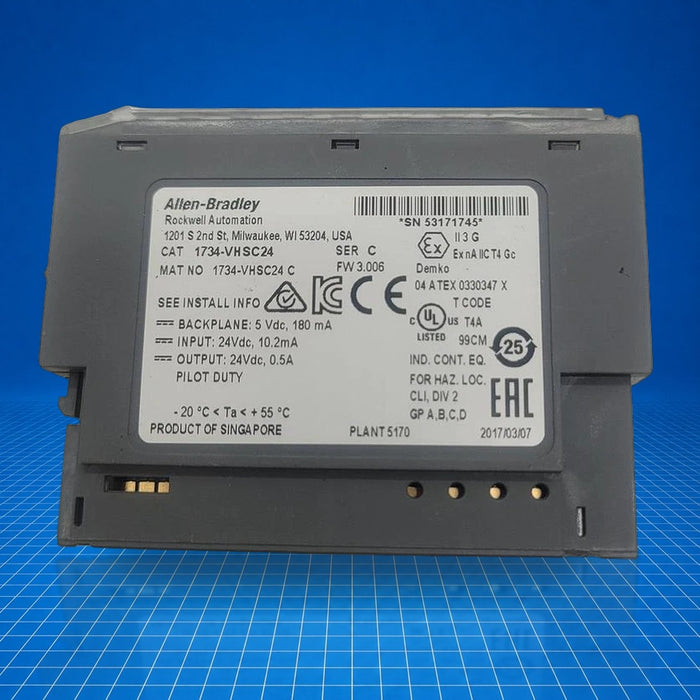

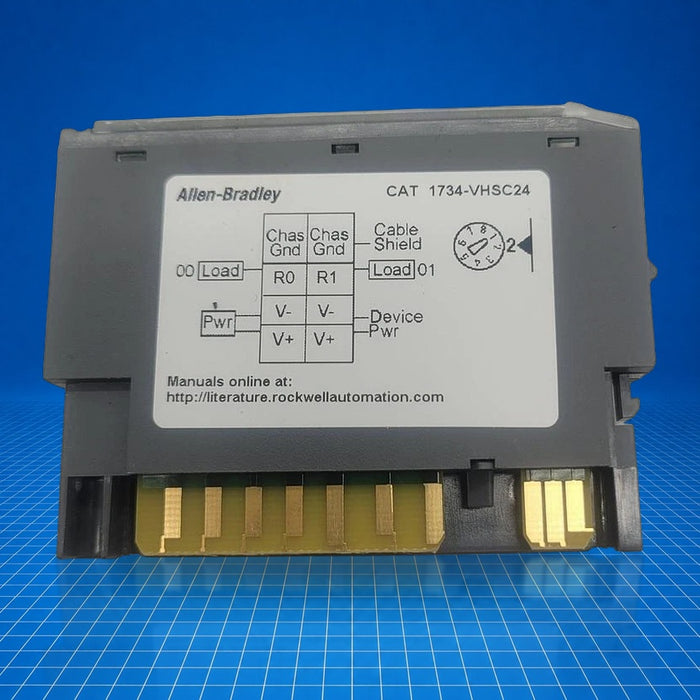

1734-VHSC24 Allen-Bradley
Original price
$400.00
-
Original price
$480.00
Original price
$400.00
$400.00
-
$480.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1734-VHSC24 is an Allen-Bradley POINT I/O very-high-speed counter module providing a single-channel 24 V DC counter with two source-type outputs. Designed for integration into POINT I/O systems, it handles fast pulse counting and encoder inputs within distributed control architectures. Typical applications include high-speed machining processes, shaft rotation measurement, and conveyor belt monitoring in industrial automation systems. Part 1734-VHSC24 supports advanced filter settings and operates reliably in demanding factory environments.
Best Suited For
- High-speed pulse counting at up to 1 MHz
- Encoder X2/X4 input configurations
- On-machine distributed I/O integration
- Shaft or motion feedback monitoring
Channel count
1
Output type
2 source-type outputs
Max input frequency
1 MHz (counter mode)
Input voltage
24 V DC
Technical Specifications
I/O & Electrical
Input voltage
24 V DC
Max off-state input current
≤ 0.250 mA
Min on-state input current
≥ 5 mA
Max on-state input current
10.2 mA @ 24 V DC
Min on-state input voltage
≥ 12.5 V DC
Max input frequency
1 MHz (counter/X1), 500 kHz (X2), 250 kHz (X4)
Communication & Power
Filter settings
Off; 10 μs (50 kHz); 100 μs (5 kHz); 1.0 ms (500 Hz); 10.0 ms (50 Hz)
Max power dissipation
1.9 W (at rated load)
Max heat dissipation
6.5 BTU/hr (at rated load)
Isolation voltage
50 V continuous; 1100 V DC for 60 s (basic insulation)
Physical & Environmental
Terminal base compatibility
1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS
