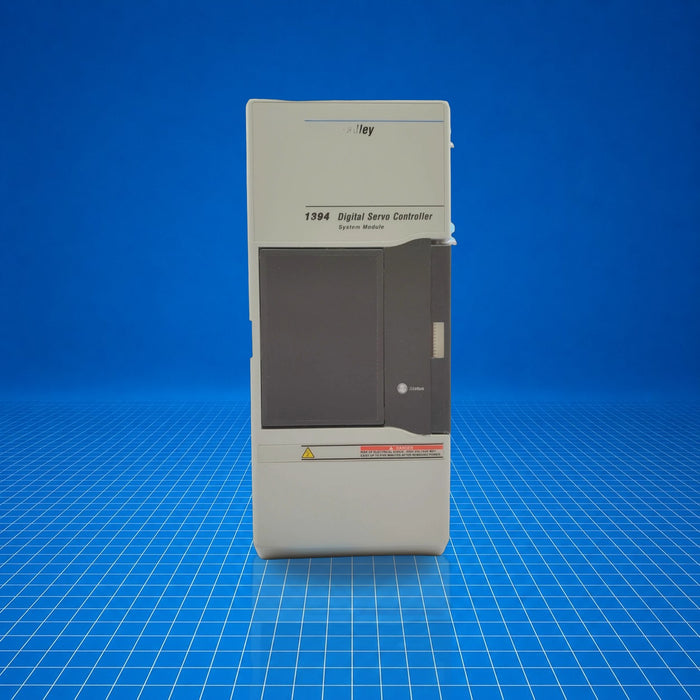

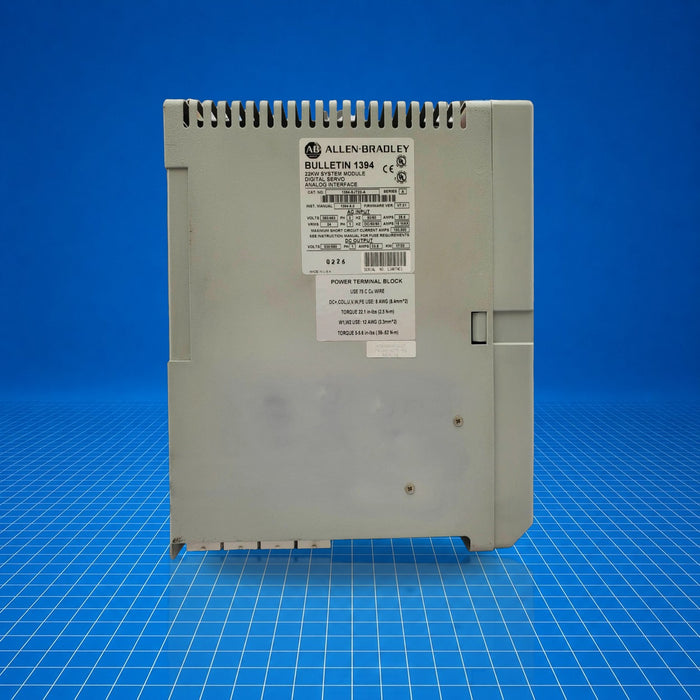

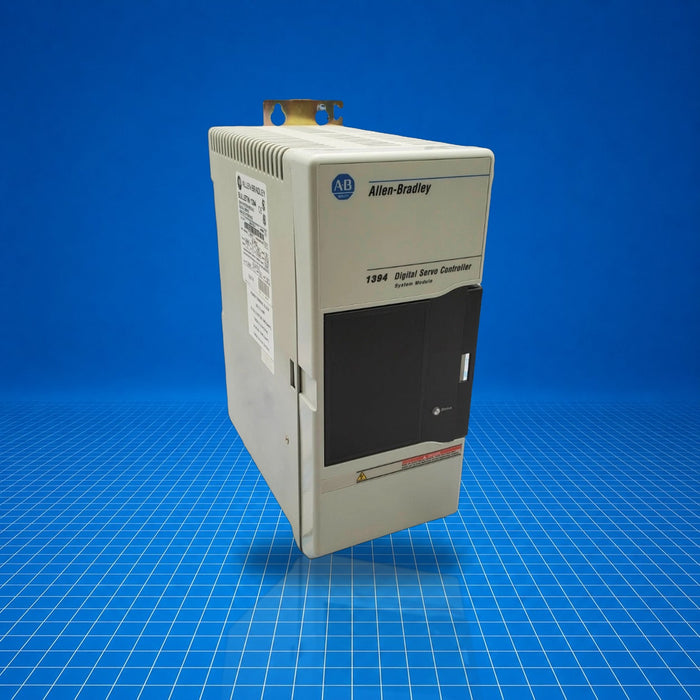

1394-SJT22-A Allen-Bradley

Name: 1394-SJT22-A Allen-Bradley
Brand: Allen Bradley
SKU: 1394-SJT22-A
Price: 6000.0 USD
Availability: InStock

$0.00 - $6,000.00

$6,000.00

$0.00 - $6,000.00

$6,000.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley 1394-SJT22-A is a system module within the 1394 GMC multi-axis motion control platform. It serves as the left-most communication and power interface module in analog servo systems, providing ±10 V DC analog signaling, high-voltage DC bus conversion, and control communication functions. It's used to coordinate motion control axis modules and interface to feedback encoders via resolver or A-Quad-B signal formats. Part number 1394-SJT22-A is used in industrial automation systems requiring distributed multi-axis servo control.

Best Suited For

1394 multi-axis analog servo systems
Integration with resolver or A-Quad-B encoder feedback
High-voltage DC bus distribution for servo axes
Applications requiring RS-232/422 or DH-485 interfacing

Analog interface

±10 V DC

Input voltage

380-460 VAC, 3-phase

DC bus voltage

530/680 V DC

Continuous power output

17 kW @ 380 VAC; 22 kW @ 460 VAC

Technical Specifications

I/O & Electrical

Analog input

±10 V DC

AC input voltage

380-460 VAC, 3-phase

DC bus output voltage

530/680 V DC

Continuous power output

17 kW @ 380 VAC; 22 kW @ 460 VAC

Continuous current output

33.8 A

Peak current output

200 A

Communication & Power

CPU

32-bit processor

Communications

RS-232 / RS-422, DH-485

Physical & Environmental

Weight

30 lb (13.61 kg)

Ambient temperature (max)

≤ 50 °C (mounting requirement)

Mounting

Slide-lock assembly, flat vertical panel, clearance: top 254 mm, sides/bottom 155 mm
