Product Overview

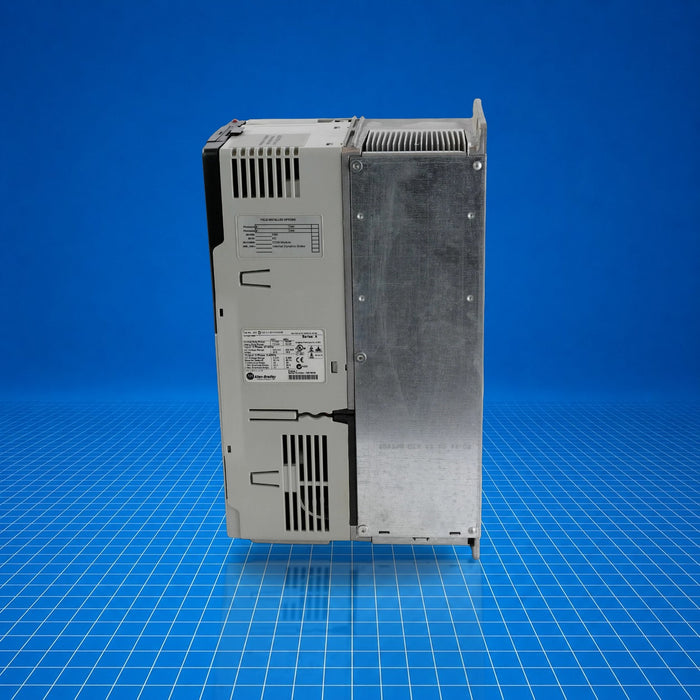

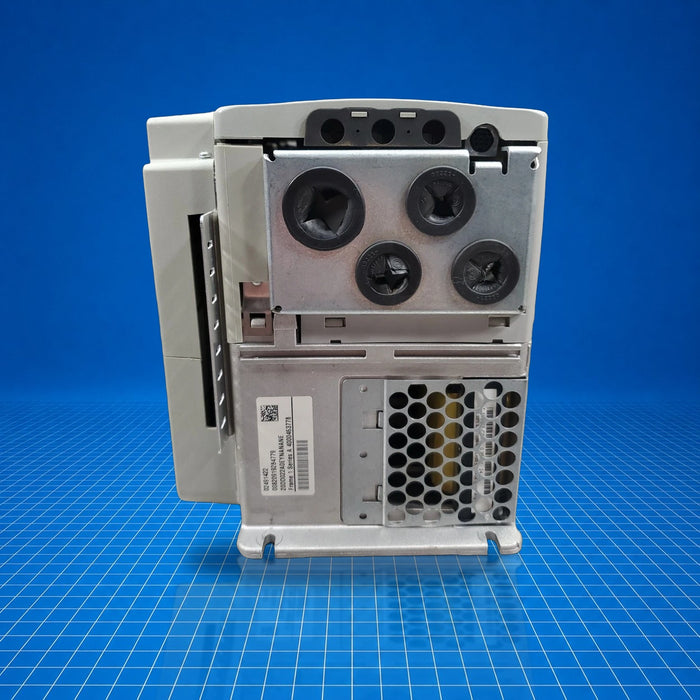

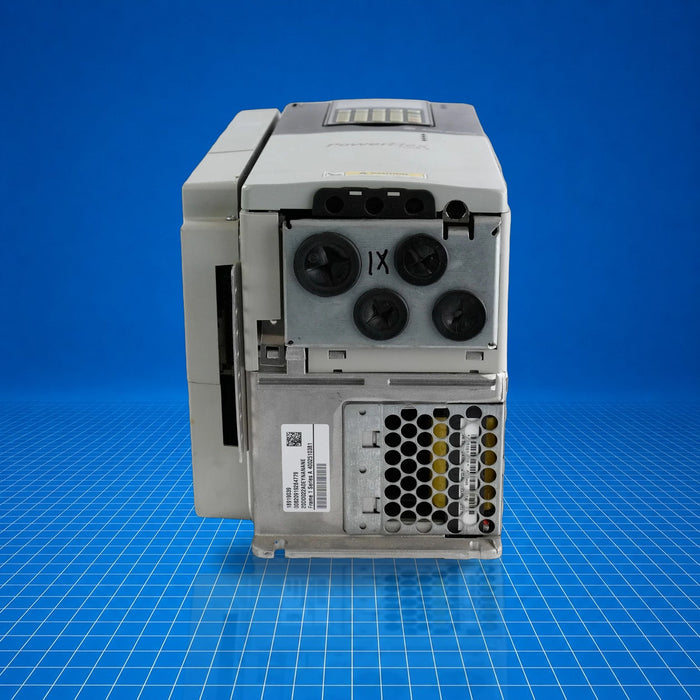

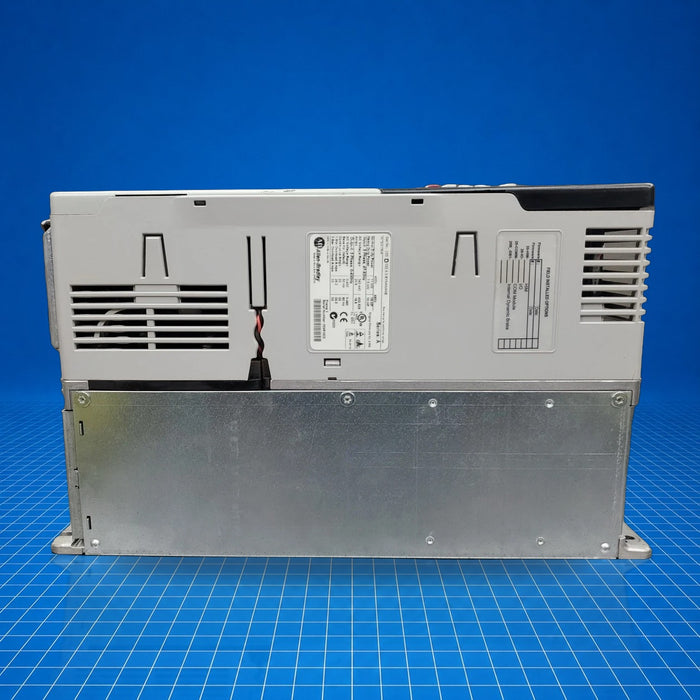

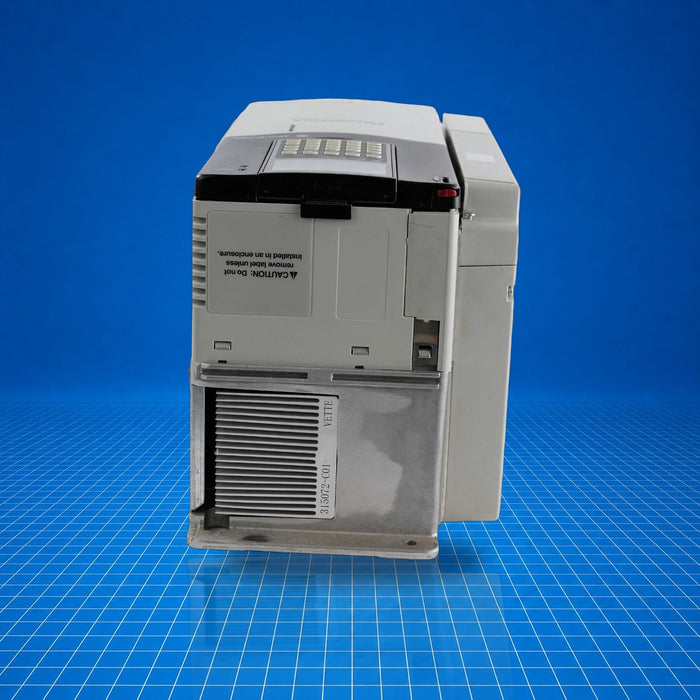

The Allen-Bradley PowerFlex 700S AC Drive (Bulletin 20D) model 20DD022A0EYNANANE is a three-phase, 480 V AC drive delivering up to 22 A continuous (15 HP normal duty, 10 HP heavy duty) with conformal coating and IP20/NEMA Type 1 enclosure. It omits a human interface module and communication modules, includes a brake IGBT, and features Phase II control with expanded cassette. It serves motor speed and torque control in industrial applications such as pumps, fans, conveyors, and general machine automation.

Best Suited For

Three-phase 480 V industrial motor speed control
15 HP normal-duty or 10 HP heavy-duty applications
Installations requiring brake IGBT without feedback
Panel-mounted drive installations with Phase II control

Input voltage

480 V AC, 3-phase, 60 Hz

Continuous output current

22 A

Rated power

15 HP normal-duty, 10 HP heavy-duty

Enclosure rating

IP20 / NEMA/UL Type 1

Brake IGBT

Installed

Technical Specifications

I/O & Electrical

Continuous output current

22 A @ 480 V DC

Input voltage

480 V AC, 3-phase, 60 Hz

Output current, 1 min

24.2 A @ 650 V DC

Output current, 3 sec

33 A @ 650 V DC

Input power rating

16.6 kVA @ 480 V AC, 3-phase

Watt loss

389 W @ 480 V AC

Communication & Power

Brake IGBT

Installed

Internal communication module

None

PWM frequency (drive rating)

4 kHz

Carrier frequency settings

2, 4, 6, 8, 10 kHz (6 kHz for V/Hz only)

Logic control ride-thru

0.25 s (drive not running)

Physical & Environmental

Enclosure type

IP20 / NEMA/UL Type 1

Shock

10 G peak, 11 ms

Vibration

0.152 mm displacement, 1 G peak, 5.5 Hz

Operating ambient

Not specified
