22A-A2P1N103 Allen-Bradley
Original price
$310.50
-
Original price
$1,372.25
Original price
$310.50
$310.50
-
$1,372.25
Current price
$310.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

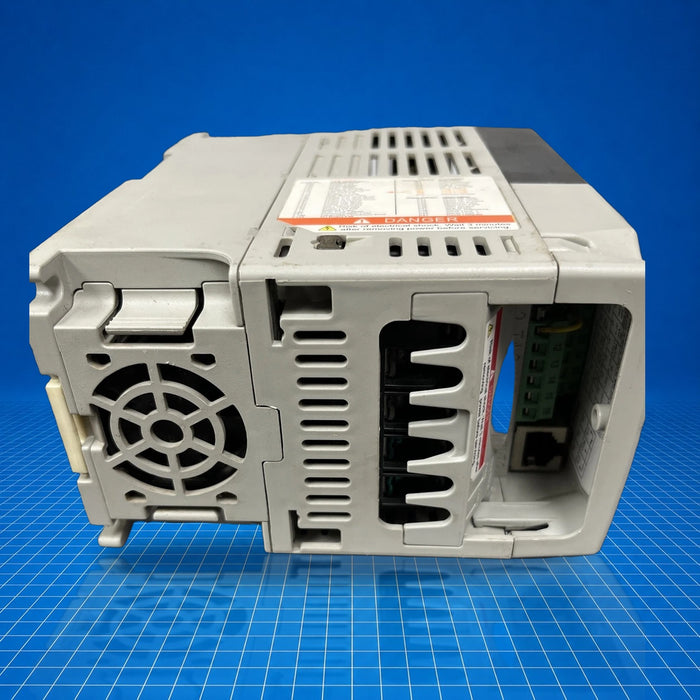

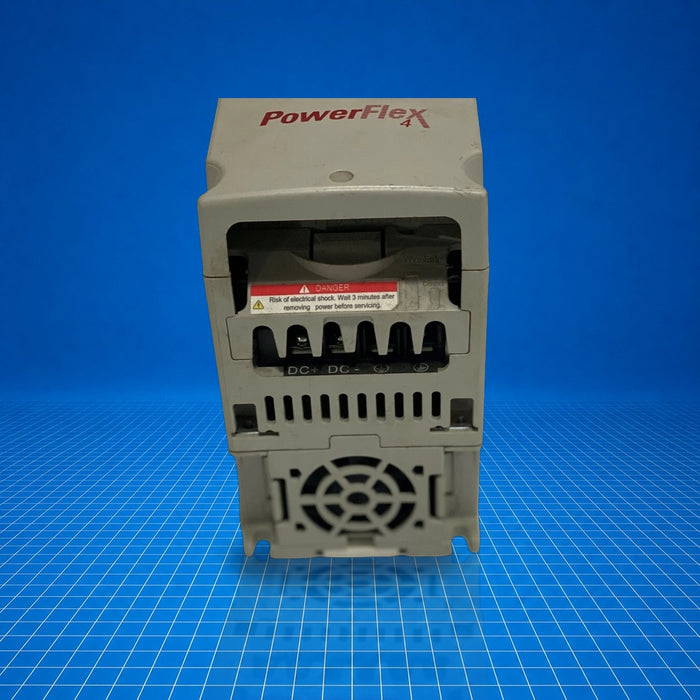

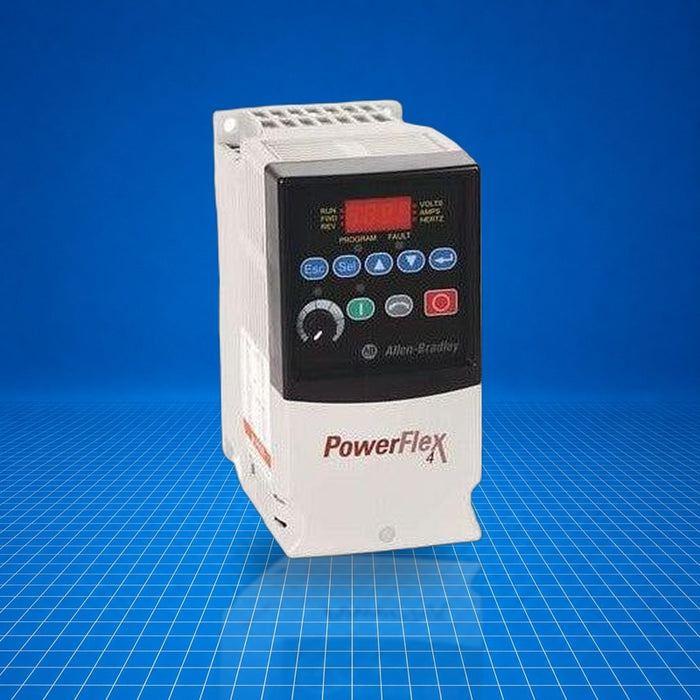

The 22A-A2P1N103 is an Allen-Bradley PowerFlex 4 adjustable frequency AC drive. It accepts single-phase 200-240 V AC input and provides three-phase 0-230 V AC output for motor speed control. As a compact module without a brake, it integrates an LED display, keypad, and RS-485 serial communication for configuration. It is used in applications such as conveyors, pumps, and machine tools as a space-saving variable-frequency drive. This part number supports straightforward programming via built-in parameters and integrates within Logix control systems.
Best Suited For
- Compact conveyor motor control
- Pump/motor speed regulation
- OEM machines with limited panel space
- Systems requiring basic keypad setup
- RS-485 multi-drop network integration
Power rating
0.4 kW (0.5 HP)
Input voltage
200-240 V AC single-phase
Output current
2.1 A
Enclosure
IP20 / UL open
Display/control
LED display with integral keypad
Technical Specifications
I/O & Electrical
Input voltage
200-240 V AC single-phase
Output
0-230 V AC three-phase
Rated power
0.4 kW (0.5 HP)
Full-load current
2.1 A
Communication & Power
Configuration/display
LED display, integral keypad
Communication port
RS-485 serial (multi-drop)
Physical & Environmental
Enclosure rating
IP20 / NEMA-UL open
Weight
2.13 lbs (0.96 kg)
