22A-V1P5N104 Allen-Bradley

Name: 22A-V1P5N104 Allen-Bradley
Brand: Allen Bradley
SKU: 22A-V1P5N104
Price: 687.47 USD
Availability: InStock

$687.47 - $915.72

$687.47

$687.47 - $915.72

$687.47

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

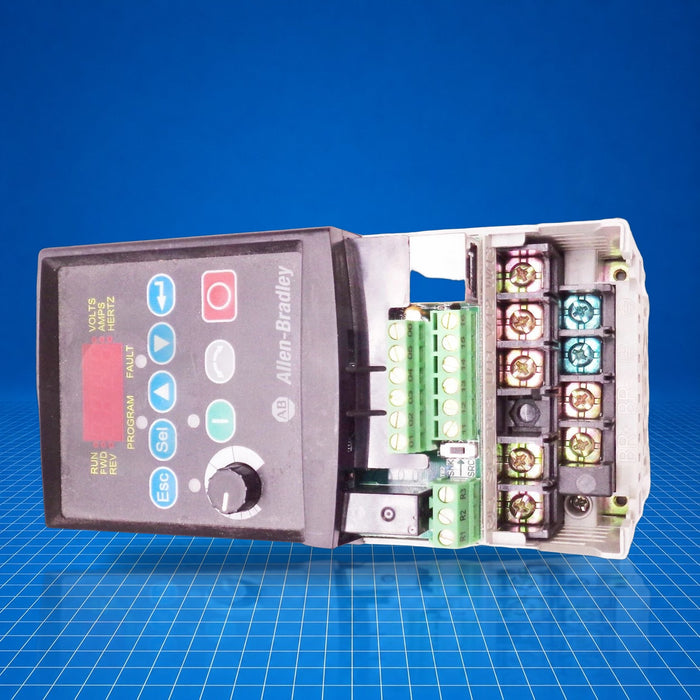

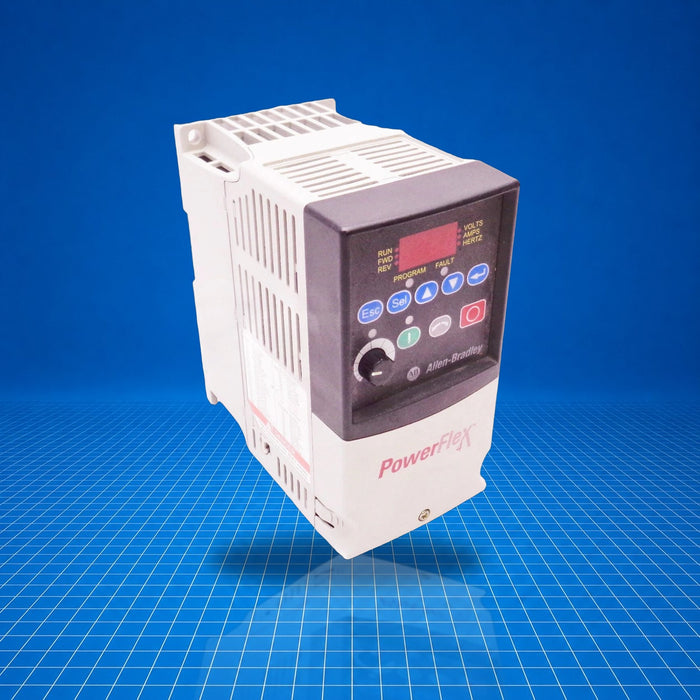

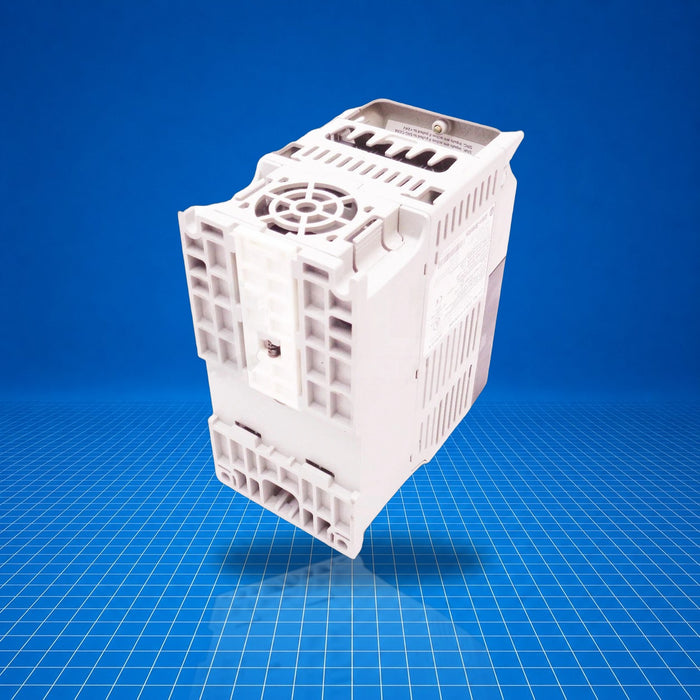

The Allen-Bradley PowerFlex 4 drive, catalog number 22A-V1P5N104, is a single-phase input, three-phase output adjustable frequency AC drive. It delivers 0.2 kW (0.25 HP) at 1.5 A output to control motor speed and torque. It features a built-in LED display with fixed digital keypad and is designed for panel-mount installation in an IP20/NEMA Type Open enclosure. Typical use cases include conveyor speed control, pump/motor applications, and general machine automation contexts. 22A-V1P5N104 is discontinued as of June 30 , 2025 but remains repairable and supported.

Best Suited For

Low-power motor speed control (0.2 kW / 0.25 HP)
Single-phase 100-120 V AC supply environments
Panel-mount applications requiring compact IP20/NEMA Open drives
Retrofit or repair of discontinued PowerFlex 4 installations

Output current

1.5 A

Input voltage range

90-126 V AC

Power rating

0.2 kW (0.25 HP)

Enclosure type

IP20 / NEMA-UL Type Open

Status

Discontinued (June 30 , 2025)

Technical Specifications

I/O & Electrical

Output current

1.5 A

Output power

0.2 kW (0.25 HP)

Input voltage range

90-126 V AC (±10%)

Input current

6.0 A ("kVA" 0.75 kVA)

Communication & Power

Display type

LED display

User interface

Fixed digital keypad

Brake IGBT

Included

Physical & Environmental

Enclosure

IP20 / NEMA-UL Type Open

Mounting

Panel-mount

Dimensions

Width 3.15 in (80 mm), Height 7.28 in (185 mm), Depth 5.35 in (136 mm)

Weight

3.1 lb (1.4 kg)
