22F-V2P5N103 Allen-Bradley

Original price $515.97 - Original price $2,411.39
Original price
$515.97
$515.97 - $2,411.39
Current price $515.97
Surplus - Tested (With Warranty)
Need a Specific Revision?
$515.97
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$2,411.39
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

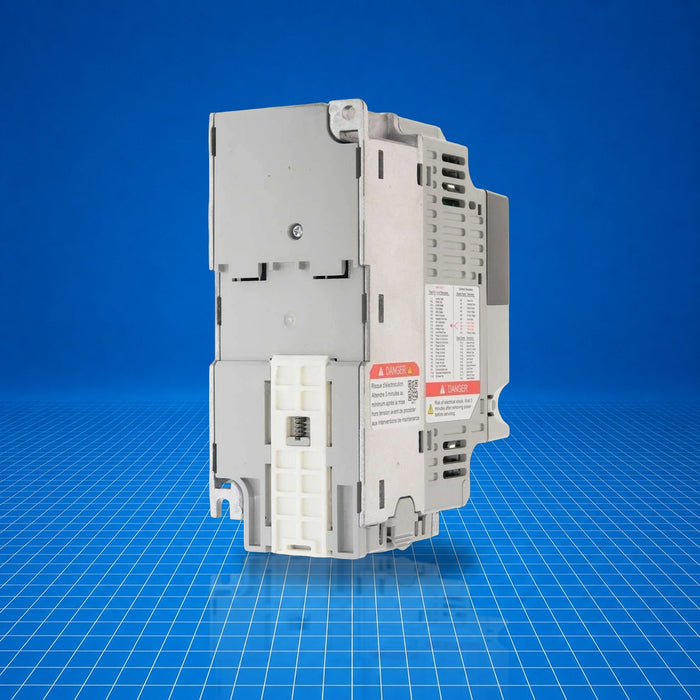

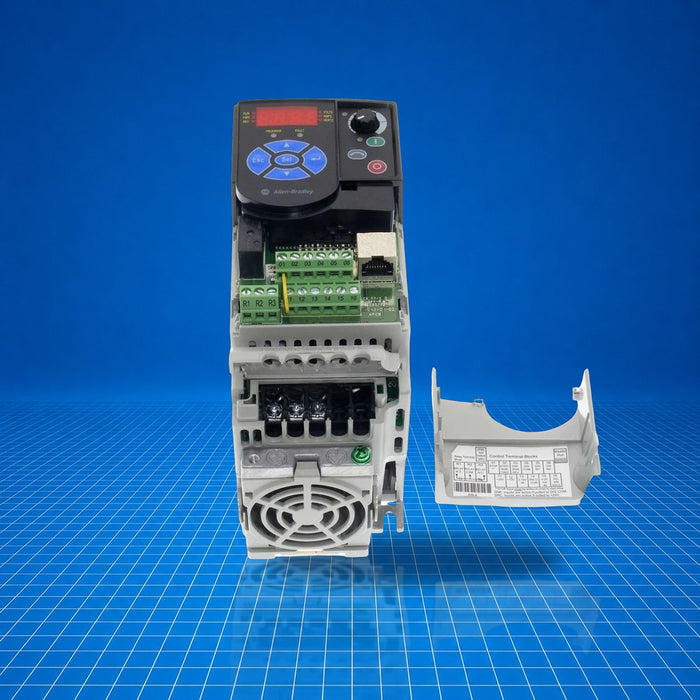

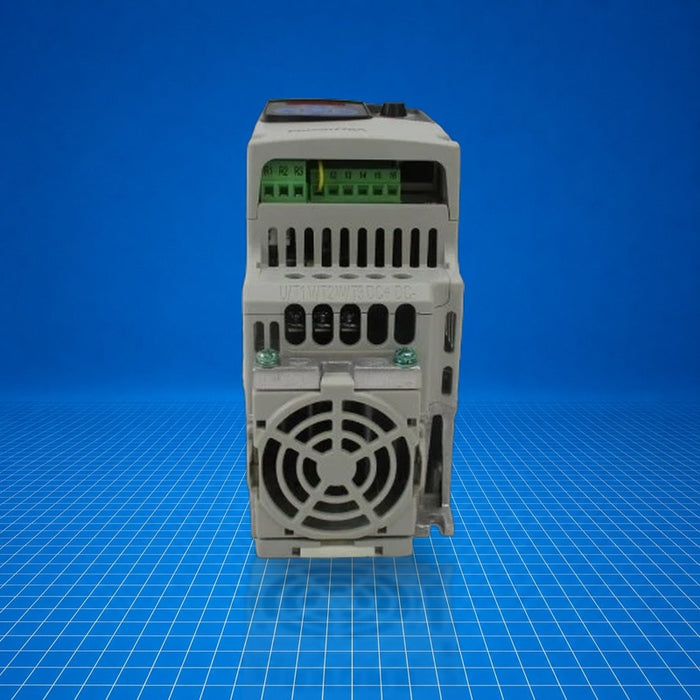

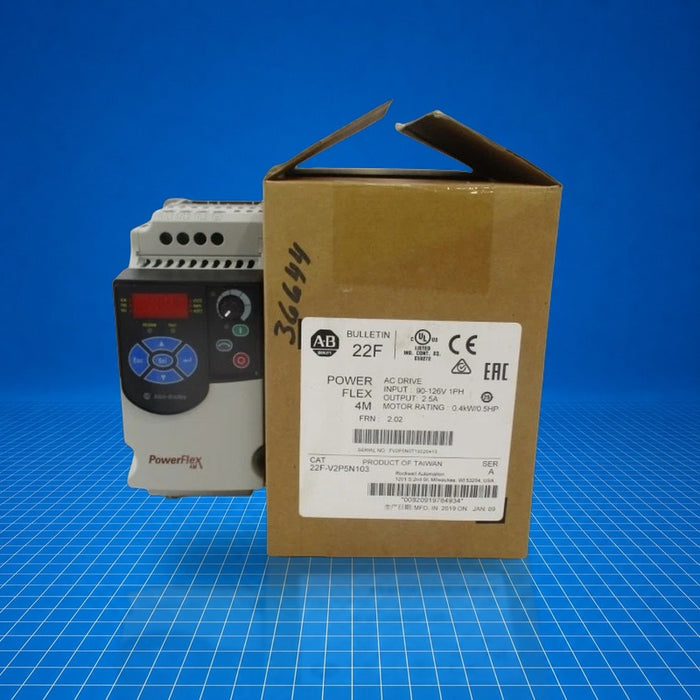

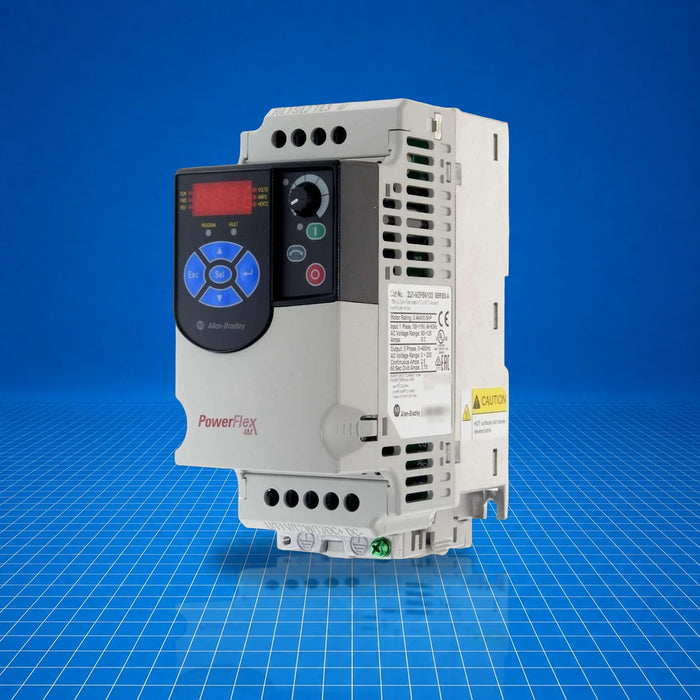

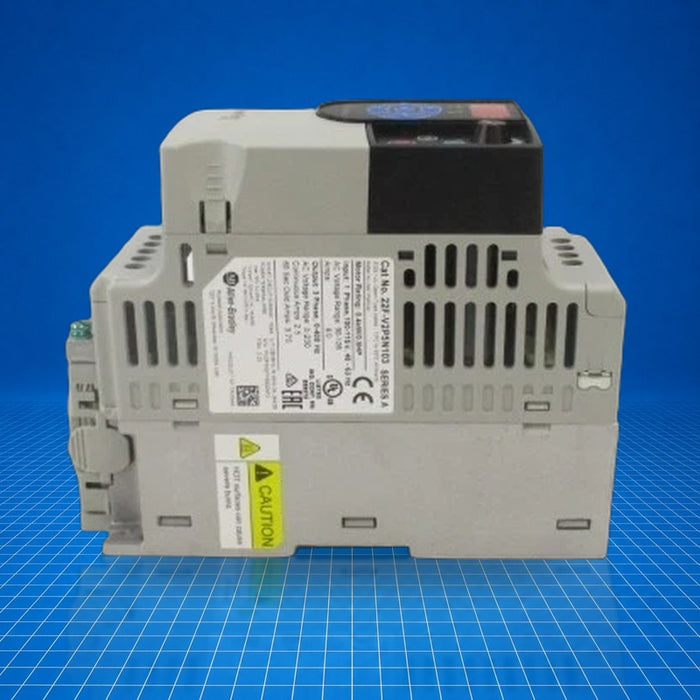

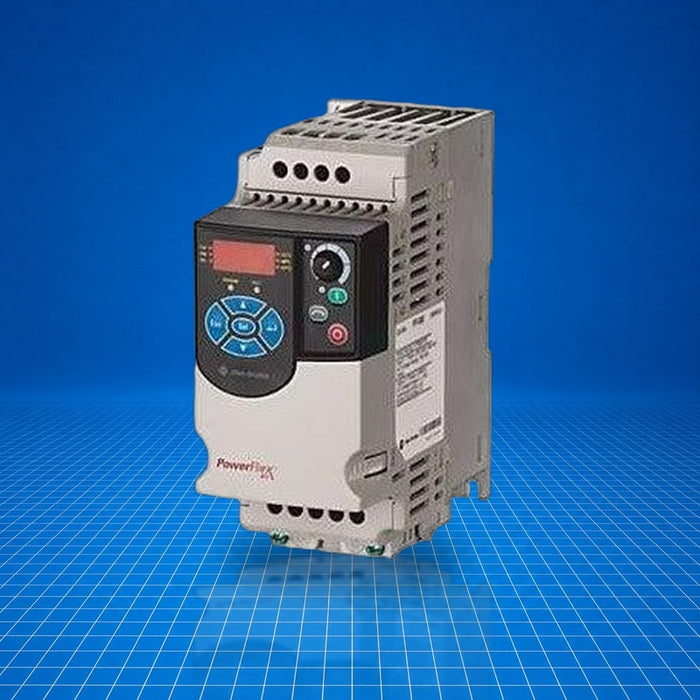

The 22F-V2P5N103 is an Allen-Bradley PowerFlex 4M series adjustable frequency AC drive. It accepts single-phase 100-120 VAC input and delivers up to 0.37 kW (0.5 HP) output via a 3-phase motor, providing controlled variable-speed motor drive capability. Housed in an open-type IP20 Frame Size A enclosure and equipped with an LED display and fixed digital keypad, it integrates into machine and panel installations to manage small motor loads in industrial control systems. 22F-V2P5N103 enables precise speed control in applications such as conveyor systems, pumps, fans, and light machinery.

Best Suited For

  • Single-phase 120 VAC environments
  • Small motor speed control (~0.5 HP)
  • Panel or enclosure installation requiring IP20 rating
  • Applications requiring keypad adjustment and LED status display
  • Feed-through wiring installations
Output power
0.37 kW (0.5 HP)
Output current
2.5 A
Input voltage
100-120 VAC, single-phase
Enclosure rating
IP20 (open)
User interface
LED display, fixed digital keypad

Technical Specifications

I/O & Electrical

Input voltage
100-120 VAC single-phase
Output current
2.5 A
Branch circuit kVA
1.1 kVA
Branch circuit amps
9.0 A (approx) - distributor data

Communication & Power

Control method
Volts/Hertz control
Built-in communication port
RS-485
Optional protocols
BACnet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet (distributor data)

Physical & Environmental

Frame size
A
Enclosure rating
IP20, NEMA/UL open type
Ambient temperature
Up to 50 °C with minimal spacing; up to 40 °C zero-stacking (PowerFlex 4M series general spec)
Mounting
Panel/machine mount, feed-through wiring
Weight
0.75 lbs (0.34 kg) - distributor data
