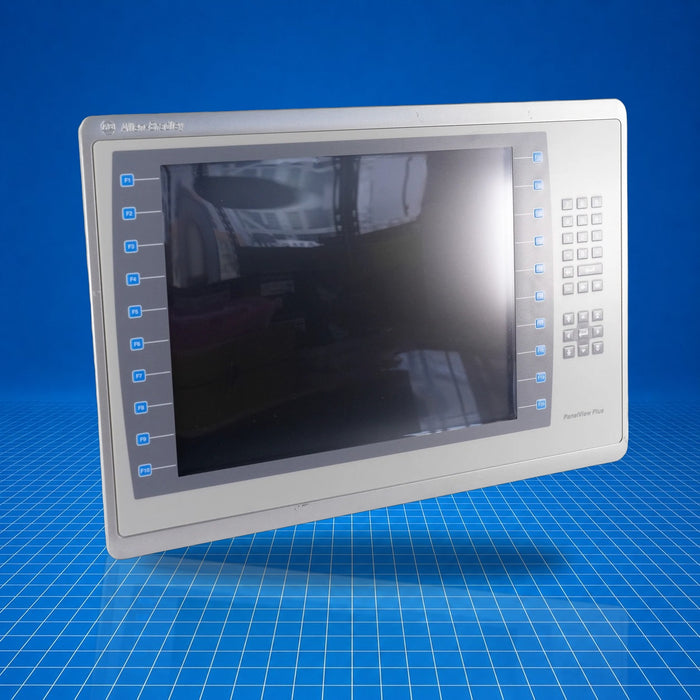

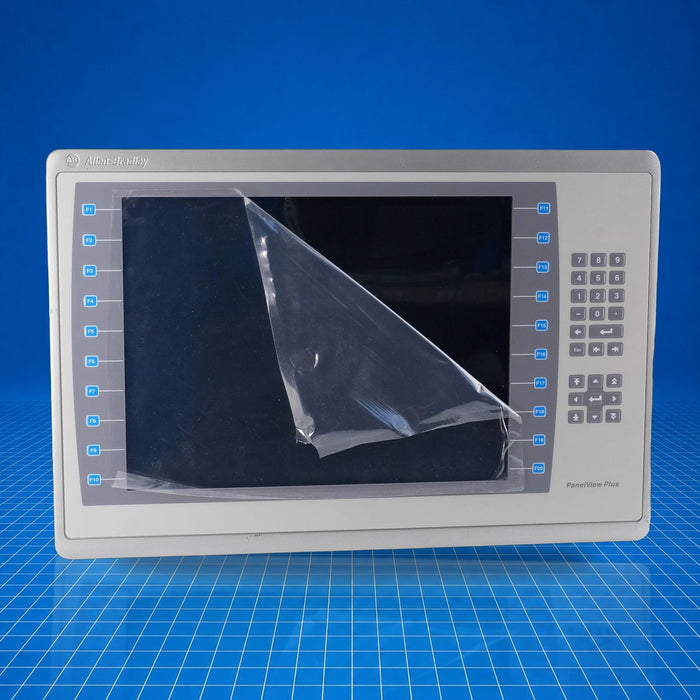

2711P-B15C22D9P Allen-Bradley

Name: 2711P-B15C22D9P Allen-Bradley
Brand: Allen Bradley
SKU: 2711P-B15C22D9P
Price: 2449.98 USD
Availability: InStock

$2,449.98 - $4,948.50

$2,449.98

$2,449.98 - $4,948.50

$2,449.98

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 2711P-B15C22D9P is an Allen-Bradley PanelView Plus 7 Performance terminal with combined keypad and touchscreen input, featuring a 15-inch XGA color TFT display. It mounts flush in control panels and provides operator interface functionality in industrial automation systems running FactoryTalk View. The terminal integrates dual Ethernet ports supporting Device Level Ring (DLR) topologies and is powered by 24 V DC. It is suitable for machine-level HMI applications, batch processing, and general supervisory control tasks.

Best Suited For

Machine-level operator interface in manufacturing cells
Batch or process control panels running FactoryTalk View
Upgrades from PanelView Plus 6 1500 models
DLR-enabled Ethernet networks

Display resolution

1024 × 768 (XGA), 18-bit color graphics

Operator input

Touchscreen + Keypad

Memory (RAM / user non-volatile)

512 MB RAM / 512 MB (≈ 80 MB free)

Power consumption

50 W max (2.1 A at 24 V DC)

Technical Specifications

I/O & Electrical

Input voltage

18-30 V DC (nominal 24 V DC)

Power consumption

50 W max (2.1 A at 24 V DC)

Communication & Power

Ethernet

Two 10/100 Base-T ports with DLR, linear, or star

USB ports

Three USB host

Physical & Environmental

Display size

15 in diagonal (304 × 228 mm viewing area)

Backlight life

≥ 50,000 h at 40 °C (half-brightness)

Touchscreen rating

Analog resistive, 1 million presses, 100 g

Battery (RTC backup)

CR2032, ≥ 4 years at 25 °C, ±2 min/month accuracy

Certifications

UL ListedRCMCEc-UL-usKCCRoHS

UL Listed, Australian RCM (as of May 17, 2026); CE, c-UL-us, KCC, RoHS per distributor listings
