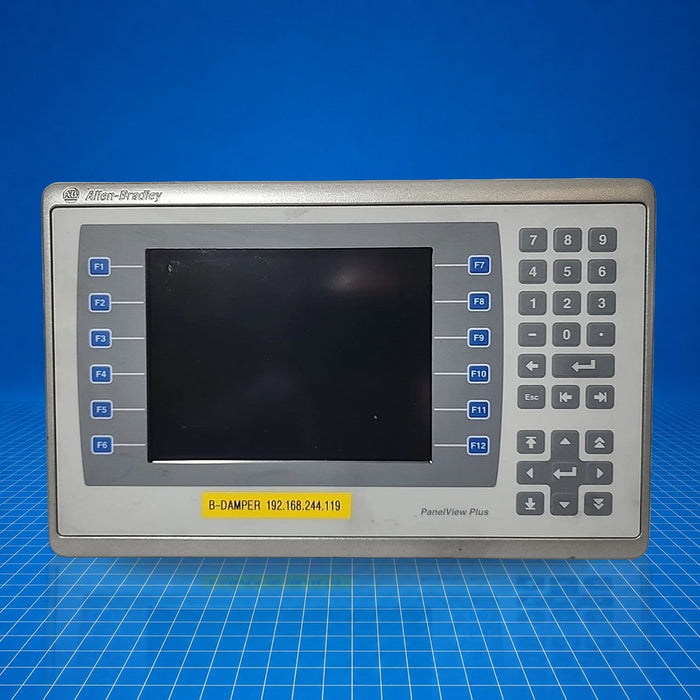

2711P-B7C22A9P Allen-Bradley
Original price
$2,450.00
-
Original price
$6,839.99
Original price
$2,450.00
$2,450.00
-
$6,839.99
Current price
$2,450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2711P-B7C22A9P is an Allen-Bradley PanelView Plus 7 Performance graphic operator terminal. It serves as a Human-Machine Interface (HMI) within machine and process control systems. The unit features a 6.5-inch VGA color TFT display with both touchscreen and keypad input. It provides Ethernet connectivity and memory for applications and data. Common applications include operator control panels in automation systems, status monitoring stations, and use with ControlLogix or CompactLogix systems.
Best Suited For
- Integration with ControlLogix or CompactLogix systems
- Machine-side operator control panels
- Process monitoring and control rooms
- Retrofit projects replacing earlier PanelView Plus models
Display size
6.5 in.
Resolution
640 × 480 VGA, 18-bit color
Memory (RAM / NVM)
1 GB RAM / 512 MB non-volatile (≈80 MB free)
Operator input
Touchscreen with keypad
Power (DC)
18-30 V DC, 50 W max (2.1 A at 24 V DC)
Technical Specifications
I/O & Electrical
Input voltage range
18-30 V DC
Power consumption
50 W max (2.1 A at 24 V DC)
Touchscreen life
1 million presses; 100 g actuation
Communication & Power
Ethernet ports
Two 10/100 Base-T, supports DLR, linear or star
USB ports
Three USB host ports (Type A; high-speed 2.0)
Backlight
White LED, life 50 000 h at 40 °C to half-brightness, non-replaceable
Physical & Environmental
Operating temperature
0…55 °C (32…131 °F)
Non-operating temperature
-25…70 °C (-13…158 °F)
Dimensions (H×W×D)
179 × 285 × 69.6 mm (7.05 × 11.22 × 2.74 in)
Viewed area
132 × 99 mm (5.2 × 3.9 in)
Weight
≈1.47 kg (3.25 lb)
