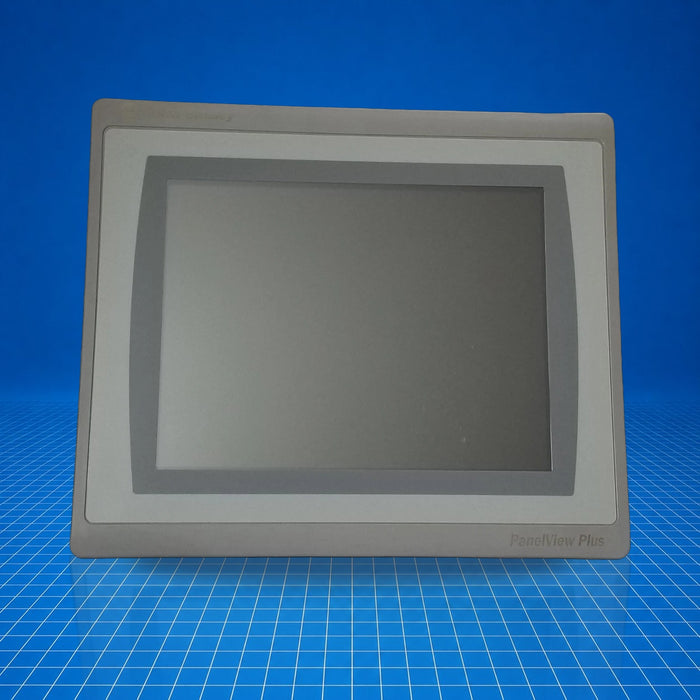

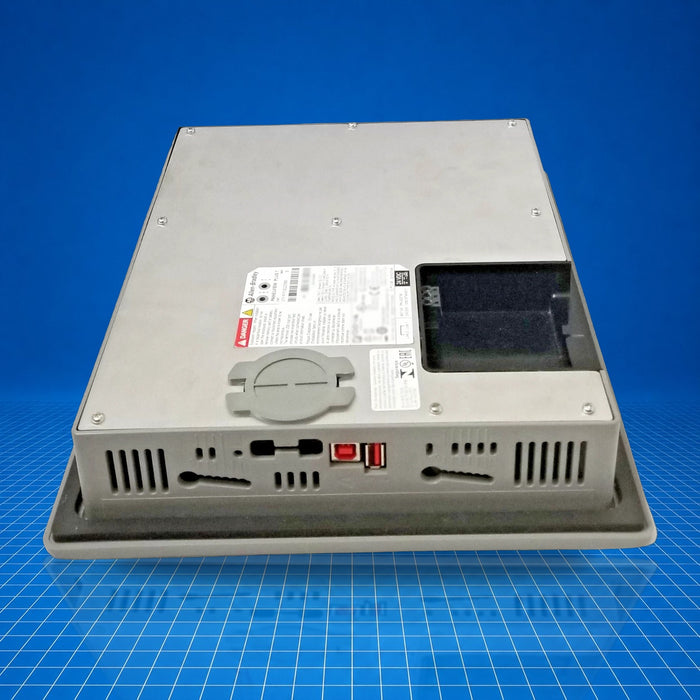

2711P-T10C22D8S Allen-Bradley
Original price
$0.00
-
Original price
$2,450.00
Original price
$2,450.00
$0.00
-
$2,450.00
Current price
$2,450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Display Size (diagonal) | 10.4 in (SVGA, 800 × 600, 18‑bit color graphics) |
| Display Type | Color TFT LCD |
| Touch Screen | Analog resistive; 1 million presses; operating force ~100 g |
| Embedded Ethernet | Device Level Ring (DLR) Ethernet, embedded switch, single Ethernet port |
| Input Voltage | 24 V DC nominal (18–30 V DC) |
| Memory | 512 MB RAM; 512 MB non‑volatile (≈80 MB available for user) |
| Backlight | LED; ~50,000 h at 40 °C to half‑brightness; non‑replaceable |
| Viewing Area | 211 × 158 mm |
| Certifications | ODVA, KC, CE, CCC, UL Listed (incl. Hazardous), IECEx, ATEX, INMETRO, RCM |
The Allen‑Bradley 2711P‑T10C22D8S is a PanelView Plus 7 Standard 10.4" color touch‑screen terminal designed for seamless integration with FactoryTalk View and EtherNet/IP‑based ControlLogix and CompactLogix systems. Equipped with a robust Device Level Ring Ethernet port, 24 V DC power input, and solid‑state LED backlight, this terminal supports durable operation in industrial HMI environments. Ideal for operator interface applications such as machine control panels and process visualization, the 2711P‑T10C22D8S delivers reliable performance with ample memory and embedded networking capability.
