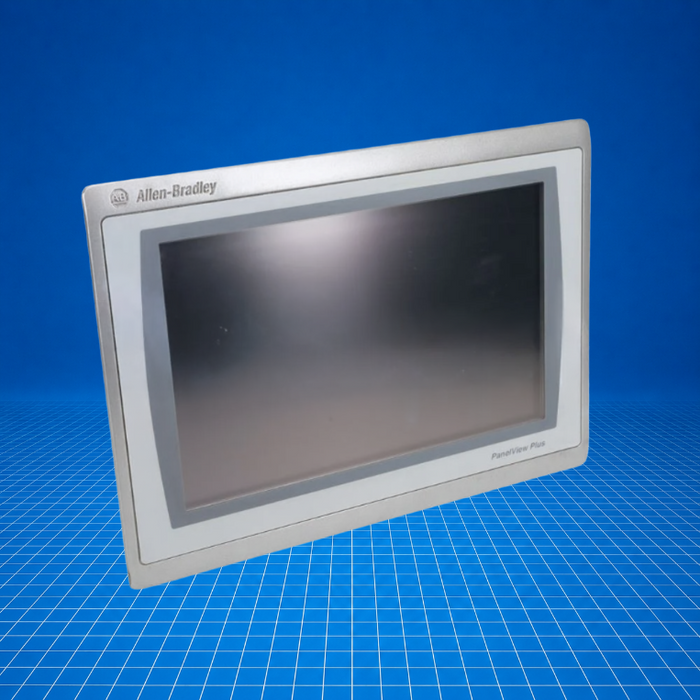

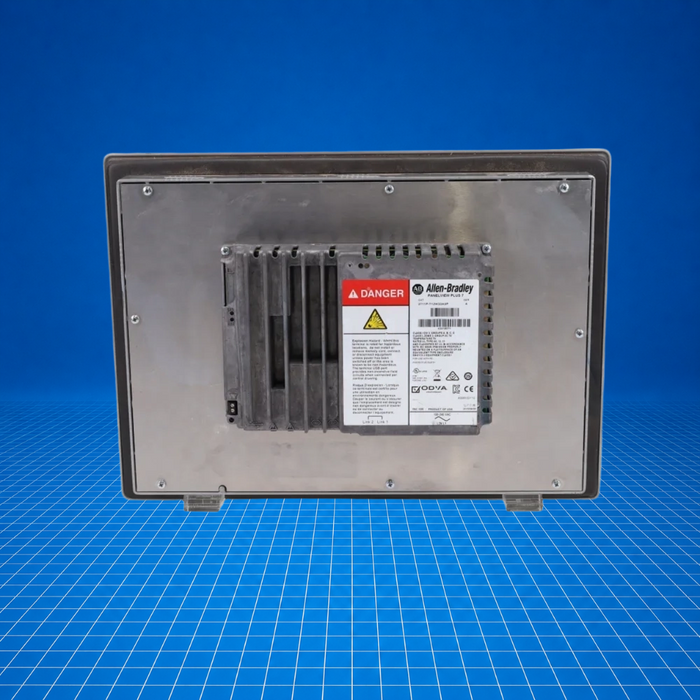

2711P-T12W22A9P Allen-Bradley
Original price
$2,205.00
-
Original price
$6,880.97
Original price
$2,205.00
$2,205.00
-
$6,880.97
Current price
$2,205.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Technical Specifications
| Specification | Details |
|---|---|
| Display Size (Diagonally) | 12.1 in (wide screen) |
| Resolution | 1280 × 800 WXGA, 18‑bit color |
| Viewing Area (W × H) | 261 × 163 mm (10.3 × 6.4 in) |
| Aspect Ratio | 16:10 |
| Touch Interface | Analog resistive touchscreen; rated for up to 1 million actuations; operating force: 100 g |
| Backlight | White LED, solid-state; life ≥ 50,000 h at 40 °C (to half-brightness); not replaceable |
| Ethernet Communications | Two 10/100 Base‑T Ethernet ports with Device Level Ring (DLR), linear or star topologies |
| USB | Three USB host ports |
| Memory | 512 MB RAM; 512 MB nonvolatile memory (approx. 80 MB available for user) |
| Power Input | 100–240 VAC |
| Power Consumption | 105 VA |
| Battery‑backed RTC | Accuracy ±2 minutes/month; battery life ≥ 4 years |
| Weight | 6.00 lbs (≈ 2.72 kg) |
The Allen‑Bradley 2711P‑T12W22A9P PanelView Plus 7 Performance™ Terminal is a high‑resolution 12.1‑inch widescreen operator interface designed for industrial automation systems. Featuring a responsive resistive touchscreen, dual Ethernet ports supporting Device‑Level Ring for robust network topology, and ample memory for HMI applications, it seamlessly integrates with CompactLogix™ and ControlLogix® controllers via FactoryTalk® View Machine Edition. Ideal for machine visualization and control on the plant floor, the 2711P‑T12W22A9P delivers durable performance in demanding industrial environments.
