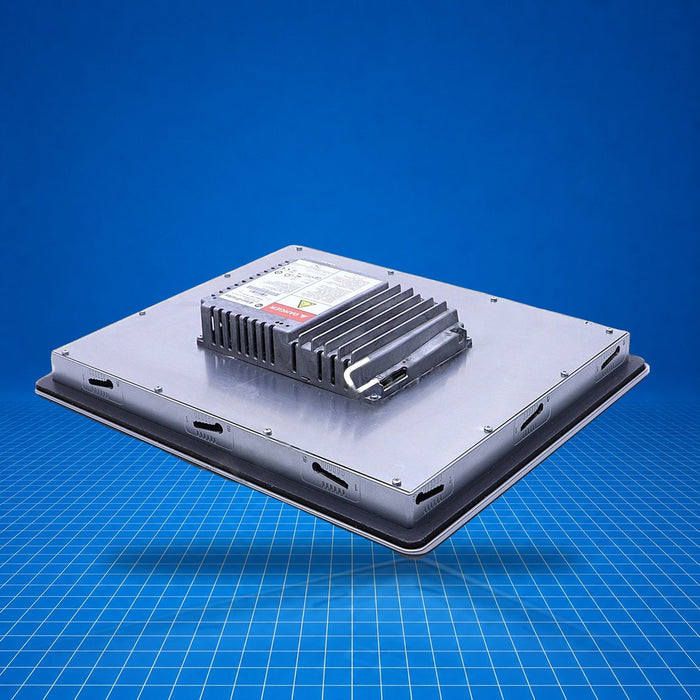

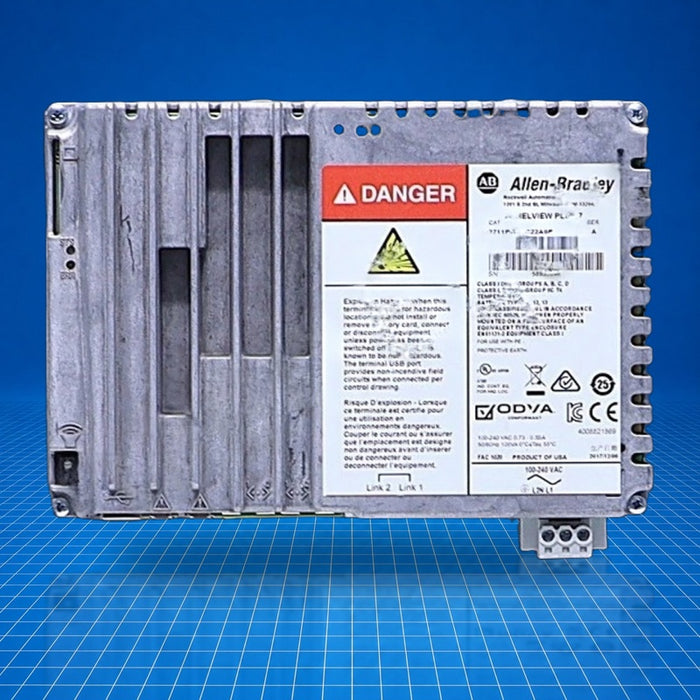

2711P-T15C22A9P Allen-Bradley
Original price
$5,189.99
-
Original price
$17,748.00
Original price
$5,189.99
$5,189.99
-
$17,748.00
Current price
$5,189.99
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Technical Specifications
| Specification | Details |
|---|---|
| Display Size | 15 in. (diagonal) |
| Viewing Area | 304 × 228 mm (12.0 × 9.0 in.) |
| Resolution | 1024 × 768 (XGA), 18‑bit color graphics |
| Display Type | Color active‑matrix TFT |
| Aspect Ratio | 4:3 |
| Brightness, typical | 300 cd/m² (nits) |
| Backlight | White LED, solid‑state; 50,000 h min @ 40 °C to half‑brightness (non‑replaceable) |
| Touchscreen | Analog resistive; actuation rating: 1 million presses; operating force: 100 g |
| Input Voltage | 100‑240 VAC |
| Power Consumption | 105 VA |
| System Memory | 512 MB RAM; approx. 512 MB nonvolatile (≈80 MB user memory) |
| Communication Ports | Two 10/100Base‑T Ethernet (supports Device Level Ring, linear or star); Three USB host |
| Battery (RTC backup) | CR2032 lithium coin cell; accuracy ±2 min/mo; life 4 years @ 25 °C |
| Operating System (Series A) | Windows CE 6.0 with Extended Features (incl. FTP, VNC, ActiveX, PDF reader) |
| Weight | 6.00 lb (2.72 kg) |
| Panel Cutout (H × W) | 290 × 353 mm (11.42 × 13.90 in.) |
| Overall Dimensions (H × W × D) | 318 × 381 × 69.6 mm (12.52 × 15.0 × 2.74 in.) |
The Allen‑Bradley 2711P‑T15C22A9P is a PanelView Plus 7 Performance operator terminal featuring a 15‑inch XGA TFT color touchscreen designed for industrial HMI applications. Supporting dual Ethernet ports with Device Level Ring redundancy as well as multiple USB host ports, it offers robust connectivity for FactoryTalk and Integrated Architecture systems. With its high‑brightness display, built‑in resistive touchscreen, and Windows CE environment, the 2711P‑T15C22A9P is ideal for factory floor control, process visualization, and remote monitoring integration.
