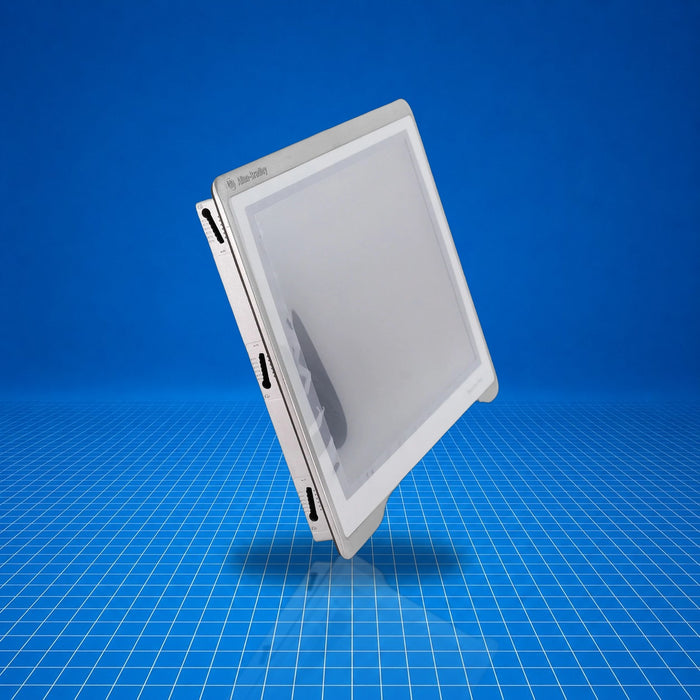

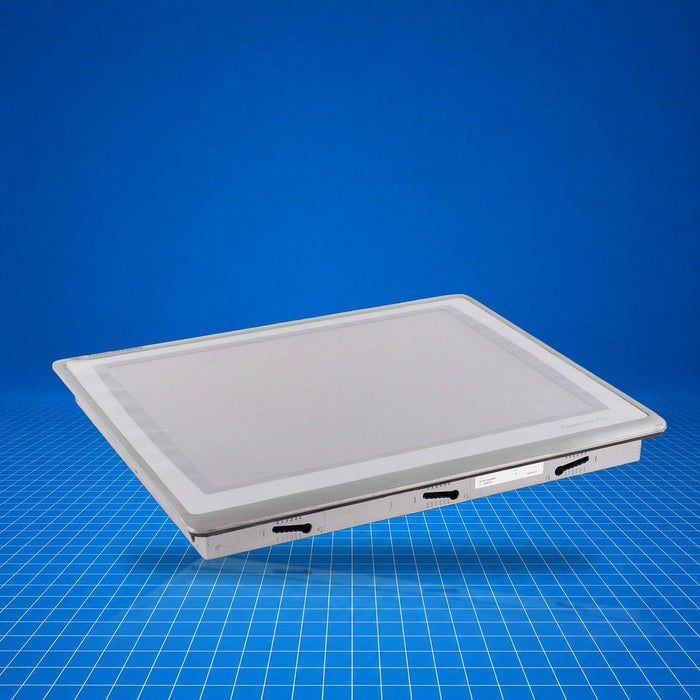

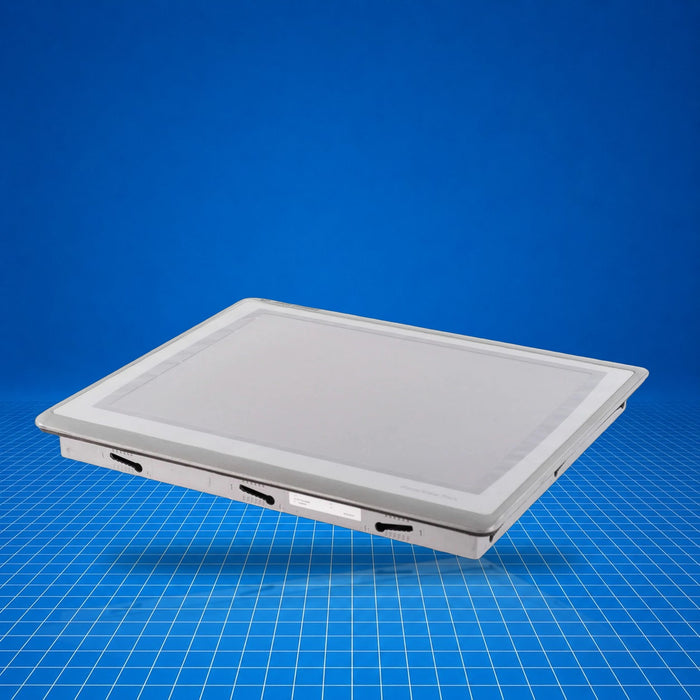

2711P-T15C22D9P Allen-Bradley
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Operator input | Touch (analog resistive: 1 million presses, 100 g actuation force) |
| Display type | TFT Color |
| Display size (diagonal) | 15 in |
| Viewing area | 304 × 228 mm (12.0 × 9.0 in) |
| Display resolution | 1024 × 768 XGA, 18‑bit color graphics |
| Aspect ratio | 4:3 |
| Brightness (typical) | 300 cd/m² (nits) |
| Backlight | White LED, solid-state; life ≥ 50 000 h at 40 °C to half‑brightness (not replaceable) |
| Real‑time clock battery | CR2032 lithium coin cell; accuracy ±2 min/month; life ≥ 4 years at 25 °C |
| Input voltage | 24 V DC nominal (range 18–30 V DC) |
| Power consumption | 50 W max (≈ 2.1 A at 24 V DC) |
| Weight | ≈ 3.18 kg (7 lb) |
| Memory | 512 MB RAM; 512 MB nonvolatile/user storage |
| Communications | Dual Ethernet (Device Level Ring) |
| Conformal-coated | Yes (performance model variants) |
The Allen‑Bradley 2711P‑T15C22D9P PanelView Plus 7 Performance terminal is a rugged, 15‑inch TFT color touch interface designed for seamless integration with Allen‑Bradley and Rockwell Automation systems. Featuring a resolute 1024 × 768 display, analog resistive touch, dual‑Ethernet DLR, and solid‑state LED backlighting, it excels in monitoring and control environments within industrial automation. With 24 V DC power and onboard memory for HMI applications, this model is ideal for machinery, process, and factory floor operator panels. The 2711P‑T15C22D9P delivers reliable performance for demanding control applications.
