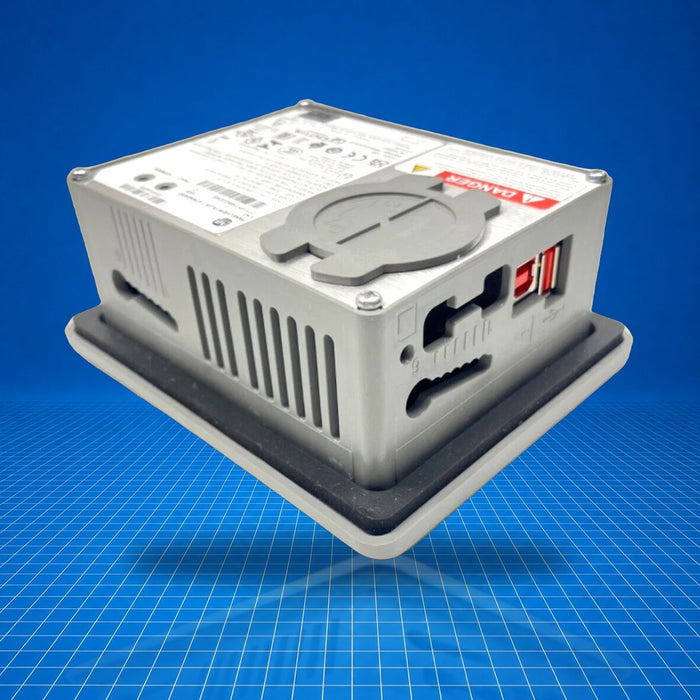

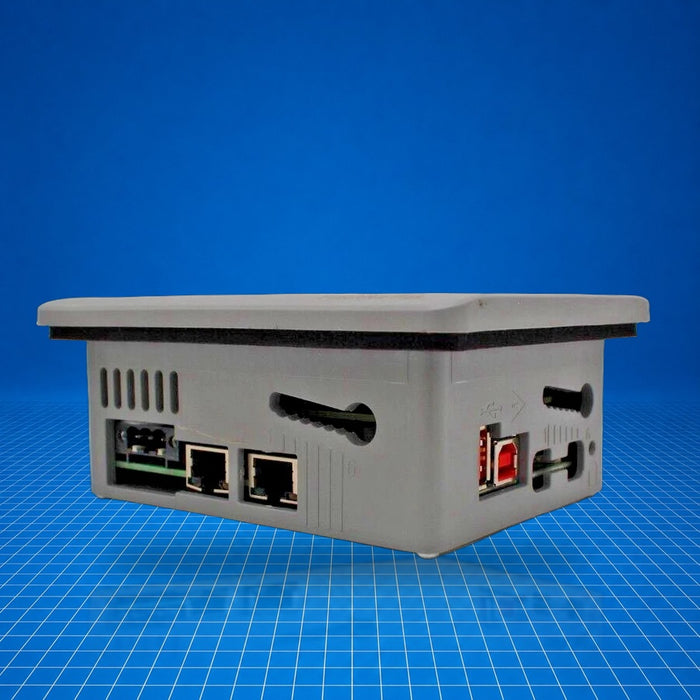

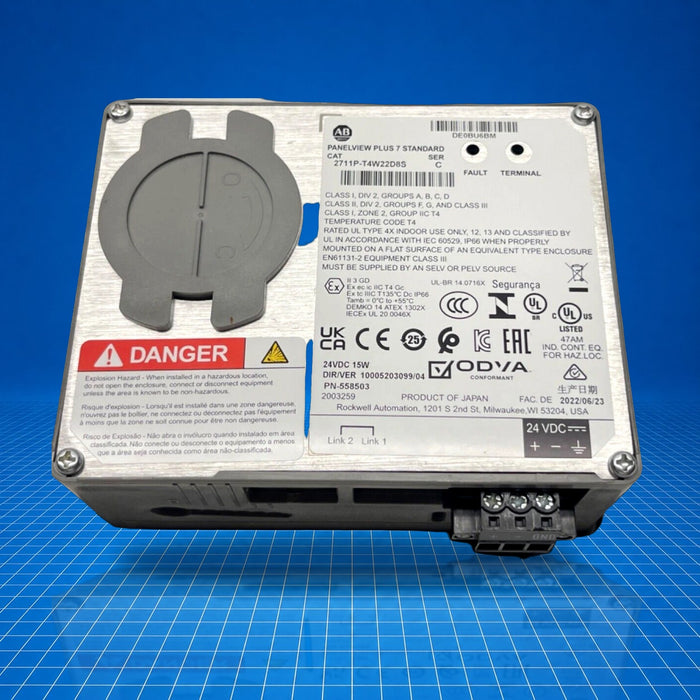

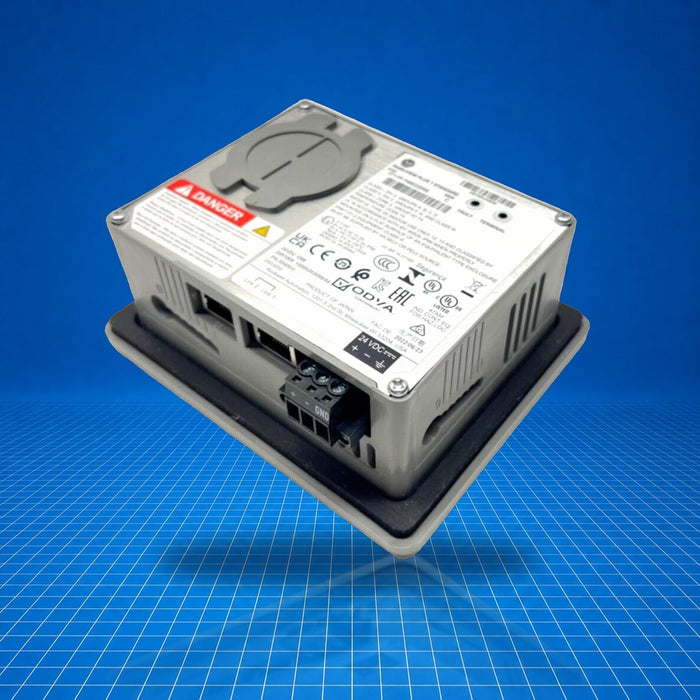

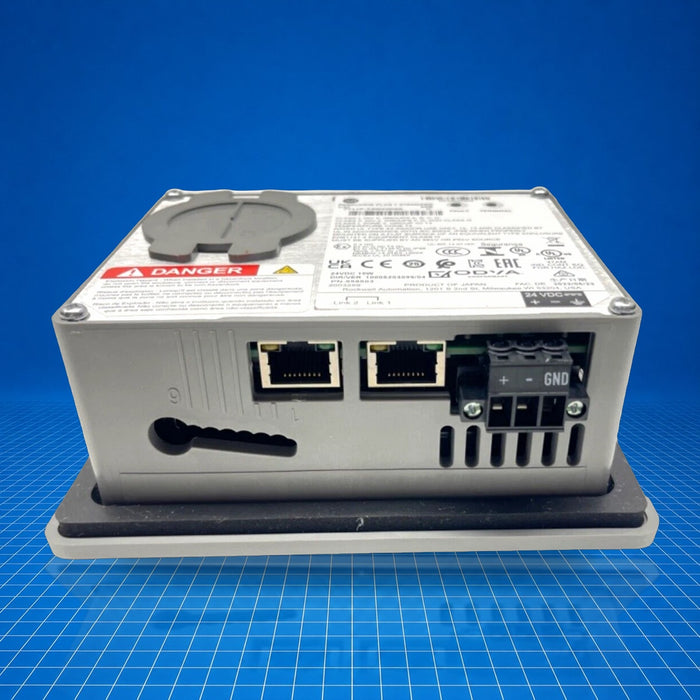

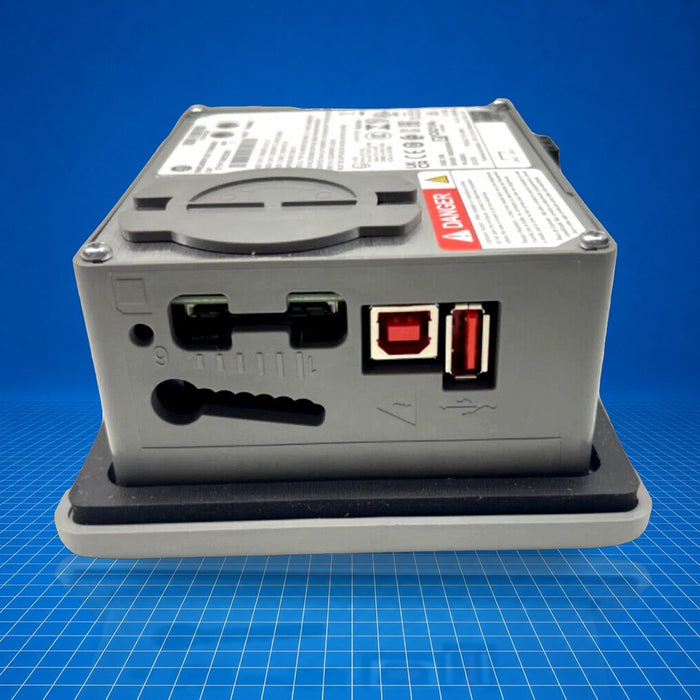

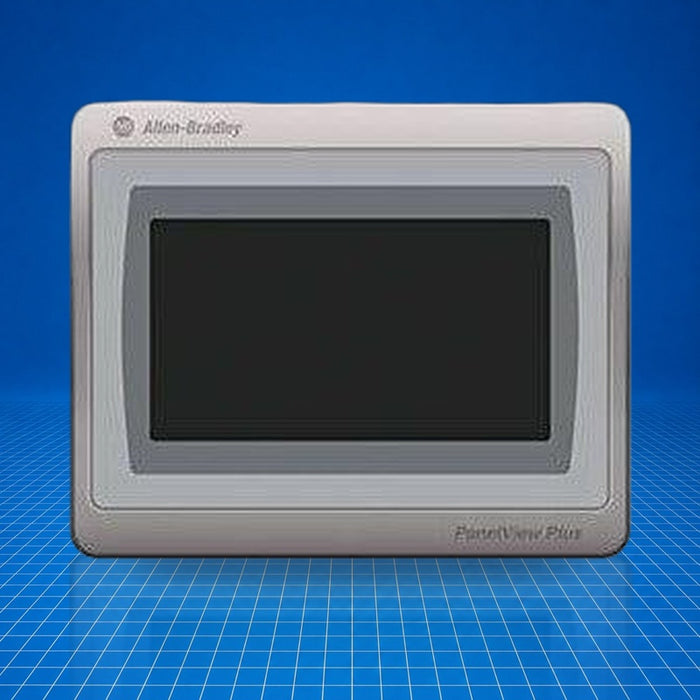

2711P-T4W22D8S Allen-Bradley
Original price
$1,372.25
-
Original price
$1,625.00
Original price
$1,625.00
$1,372.25
-
$1,625.00
Current price
$1,625.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2711P-T4W22D8S Allen-Bradley HMI is a PanelView Plus 7 Standard operator interface terminal intended for integration into industrial control systems. It provides touchscreen-based human-machine interaction, typically driving visualization and control functions for CompactLogix and ControlLogix platforms over Ethernet/IP. Supporting a 4.3-inch widescreen display, it is suitable for machine-level monitoring, basic alarm presentation and control applications where limited screen real estate and standard Ethernet connectivity suffice. The part number appears as 2711P-T4W22D8S.
Best Suited For
- CompactLogix or ControlLogix system integration
- Basic machine-level operator interface
- Applications requiring DLR (Device Level Ring) Ethernet topology
- Panel-level mounting in NEMA/UL Type 12/13/4X/IP54 environments
Display size
4.3 in.
Resolution
480 × 272 WQVGA
Memory (RAM / non-volatile)
512 MB RAM / 512 MB non-volatile (~80 MB user)
Input voltage range
18-30 V DC
Ethernet ports
2 (10/100 Mbps, DLR)
Technical Specifications
I/O & Electrical
Input voltage range
18-30 V DC
Power consumption
35 W max (1.46 A at 24 V DC)
Communication & Power
Ethernet ports
Two 10/100 Mbps (supports DLR)
Touchscreen type
Analog resistive; 1 million presses; 100 g force
Physical & Environmental
Display size / type
4.3 in. Color TFT widescreen
Display resolution
480 × 272 WQVGA, 18-bit color
Brightness
300 nits
Backlight life
50 000 h at 40 °C
Operating temperature
0…55 °C
Non-operating temperature
-25…70 °C
Relative humidity
5…95% without condensation
Heat dissipation
15 W → 51 BTU (4.3-in model)
Shock (operating)
15 g at 11 ms
Shock (non-operating)
30 g at 11 ms
Vibration
0.012 pk-pk, 10-57 Hz; 2 g peak, 57-500 Hz
Enclosure rating
NEMA/UL Type 12, 13, 4X indoor; UL-rated IP54 or IP66
Panel cutout (H×W)
92 × 117 mm (3.62 × 4.61 in)
Overall dimensions (H×W×D)
110 × 135 × 56.5 mm (4.33 × 5.31 × 2.22 in)
Mounted depth
50.14 mm (1.97 in)
Weight
0.97 lb (0.44 kg)
Certifications
UL ListedCEcULusATEXIECExRCMKorean KCBrazil INMETROODVA
