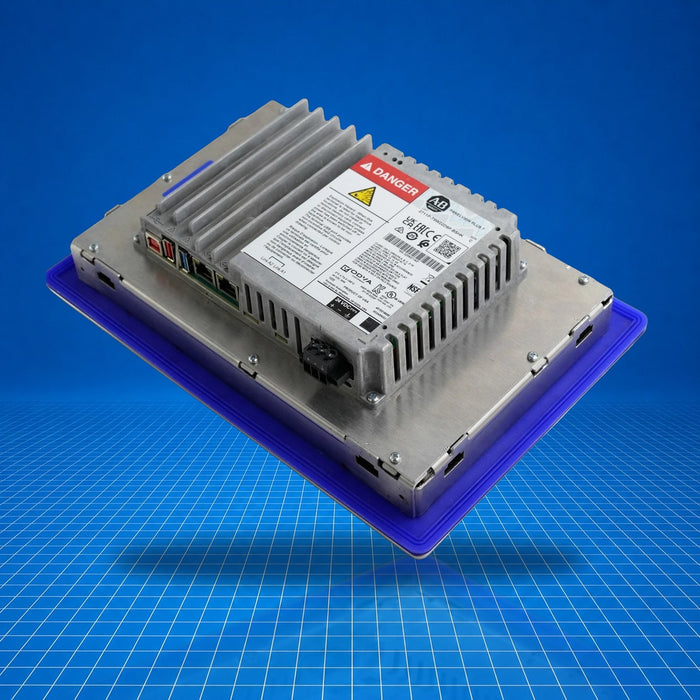

2711P-T9W22D9P Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

2711P-T9W22D9P Allen-Bradley

$2,817.45 - $3,231.00
$2,817.45
$2,817.45 - $3,231.00
$2,817.45
Surplus - Tested (With Warranty)
Need a Specific Revision?
$2,817.45
7 in stock
New / Open-Box Surplus
Need a Specific Revision?
$3,231.00
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (7) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

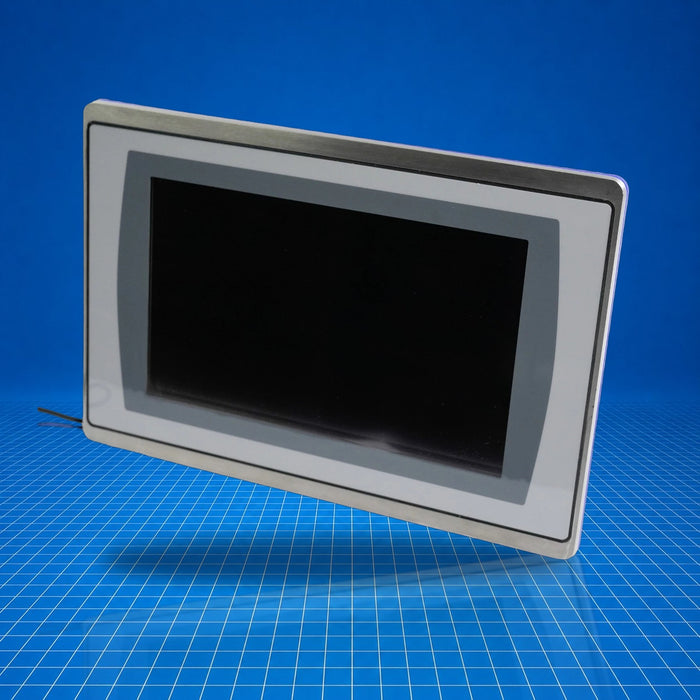

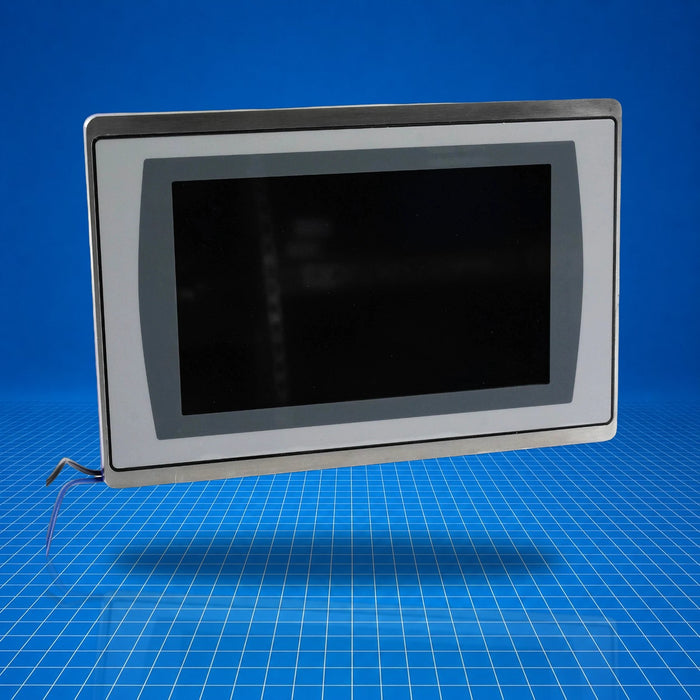

The 2711P-T9W22D9P is an Allen-Bradley PanelView Plus 7 Performance graphic terminal. This touchscreen HMI presents local or remote operator interaction via a 9-inch WVGA color display. It integrates dual Ethernet ports with Device Level Ring (DLR) support for industrial network architectures. Powered by 24 V DC (nominal), it runs either Windows CE 6.0 (Series B) or Windows 10 IoT Core (Series C). Commonly deployed for machine-level interface, batch systems, packaging equipment, and diagnostics in industrial control systems. 2711P-T9W22D9P is designed for control panels requiring data visualization and operator input.

Best Suited For

  • Machine-level operator interface
  • Panel installation in control enclosures
  • Applications requiring DLR-enabled Ethernet topology
  • Systems using Windows CE or Windows 10 IoT Core runtime
Display
9-in. WVGA color (800 × 480)
Touch interface
Analog resistive touchscreen (1 million presses, 100 g)
Power consumption
50 W max (2.1 A at 24 V DC)
Ethernet ports
2 × 10/100 Base-T, supports DLR, linear, star
USB and SD storage
2 × USB host, 1 × USB device, 1 × SD slot

Technical Specifications

I/O & Electrical

Input voltage
24 V DC nominal (18…30 V DC)
Power consumption
50 W max (2.1 A at 24 V DC)

Communication & Power

Ethernet ports
2 × 10/100 Base-T (DLR, linear, star)
USB ports
Series B: two USB 2.0 host (Type A), one USB 2.0 device (Type B)

Physical & Environmental

Display size
9-in. diagonal Viewing area: 196 × 118 mm (7.7 × 4.6 in.)
Display resolution
800 × 480 WVGA, 18-bit color (Series B)
Brightness
300 cd/m2 (nits)
Backlight life
50 000 h min to half-brightness
Touchscreen rating
Actuation rating: 1 million presses; Operating force: 100 g
Weight, approx
2.1 kg (4.6 lb)
Dimensions (H × W × D)
190 × 280 × 69.6 mm (7.48 × 11.02 × 2.74 in.)
Cutout (H × W)
162 × 252 mm (6.38 × 9.92 in.)
