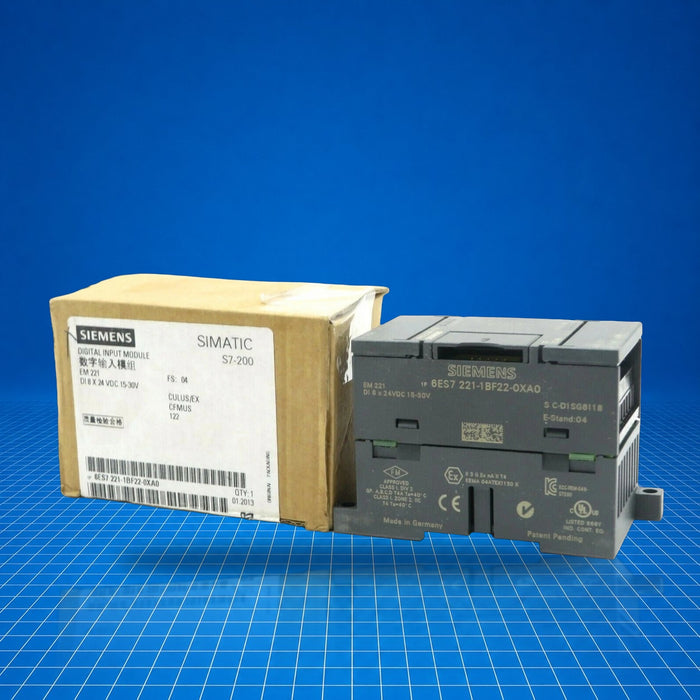

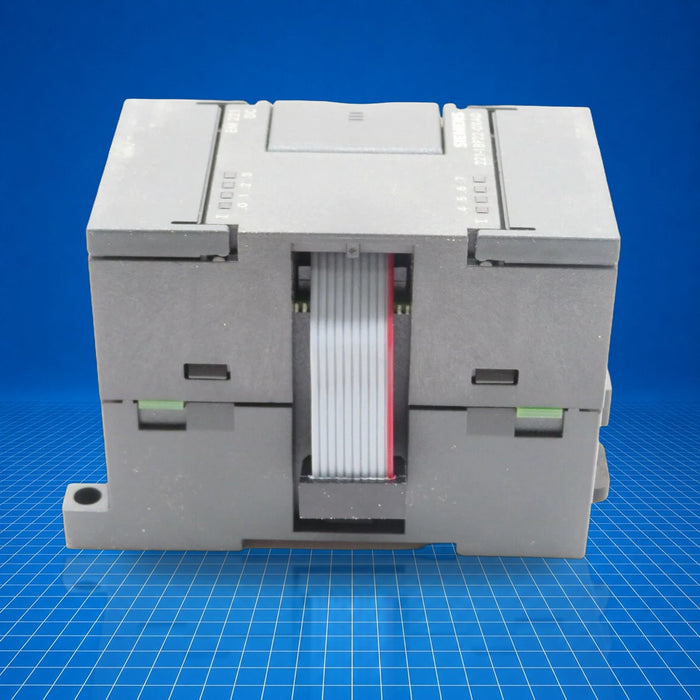

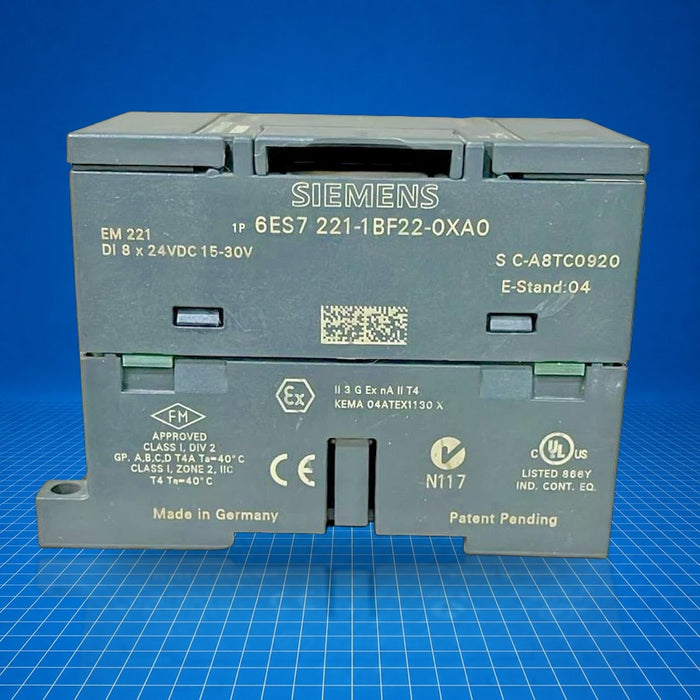

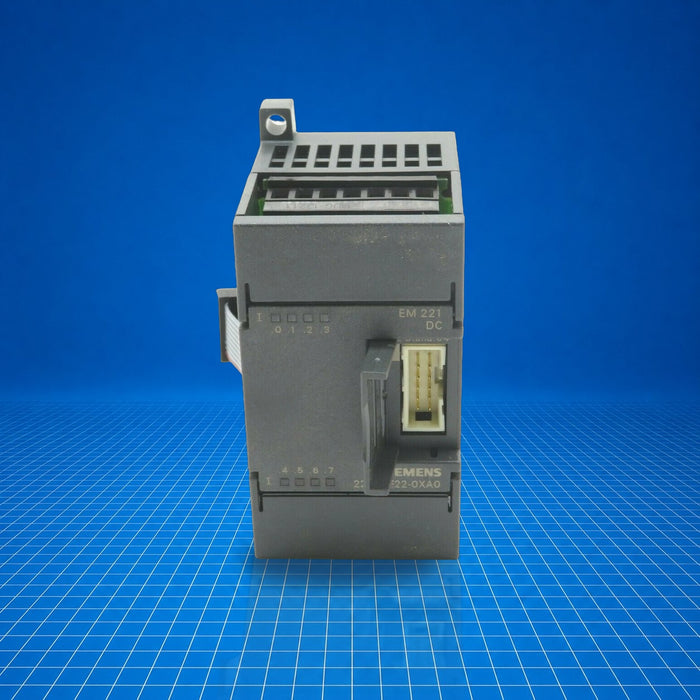

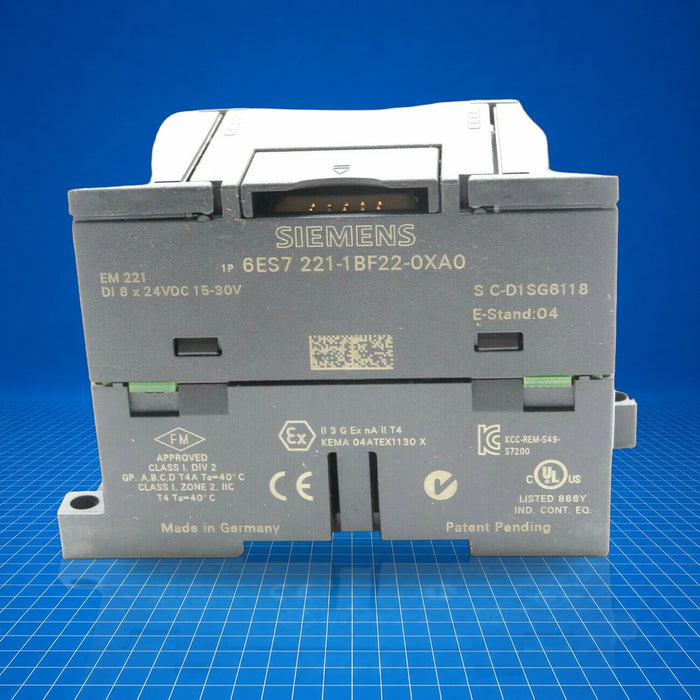

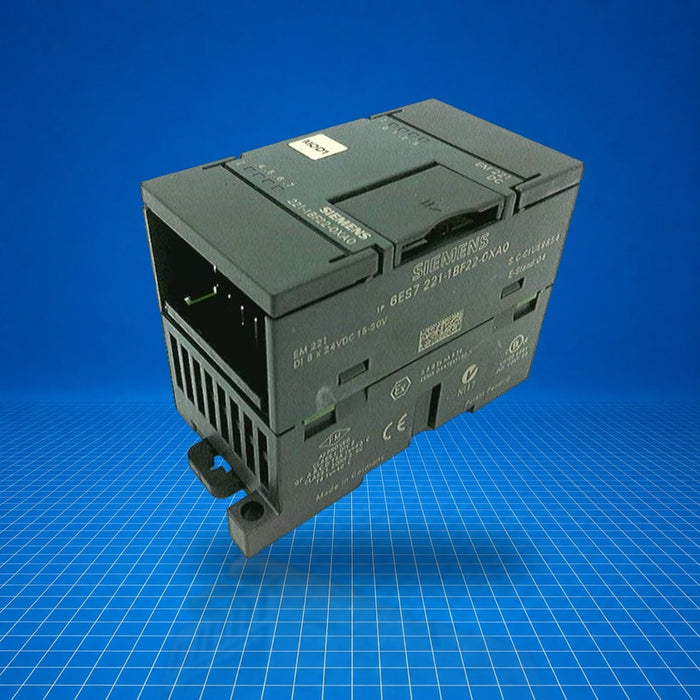

6ES7221-1BF22-0XA0 Siemens
Original price
$313.17
-
Original price
$582.00
Original price
$313.17
$313.17
-
$582.00
Current price
$313.17
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7221-1BF22-0XA0 is a SIMATIC S7-200 digital input expansion module by Siemens. It provides eight discrete digital inputs (sink/source) intended for connection to the S7-22X CPU family. The module installs on the S7-200 backplane and allows extended digital input capacity for small-scale industrial control systems such as conveyor control, machine status detection, or discrete I/O expansion in distributed automation. 6ES7221-1BF22-0XA0 is typically mounted in control cabinets alongside CPU and I/O modules.
Best Suited For
- S7-200 CPU 22x systems requiring additional digital inputs
- Discrete sensor input expansion in conveyor or material handling systems
- Remote machine-status monitoring where eight extra DI channels are needed
- Compact control panels where modular I/O expansion via backplane is prioritized
Digital Inputs
8 channels
Rated Input Voltage
24 V DC
Power Loss (typ.)
2 W
Input Current @ "1" (typ.)
4 mA
Input Delay ('0' to '1')
max. 4.5 ms
Technical Specifications
I/O & Electrical
Number of digital inputs
8
Input voltage (rated)
24 V DC
Signal "0" voltage range
0 to 5 V
Signal "1" voltage range
+15 to +30 V
Input current at "1" (typical)
4 mA
Sourcing/sinking supported
Yes
Communication & Power
Backplane bus supply 5 V DC current
max. 30 mA
Power loss (typical)
2 W
Physical & Environmental
Maximum cable length (shielded)
500 m
Maximum cable length (unshielded)
300 m
Encoder 2-wire sensor support
Yes; quiescent current max. 1 mA
Dimensions (W×H×D)
46 mm × 80 mm × 62 mm
Weight
approx. 150 g
