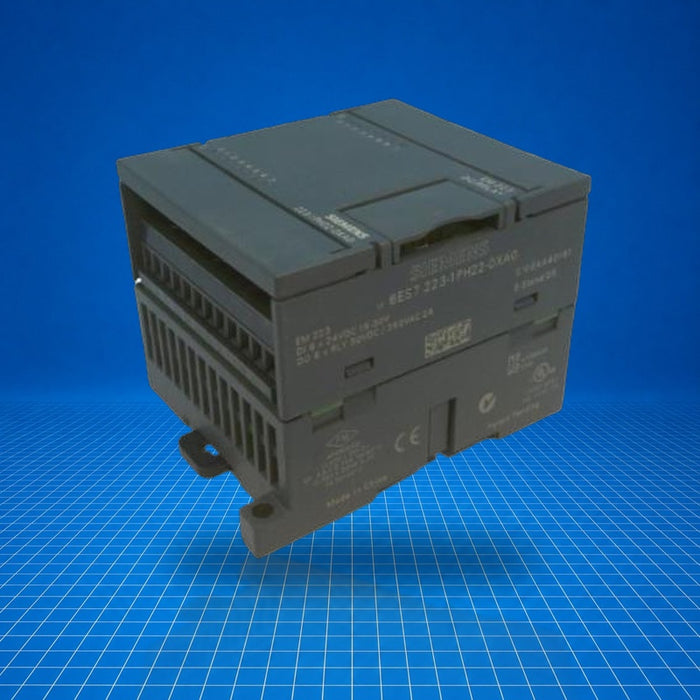

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7223-1PH22-0XA0 Siemens

Name: 6ES7223-1PH22-0XA0 Siemens
Brand: Siemens
SKU: 6ES7223-1PH22-0XA0
Price: 2793.16 USD
Availability: InStock

$0.00 - $2,793.16

$2,793.16

$0.00 - $2,793.16

$2,793.16

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (11) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6ES7223-1PH22-0XA0 module is a SIMATIC S7-200 series digital I/O expansion (EM 223) designed for use with S7-22X CPUs. It provides eight digital inputs (24 V DC, sink/source) and eight relay outputs (2 A per channel), enabling expanded discrete I/O capabilities. The module installs directly onto the S7-200 backplane and is typically deployed in machine-level control, standalone automation applications, and legacy system maintenance where additional I/O is required. Part number 6ES7223-1PH22-0XA0.

Best Suited For

Expansion of discrete I/O for S7-200 S7-22X systems
Applications requiring both sinking/source inputs and relay outputs
Machine-level control with moderate load switching
Retrofit or service replacement in existing S7-200 installations

Digital inputs

8

Digital outputs

8 (relay, 2 A each)

Supply voltage (DC)

24 V DC (5-30 V permissible)

Power loss

3 W

Weight

≈ 300 g

Technical Specifications

I/O & Electrical

Number of digital inputs

8

Input voltage (rated)

24 V DC

Input voltage range (0 signal)

0 to 5 V

Input voltage range (1 signal)

15 V to 30 V DC

Input current (1 signal, typ.)

4 mA

Input delay (0→1, max.)

4.5 ms

Number of digital outputs

8 (relay)

Output current (1 signal)

2 000 mA

Total current per group

8 A

Output voltage (0 signal, max.)

0.1 V (with 10 kΩ load)

Output voltage (1 signal, min.)

L+ / L1

Switching capacity inductive load

0.75 A

Switching capacity resistive load

0.75 A

Switching capacity lamp load

DC: 30 W; AC: 200 W

Short-circuit protection

No

Communication & Power

Supply voltage range (DC)

24 V DC (5 to 30 V)

Supply voltage range (AC)

24 to 230 V AC (5 to 250 V permissible)

Input current (external 24 V DC)

72 mA

Input current (backplane bus 5 V DC)

80 mA

Coil current (per output on "1")

9 mA

Power loss (typ.)

3 W

Physical & Environmental

Dimensions (W × H × D)

71.2 mm × 80 mm × 62 mm

Weight (approx.)

300 g

Cable length, max (shielded)

500 m

Cable length, max (unshielded)

150 m

Certifications

CCCEU-DoCUK-DoCULEAC

Module includes recognitions: CCC, EU Declaration of Conformity, UK Declaration of Conformity, UL, EAC; environmental profile conforming to Siemens EcoTech Profile.
