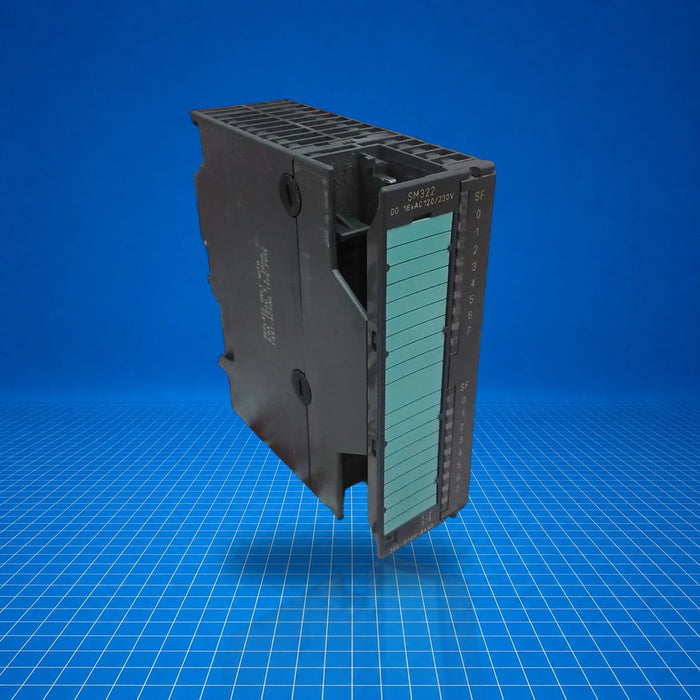

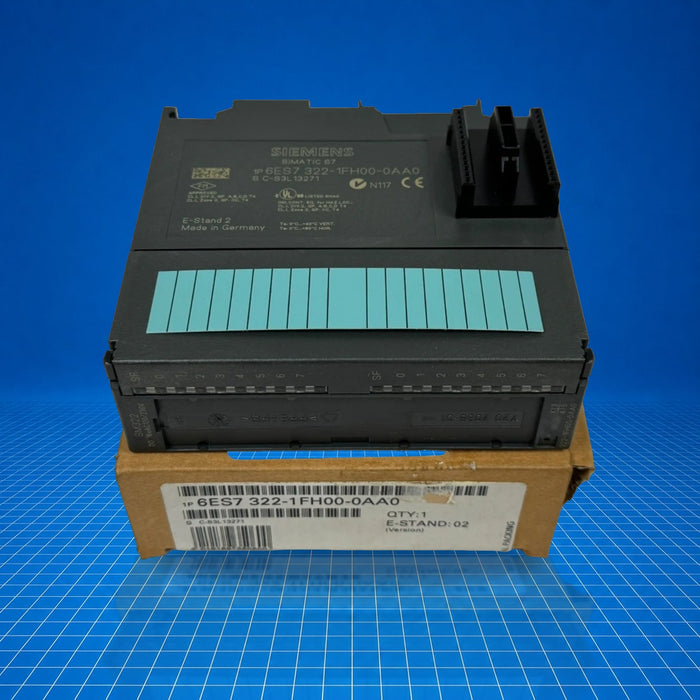

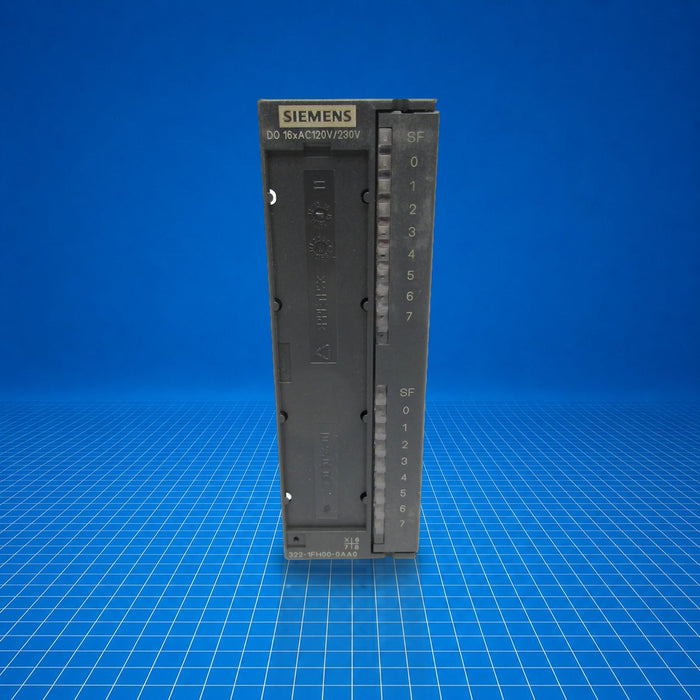

6ES7322-1FH00-0AA0 Siemens
Original price
$360.00
-
Original price
$1,522.50
Original price
$360.00
$360.00
-
$1,522.50
Current price
$360.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens part 6ES7322-1FH00-0AA0 is a SIMATIC S7-300 digital output module (SM 322), providing 16 isolated relay outputs rated for 120/230 V AC at up to 1 A each. It integrates into S7-300 I/O racks and is used to switch AC loads such as solenoids, lamps, or small motors. Typical applications include factory automation, machine control panels, and process sequencing where isolated AC outputs are required. The module supports cable runs to field devices and includes channel-level isolation and status indication. Part number 6ES7322-1FH00-0AA0 is referenced in official Siemens documentation.
Best Suited For
- Actuating AC field devices (e.g., lamps, solenoids)
- S7-300 distributed rack installations
- Control panels requiring isolated 120/230 V AC outputs
- Applications needing group-level diagnostics via LED indicators
Outputs
16 isolated relay-type, 120/230 V AC, 1 A
Power loss (typical)
8.6 W
Backplane current (max)
200 mA
Load voltage range
79 V to 264 V AC
Dimensions (W × H × D)
40 × 125 × 117 mm
Technical Specifications
I/O & Electrical
Number of digital outputs
16
Output voltage
120/230 V AC
Permissible voltage range
79 V to 264 V AC
Rated output current
1 A
Residual current ("0" signal)
≤ 2 mA
Inrush current (per group)
20 A (two half-waves)
Backplane bus current (max)
200 mA
Load voltage current (no-load)
2 mA
Communication & Power
Power loss (typical)
8.6 W
Physical & Environmental
Dimensions (W×H×D)
40 × 125 × 117 mm
Weight
approx. 275 g
