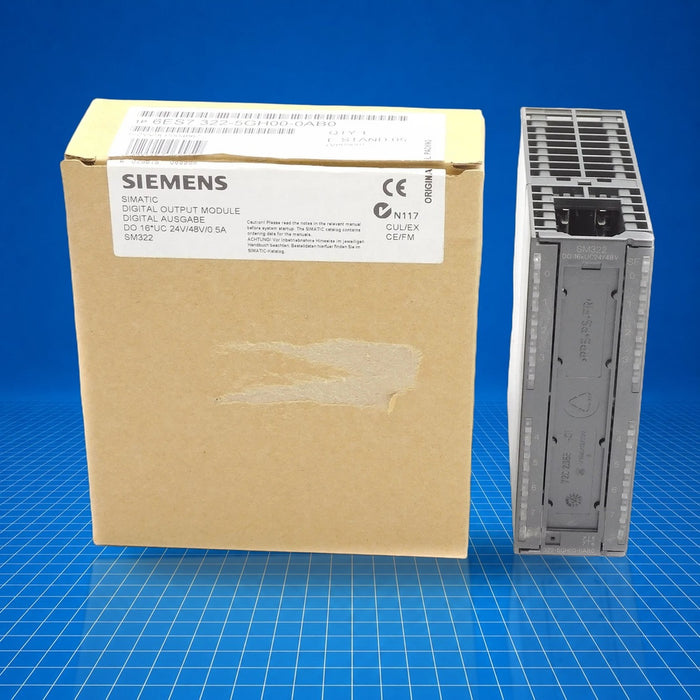

6ES7322-5GH00-0AB0 Siemens
Original price
$1,205.22
-
Original price
$1,322.50
Original price
$1,322.50
$1,205.22
-
$1,322.50
Current price
$1,322.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7322-5GH00-0AB0 is a SIMATIC S7-300 digital output module (SM 322) featuring 16 isolated semiconductor relay outputs. Designed to interface a control CPU with field actuators, it handles both 24 V and 48 V AC/DC signals. It offers independent channel operation, diagnostics for programming errors and power faults, and supports output value retention on CPU STOP. Commonly used in mid-size automation systems for actuating solenoids, motor starters, lamps, and similar devices.
Best Suited For
- Mid-size SIMATIC S7-300 control systems
- Switching AC or DC loads up to 0.5 A per channel
- Applications requiring diagnostics for power failure or program error
- Use where output isolation is required
- Situations needing output hold-last-value function on CPU STOP
Digital outputs
16 isolated semiconductor relay channels
Load voltage range
24 V/48 V AC or DC
Output current per channel
0.5 A
Channel isolation
120 V between channels
Short-circuit protection
Electronic, threshold typ. 1 A
Technical Specifications
I/O & Electrical
Load voltage
24 V/48 V AC or DC
Output current (per channel)
0.5 A
Channel isolation
120 V between channels
Communication & Power
Power dissipation (typ.)
2.8 W
Supply from backplane bus (5 V DC) max.
100 mA
Supply from L+ supply voltage max.
200 mA
Reverse-polarity protection
Yes
Physical & Environmental
Connector
20-pin front connector
Switching frequency (lamp load)
max. 10 Hz
Switching frequency (inductive load)
max. 0.5 Hz
Inductive shutdown voltage limit
typ. L+ (-53 V)
Certifications
RoHS compliantWEEE take-back
