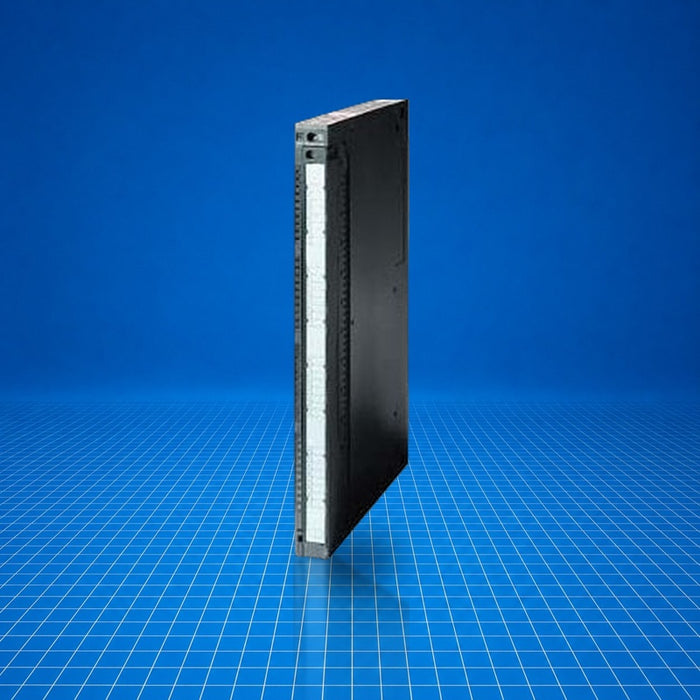

6ES7422-1HH00-0AA0 Siemens
Original price
$567.00
-
Original price
$3,060.00
Original price
$567.00
$567.00
-
$3,060.00
Current price
$567.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC S7-400 digital output module SM 422, part number 6ES7422-1HH00-0AA0, provides 16 isolated relay outputs rated for 5 A at up to 230 V AC or 60 V DC. It is designed for rack-based installation within S7-400 control systems and serves to switch high-load devices such as contactors, lamps, or motor starters. Typical use cases include industrial machinery control, process automation, and distributed control schemes requiring galvanic isolation between control logic and load circuit.
Best Suited For
- Switching high-voltage AC loads (up to 230 V AC)
- Relay-based control of motor starters up to NEMA size 5
- Industrial rack-mounted S7-400 systems
- Isolated digital output applications in process or manufacturing environments
Digital Outputs
16 relay outputs
Output Current
5 A per channel
Load Voltage (AC/DC)
230 V AC / 60 V DC
Power Loss (typ.)
4.5 W
Weight
≈ 700 g
Technical Specifications
I/O & Electrical
Load voltage (DC) rated
60 V
Load voltage (DC) permissible range
1 V…60 V
Load voltage (AC) rated
230 V
Load voltage (AC) permissible range
2 V…264 V
Number of digital outputs
16
Output current (signal "1" rated)
5 A
Output current minimum (signal "1")
11 mA
Switching capacity (lamp load max)
60 W
Switching frequency (resistive load max)
10 Hz
Switching frequency (inductive load max)
1 Hz
Switching frequency (lamp load max)
1 Hz
Switching frequency (mechanical max)
20 Hz
Total current per group up to 40 °C
10 A (10 A with fan subassembly)
Total current per group up to 60 °C
5 A (10 A with fan subassembly)
Communication & Power
Backplane bus input current (5 V DC)
1 A
Power dissipation (typical)
4.5 W
Physical & Environmental
Dimensions (W×H×D)
25 × 290 × 210 mm
Weight
≈ 700 g
