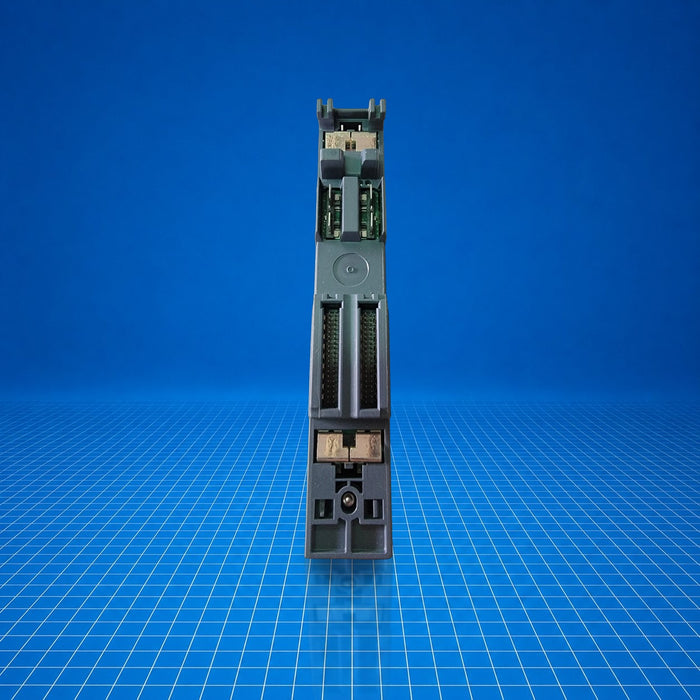

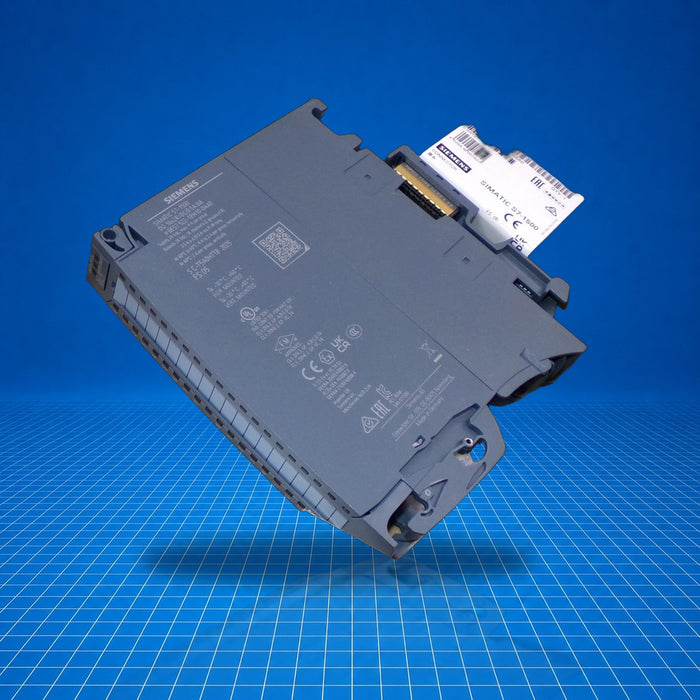

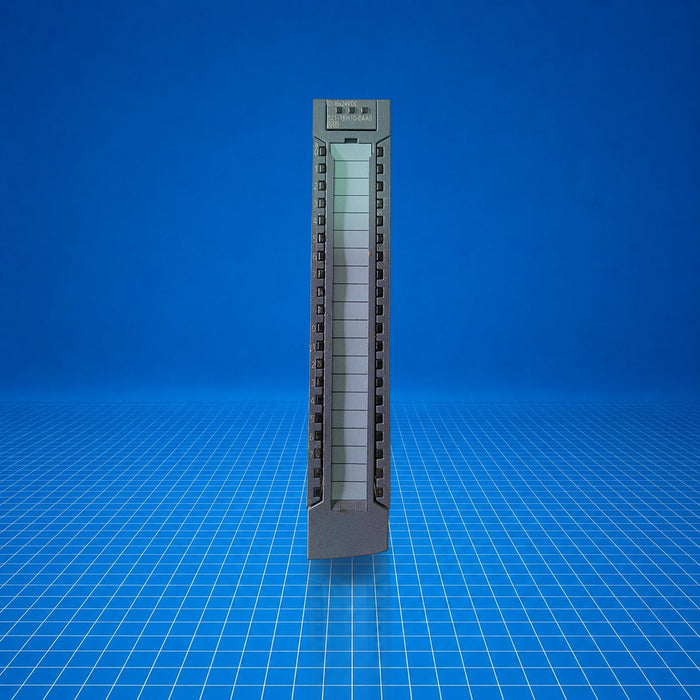

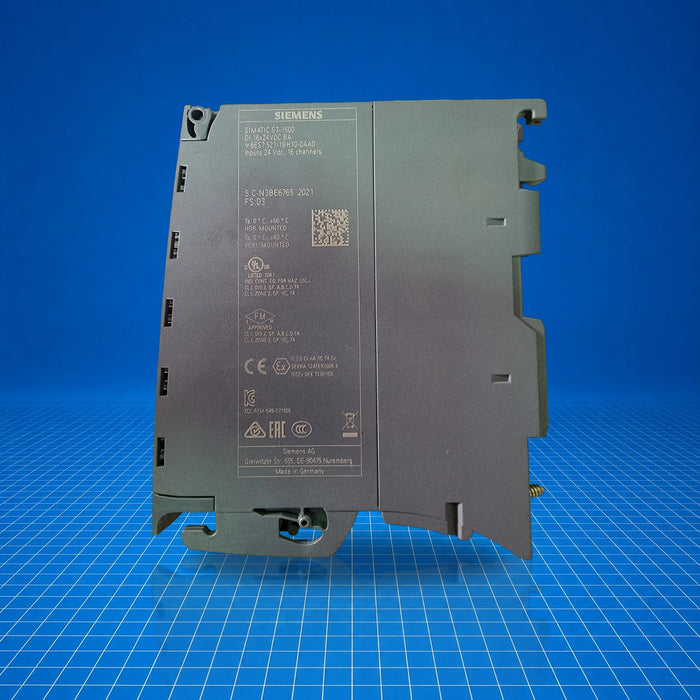

6ES7522-1BH10-0AA0 Siemens
Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7522-1BH10-0AA0 Siemens

$400.00 - $687.47
$400.00
$400.00 - $687.47
$400.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$400.00
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$687.47
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 6ES7522-1BH10-0AA0 is a SIMATIC S7-1500 digital output module (DQ16×DC 24 V/0.5 A BA) designed to interface a PLC system with field-level devices. It provides 16 transistor-type digital outputs arranged in two groups of eight channels each. Built for industrial automation, it is used for driving solenoids, DC contactors, indicator lights, and similar DC loads. The module supports safety-oriented shutdown of load groups up to SIL 2 under EN IEC 62061:2021 and Performance Level d / Category 3 (EN ISO 13849-1:2015), and integrates into S7-1500 racks with standard front-connector push-in terminals.

Best Suited For

  • Actuation of solenoid valves and DC contactors
  • Indicator light and lamp control
  • Applications requiring safety-oriented load group shutdown (SIL 2 / PL d)
  • Integration with SIMATIC S7-1500 systems in industrial control
Digital outputs
16 channels (transistor)
Output current per channel
0.5 A
Safety-oriented shutdown
SIL 2 / PL d
Supply voltage
24 V DC
Backplane power consumption
1.1 W

Technical Specifications

I/O & Electrical

Number of digital outputs
16
Type of digital output
Transistor (current-sourcing)
Rated output voltage
24 V DC
Output current per channel, max.
0.5 A
Total current per group, max.
4 A
Total current per module, max.
8 A
Reverse polarity protection
Yes; internal protection with 7 A per group
Short-circuit protection
Yes; clocked electronically; response threshold typ. 1 A
Switching capacity resistive load, max.
0.5 A
Lamp load, max.
5 W

Communication & Power

Power consumption from backplane bus
1.1 W
Power loss, typ.
2 W
Current consumption, max.
30 mA
Firmware update possible
Yes
I&M data support
Yes; I&M0 to I&M3
Compatible with STEP 7 TIA Portal from
V13 SP1 (PROFINET) / V5.5 SP3 (others)

Physical & Environmental

Ambient temperature (horizontal installation)
-30 °C to 60 °C
Ambient temperature (vertical installation)
-30 °C to 40 °C
Installation altitude, max.
5 000 m
Dimensions (W×H×D)
35 mm × 147 mm × 129 mm
Weight, approx.
230 g
Isolation test voltage
707 V DC

Certifications

CEULUK DoCChina RoHSKCRCMEACFM
