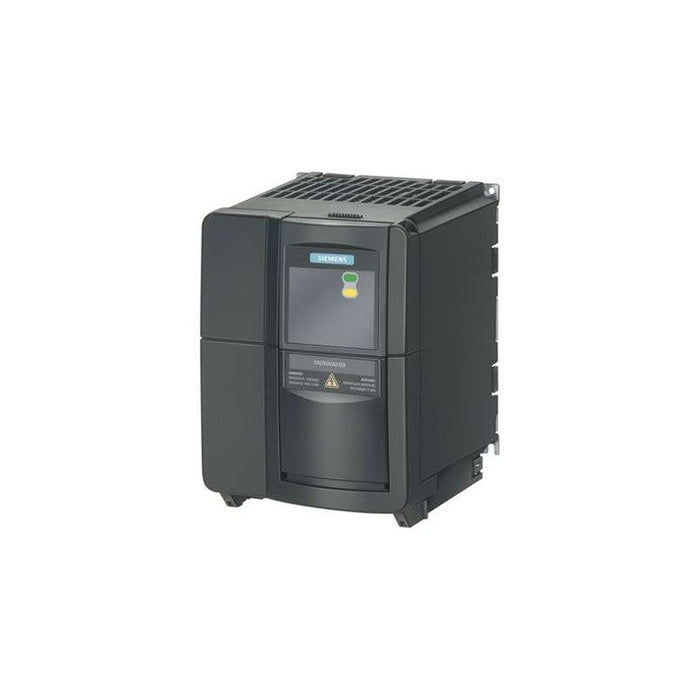

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SE6440-2UD22-2BA1 Siemens
Original price
$0.00
-
Original price
$762.41
Original price
$762.41
$0.00
-
$762.41
Current price
$762.41
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens MICROMASTER 440 drive, part number 6SE6440-2UD22-2BA1, is an AC motor control module in the MICROMASTER 440 family. It regulates three-phase squirrel-cage motors using V/f, sensorless vector, torque, and flux control modes. It supports motor power up to 2.2 kW (3.0 hp) and is suited for variable-speed drive tasks in conveyor systems, pumps, fans, mixers, or machine tools. It provides both analog and digital I/O for control and feedback, and mounts in an IP20 enclosure, typically within control panels.
Best Suited For
- Variable-speed AC motor control up to 2.2 kW (3.0 hp)
- Pump, fan, conveyor or mixer drive control
- Sensorless vector or V/f control applications
- Retrofitting or replacement in MICROMASTER 440 installations
Motor power rating
2.2 kW (3.0 hp)
Voltage supply
3-phase 380 V…480 V ±10 %
IP rating
IP20
Ambient temperature range
-10 °C … +50 °C
Output current (CT mode)
5.9 A peak / 5.0 A input
Technical Specifications
I/O & Electrical
Standard digital inputs
6
Relay outputs
3
Analog inputs
2
Analog outputs
2
PTC/KTY interface
1
Communication & Power
Control functionalities
V/f (linear, quadratic), FCC, vector (sensorless, torque control)
Voltage supply
3 AC 380 V - 480 V ± 10 %
Frequency input range
47 - 63 Hz
Output frequency
0 - 650 Hz
Overload capacity (CT mode)
1.5× for 60 s; 2× for 3 s
Physical & Environmental
Degree of protection
IP20 / UL open type
Dimensions (W × H × D)
149.0 mm × 202.0 mm × 172.0 mm
Weight
3.3 kg
Ambient temperature
-10 °C … +50 °C
