6SL3210-1KE22-6UF1 Siemens-Siemens-Never Used Surplus-PLC Department
Product image is representative; revision or series may vary.
Contact us to request a specific version.

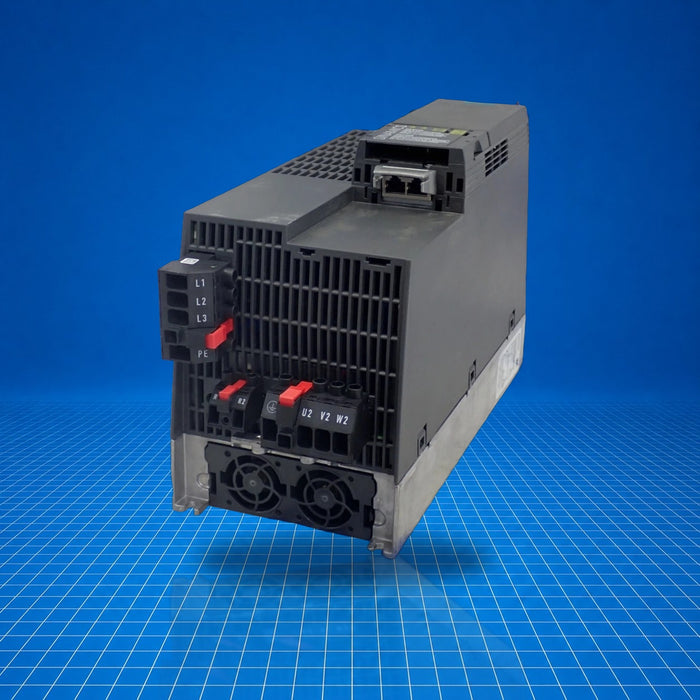

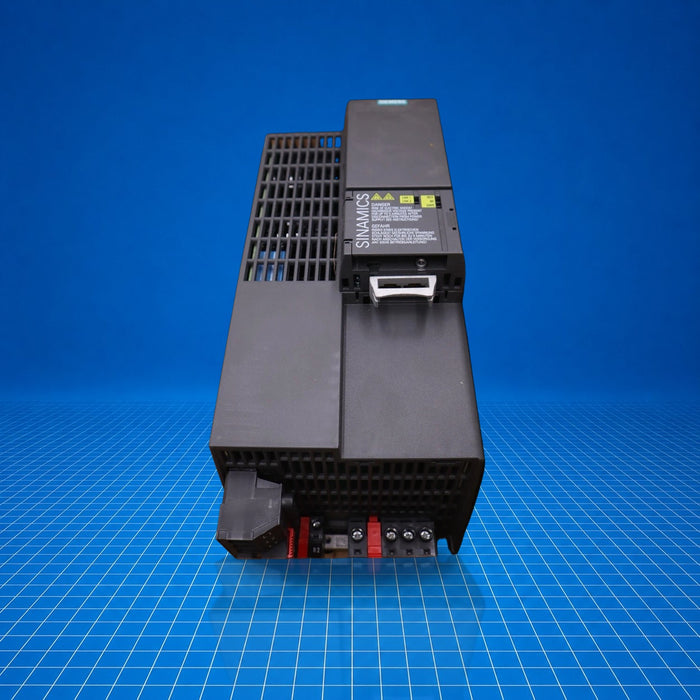

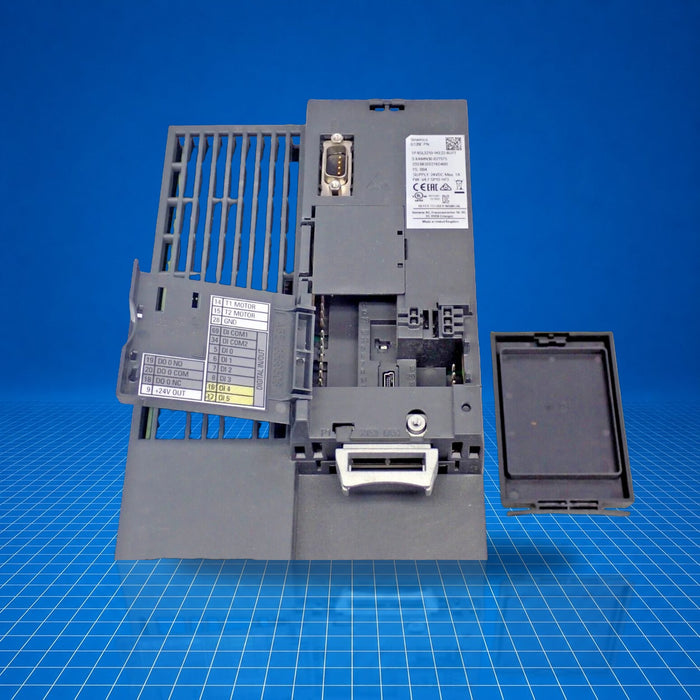

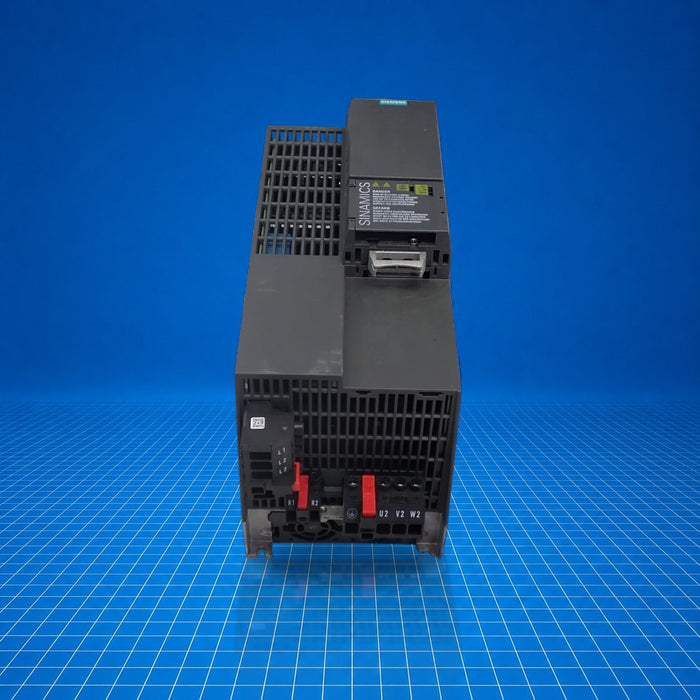

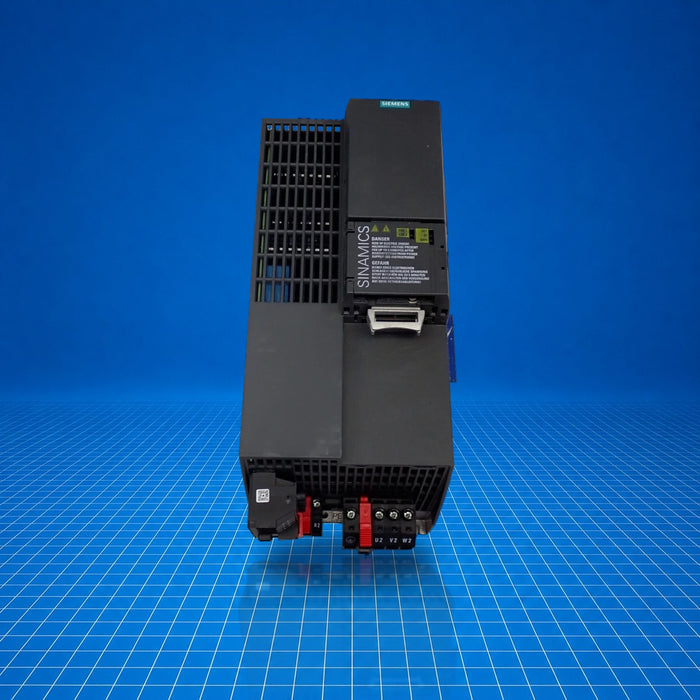

6SL3210-1KE22-6UF1 Siemens

$1,375.00 - $2,437.75
$1,375.00
$1,375.00 - $2,437.75
$1,375.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,375.00
5 in stock
New / Open-Box Surplus
Need a Specific Revision?
$2,437.75
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens part number 6SL3210-1KE22-6UF1 is a SINAMICS G120C compact AC drive. It functions as a three-phase motor inverter, converting 380…480 V AC input into controlled motor output. It supports fieldbus connectivity via integrated PROFINET (and EtherNet/IP per technical data) and includes built-in Safe Torque Off (STO). This drive is typically deployed for general-purpose motor control in industrial machinery, conveyors, fans or pumps where space-efficient and flexible drive performance is required.

Best Suited For

  • General-purpose motor control (fans, pumps, conveyors)
  • Applications requiring Safe Torque Off (STO)
  • PROFINET or EtherNet/IP network integration
  • Space-constrained cabinet installations
Rated power (LO/HO)
11 kW / 7.5 kW
Max. output current
33 A
Fieldbus protocol
PROFINET, EtherNet/IP
Degree of protection
IP20 / UL open type
Frame size & weight
FSC; 4.40 kg

Technical Specifications

I/O & Electrical

Input voltage
380 ... 480 V +10 % / -20 % AC (3-phase)
Line frequency
47 ... 63 Hz
Rated current (LO)
33.00 A
Rated current (HO)
24.10 A
Max. output current
33.00 A
Rated power (LO)
11.00 kW / 15.00 hp
Rated power (HO)
7.50 kW / 10.00 hp
Output frequency (vector)
0 ... 240 Hz
Output frequency (V/f)
0 ... 550 Hz
Pulse frequency
4 kHz
Digital inputs
6 standard DI
Fail-safe DI
1
Digital outputs
1 relay changeover + 1 transistor, each DC 30 V, 0.5 A
Analog input
1 differential input, 10-bit
Analog output
1 non-isolated
Motor temperature sensor input
1 (PTC, KTY, Thermo-Click), ±5 °C accuracy

Communication & Power

Communication
PROFINET, EtherNet/IP
Power factor (λ)
0.70 ... 0.85
Offset factor (cos φ)
0.95
Efficiency
0.97
Power loss
298.0 W
Filter class
Integrated, Class A
Sound pressure level (1 m)
66 dB

Physical & Environmental

Degree of protection
IP20 / UL open type
Frame size
FSC
Weight
4.40 kg (9.70 lb)
Dimensions (HxWxD)
295 × 140 × 205 mm (11.61 × 5.51 × 8.19 in)
Ambient temperature (operation)
-10 ... 40 °C (14 ... 104 °F)
Ambient temperature (transport)
-40 ... 70 °C (-40 ... 158 °F)
Ambient temperature (storage)
-25 ... 55 °C (-13 ... 131 °F)
Relative humidity
Max. 95 % at 40 °C, no condensation or icing
Cooling
Air cooling using integrated fan
Cooling air requirement
0.018 m³/s (0.636 ft³/s)
Installation altitude
≤ 1,000 m (3,280 ft)

Certifications

CEULcULKCEACRCM

Complies with CE, cUL, UL, KC, EAC, C-Tick (RCM); CE marking under EMC Directive 2004/108/EC and Low-Voltage Directive 2006/95/EC.
