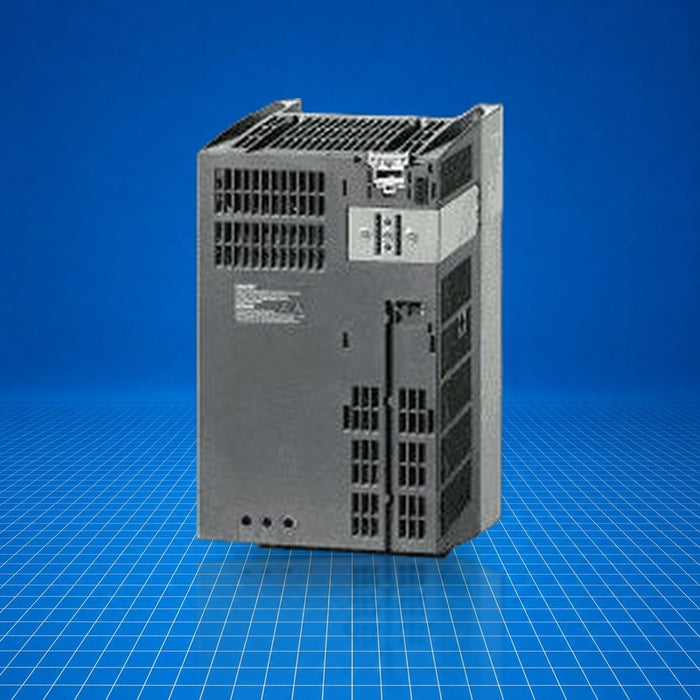

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

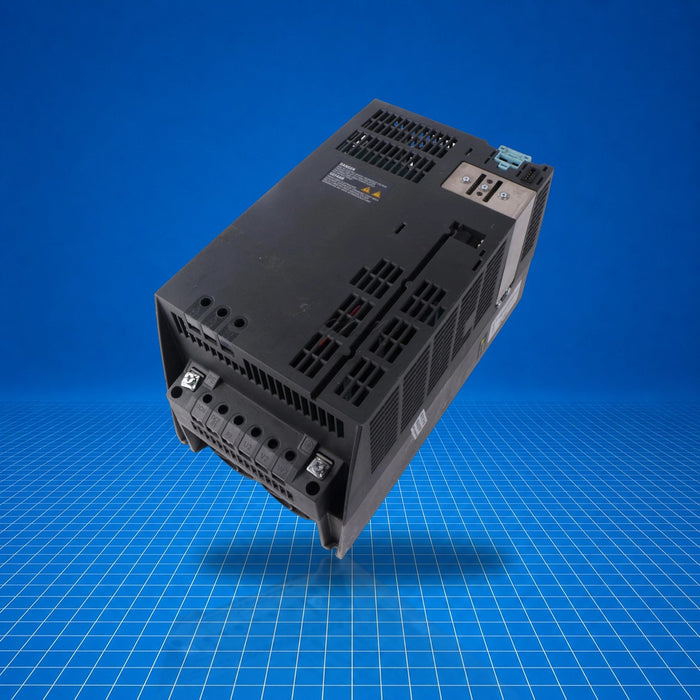

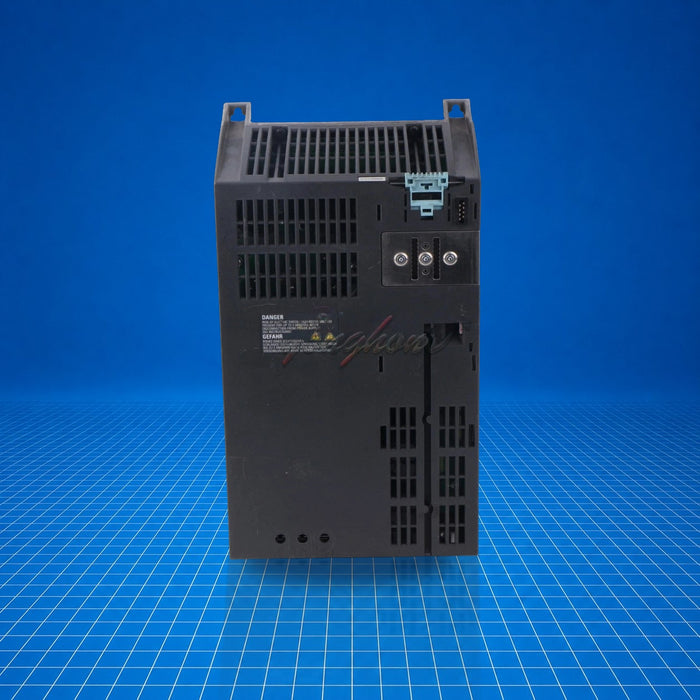

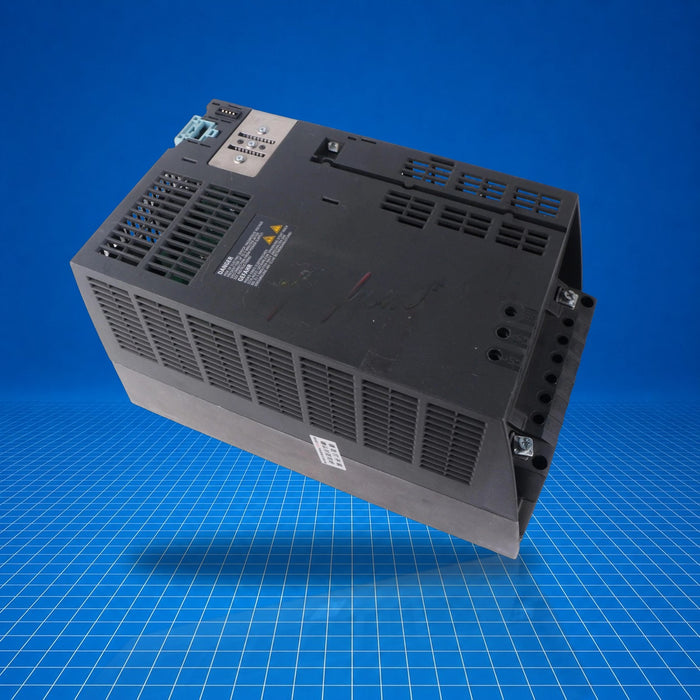

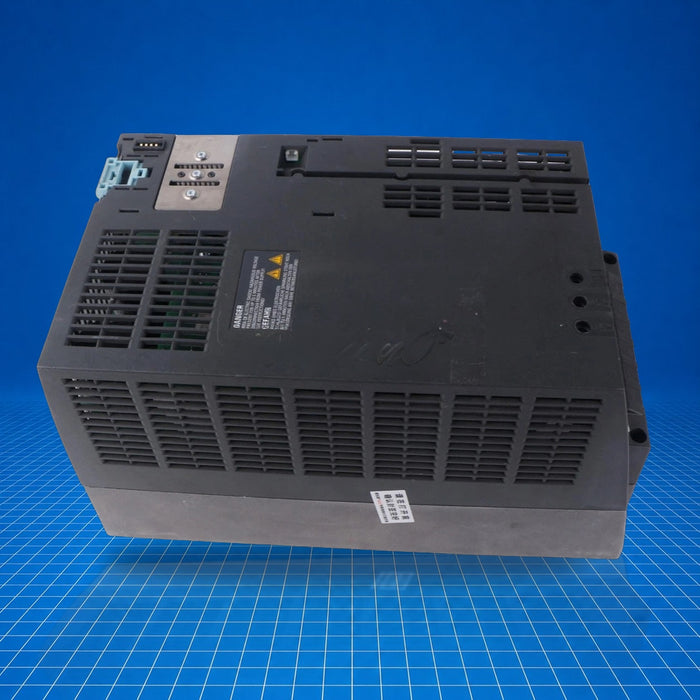

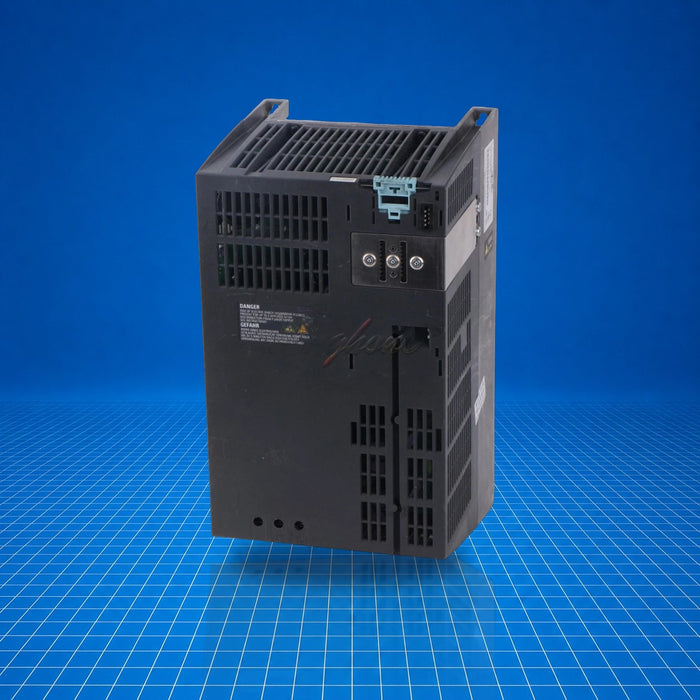

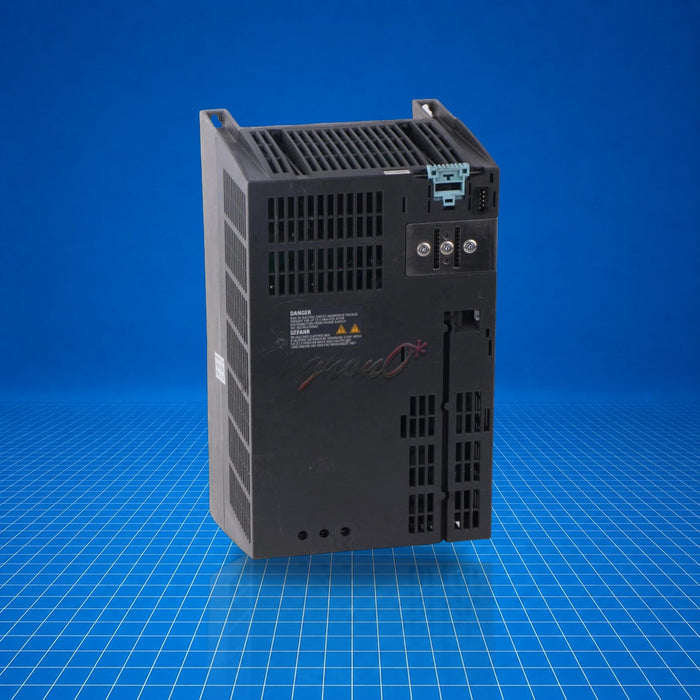

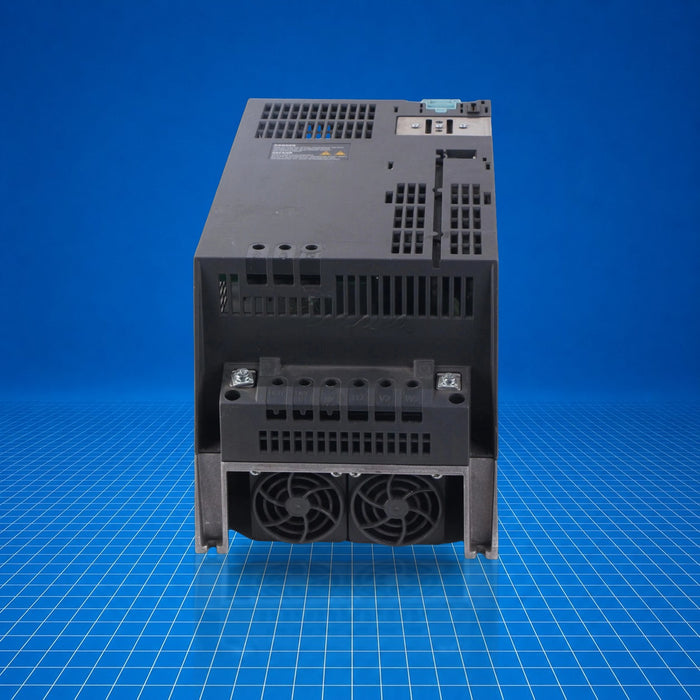

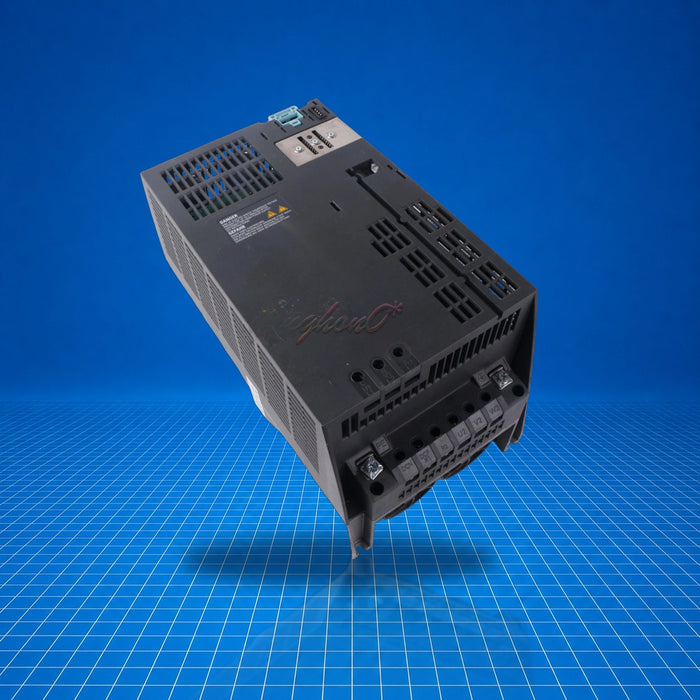

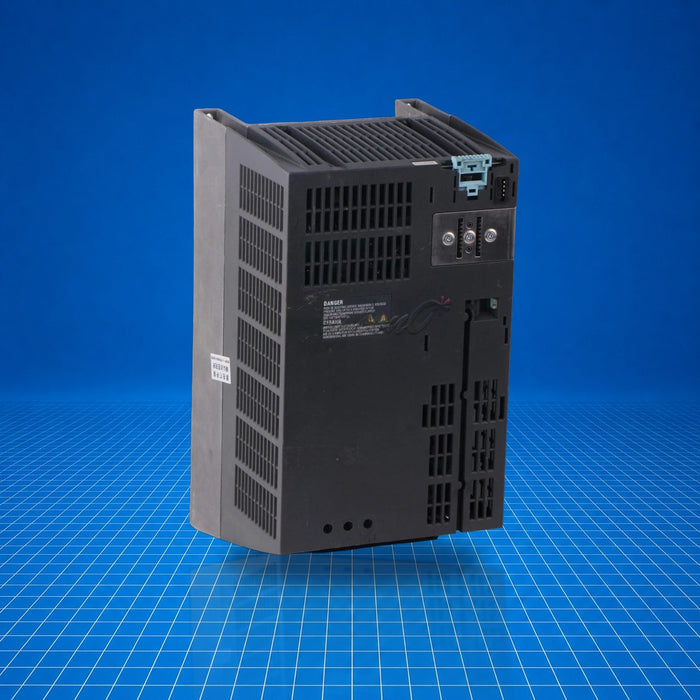

6SL3210-1SE22-5UA0 Siemens
Original price
$0.00
-
Original price
$1,421.95
Original price
$1,421.95
$0.00
-
$1,421.95
Current price
$1,421.95
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3210-1SE22-5UA0 is a Siemens SINAMICS S120 PM340 converter power module within the PM340 block-size platform. It functions as a servo drive power module in multi-axis motion control systems, converting three-phase AC input into controlled motor output current. In control architectures, it integrates with an SINAMICS control unit (CU) to manage motor velocity and torque. This module is typically used in applications such as machine tool axes, robotics, packaging machinery, and general motion-intensive industrial equipment. Part number 6SL3210-1SE22-5UA0 is referenced twice here.
Best Suited For
- Multi-axis servo drive systems
- Robotics and machine tool applications
- Packaging and material handling machinery
- High-precision motion control tasks
Input voltage range
3-ph 380 V to 480 V AC ±10 %
Rated output current
25 A
Peak output current (Imax)
38 A
Rated power
11 kW
Frame size
FSC
Technical Specifications
I/O & Electrical
Rated output current (In)
25 A
Base-load current (IH)
21 A
Output current for S6 duty (40 %)
27.8 A
Max. output current (Imax)
38 A
Rated power based on In
11 kW
Rated power based on IH
7.5 kW
Rated input current (without/with line reactor)
24.6 A / 32.6 A
Communication & Power
Line supply voltage
3-ph 380 V to 480 V AC ±10 %
24 V DC supply for the control unit
1.0 A
Rated pulse frequency
4 kHz
Power loss
0.30 kW
Physical & Environmental
Cooling air requirement
0.038 m³/s
Sound pressure level (1 m)
< 60 dB(A)
