20BD125A3ANNAND0 Allen-Bradley
Original price
$0.00
-
Original price
$16,675.00
Original price
$16,675.00
$0.00
-
$16,675.00
Current price
$16,675.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

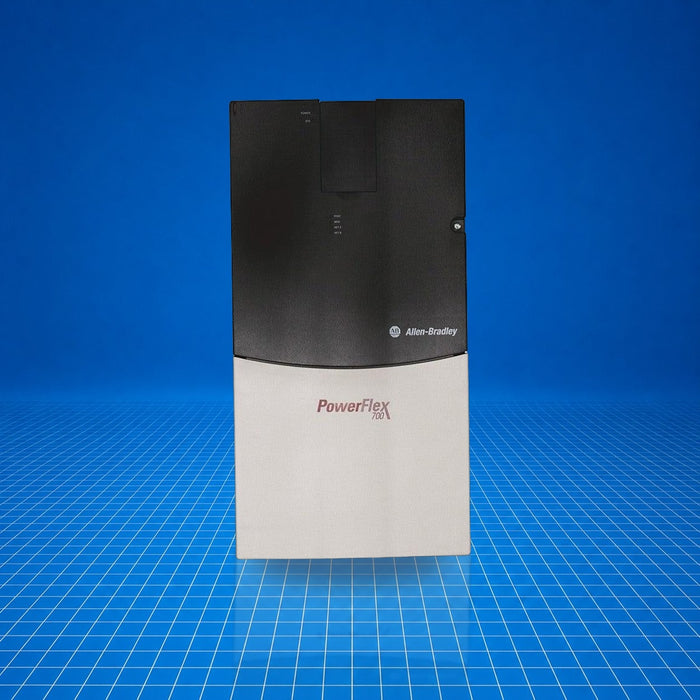

The 20BD125A3ANNAND0 is an Allen-Bradley PowerFlex 700 AC Drive in the PowerFlex 700 family. This variable frequency drive controls three-phase induction motors in industrial systems, providing vector control and protective functions. It is commonly used in motor control centers, conveyor systems, pumps, fans, and machine tool applications requiring adjustable speed and load management. 20BD125A3ANNAND0 implements standard control features and supports networked industrial applications.
Best Suited For
- Control of 100 HP (≈75 kW) three-phase motors at 480 V
- On-machine motor speed and torque control
- Installation in IP20/NEMA Type 1 industrial panels
- Systems requiring DeviceNet or EtherNet/IP connectivity
- Applications needing programmable acceleration/deceleration and current limiting
Nominal input voltage
480 V AC, 3-phase
Output current (continuous)
96 A (3-phase heavy duty)
Enclosure rating
IP20 / NEMA Type 1
Communications
DeviceNet and EtherNet/IP support
Carrier frequency options
2, 4, 8, 10 kHz
Technical Specifications
I/O & Electrical
Input voltage
480 V AC, 3-phase, 60 Hz
Output current (continuous)
96 A @ 480 V AC, 3-phase, heavy duty
Output current (1 min)
144 A @ 480 V AC, 3-phase, heavy duty
Output current (3 sec)
168 A @ 480 V AC, 3-phase, heavy duty
Input current rating
90.1 A @ 480 V AC, 3-phase
Communication & Power
Internal communication module
DeviceNet; EtherNet/IP supported
Carrier frequency
2, 4, 8, 10 kHz (rated at 4 kHz)
Control logic ride-thru
0.5 s minimum, 2 s typical
Physical & Environmental
Enclosure type
IP20 / NEMA Type 1
Operating temperature
0…50 °C
Storage temperature
-40 °C
Relative humidity
5…95 % non-condensing
Shock
15 G peak for 11 ms
Vibration
0.152 mm displacement, 1 G peak
